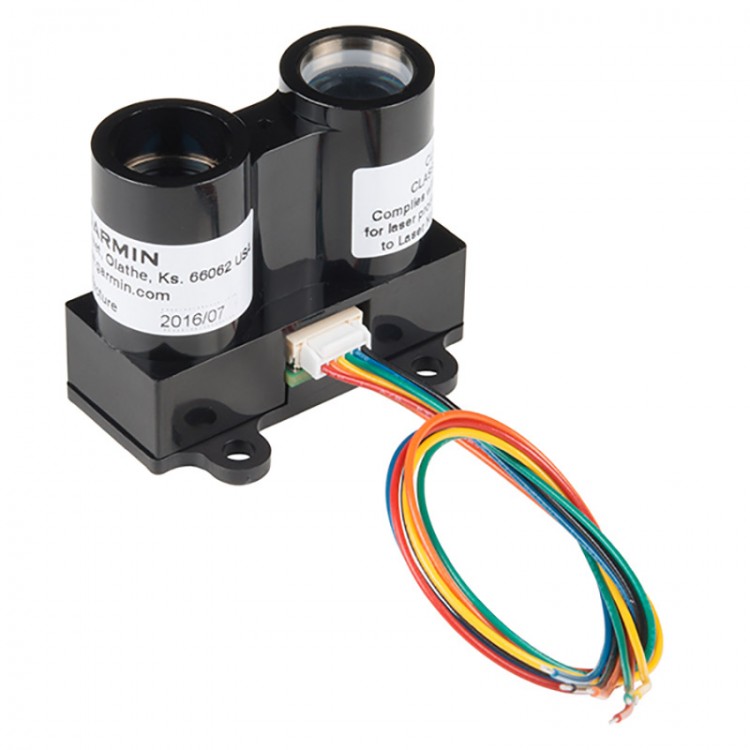

LIDAR Lite V3 Laser Sensor Optical Distance Measuring Lidar Range Finder 40m for Pixhawk Drone

LIDAR Lite V3 Laser Sensor Optical Distance Measuring Lidar Range Finder 40m for Pixhawk Drone

Description:
-LIDAR Lite V3 is a highly integrated, high-performance optical ranging module that can be used in applications such as drones, robots, or unmanned vehicles which require high reliability and powerful functions, and is ultra-small in size. Equipped with standard I2C and PWM interface, it can detect up to 40 meters distance. The modified signal processing scheme increases the measurement speed by 5 times.
-With the implementation of a new signal processing architecture, LIDAR-Lite 3 will now run at a speed of up to 500 readings per second to provide higher resolution measurements for scanning applications.
-High performance, low cost, small size, light weight, low power consumption, and dynamically configurable together with I2C communication and processing. The combination device found in LIDAR-Lite, it becomes a practical project to install multiple sensors on Minimal weight and power loss. The beam width of LIDAR-Lite is 0.5°. This narrow beam provides long-range performance while also allowing better target selectivity than ultrasonic sensors.

Specification:
Range: 0-40m
Power: 4.7-5.5V, maximum 6V DC
Current consumption: <100mA, continuous operation
Acquisition time: less than 0.02 seconds
Repetition rate: adjustable from 1 to 500 Hz
Interface: I2C or PWM
Module size: 20 x 48 x 40 mm
PCB size: 44.5mm x 16.5mm
Module weight: 16g (with optics and housing)
PCB weight: 4.5g

Features:
-Faster, more accurate and more powerful than LIDAR-Lite V2
-Compact 48mmx20mmx40m 40m measuring range
-Improved signal processing and measurement speed increased by 5 times
-Improved I2C communication and allocation of I2C addresses
-Meet drones, robots, and other demanding applications
-I2C communication rate 100kbits/s or 400kbits/s

Advantages:
-The edge emission characteristics of LIDAR Lite, 905nm (75um, 1 watt, 4 mrad, 14mm optic) single stripe laser transmitter surface mount package.
-LIDAR Lite V2 power supply is 4.7-5.5V DC, maximum 6V DC, continuous working current <100mA, and most importantly, LIDAR Lite sampling only takes 0.02 seconds.
-The beam width is 0.5°, this narrow beam provides long-distance performance and has better target selectivity than ultrasonic sensors.

Application:
-Car blind spot detection
-Smart city traffic monitoring
-3D image scanning
-Collision avoidance
-Industrial fluid/particle/solid level measurement
-Security system composition
-Musical instrument
-Medical imaging
-Aerospace and more

Package List:
1 x Laser Sensor

Note:
LIDAR Lite V3 is designed to be Class 1 during all operations. However, when operating LIDAR Lite V3, without optical or cover protection, the laser radiation range is directly exposed, which may cause permanent eye damage. Avoid looking directly at the laser transmitter under any circumstances.
