LightMate Area 2S + OV-X1 Silver 17° Digital Exposure Meter Light Meter & Viewfinder for Zone System

LightMate Area 2S + OV-X1 Silver 17° Digital Exposure Meter Light Meter & Viewfinder for Zone System

Installation Requirements:
1. Your camera supports manual and independent control of aperture and shutter speed.
2. The camera comes with a shoe mount interface.

Description:

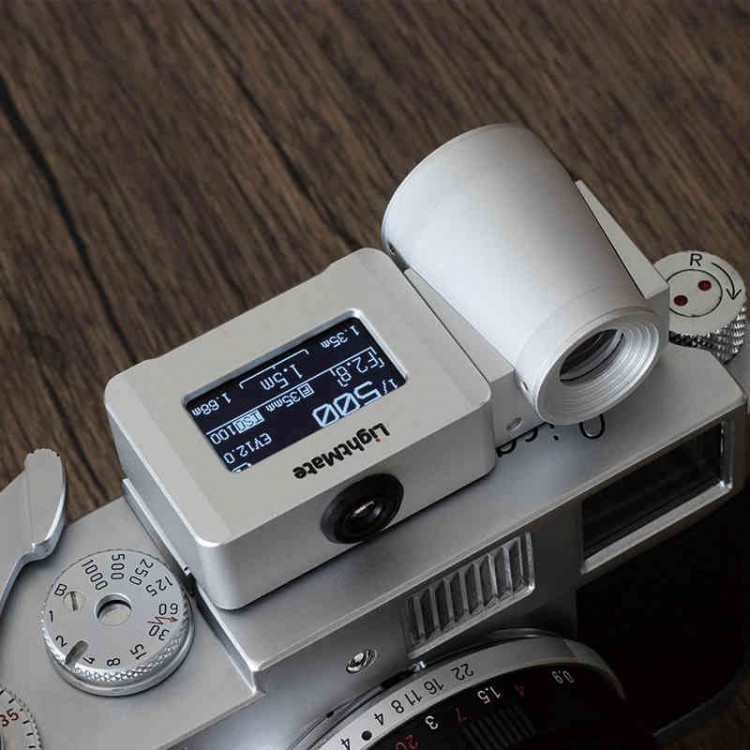

The LightMate Area 2S is a 17° light meter with a detachable optical metering viewfinder. The 17° metering angle provides a near spot meter experience. With the metering viewfinder, the LightMate Area 2S is able to quickly and precisely aim at the subject for more accurate metering.

Advantages of The LightMate Area 2S:
* Magnetic filter interface is added. It can install filters such as incident light spheres
* Anti-loosening ball for shoe mount has been updated to the 2nd generation
* The metering button has been updated from a two-stage to a simpler and easier-to-use single-stage button
* VfPort has been added for attaching accessories such as a metering viewfinder to improve the accuracy of the metering area
* Shell material: Aluminum alloy
* The warranty of the main unit is one year

Basic Functions:
1. Push dial: Press the dial to switch between shutter priority and aperture priority. Long press the dial to enter ISO settings/system settings
2. Single-trigger metering, automatic-trigger metering and average metering
3. Aperture priority and shutter priority modes
4. Exposure compensation function: step value +/-0.5EV, and the range is -2EV to +2EV)
5. Metering over-range indication: when the lower limit is exceeded, it will indicate ER.u which means Error Underexposure. And when the upper limit is exceeded, it will indicate ER.o which means Error Overexposure
6. Reciprocity law in automatic exposure combination: Quickly get multiple exposure combinations with the same exposure amount)
7. LED light indicates that the metering is complete (you can also get the indication of the metering completion in sunlight)
8. Set and save exposure parameters
9. Real-time display of remaining power
10. Customize the automatic-shutdown time (by default, the screen will turn off without operation in 30 seconds - > 2 minutes later, it will automatically shut down. All of these can be modified in settings)
11. Customize screen brightness adjustment (avoid screen brightness affecting shooting and imaging when long exposure in dark environment)
12. Flip screen display (suitable for 35mm film cameras for Rollei and other cameras with shoe mounts at the bottom)
13. Built-in rechargeable battery: Use a USB-C cable to charge the battery

Advanced Functions:
1. Digital depth of field scale: Quickly get depth of field information, and switch between the lens system (full, medium, large and half-frame) and lens focal length
2. Digital ND filter function: compensates for the ND filter installed on your camera lens
3. Switch between the classic digital dial and the classic dial interface: The dials have different functions and emphases. Under the classic dial, you can get 3 sets of exposure combinations

Supported ISO Stops:
1, 2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25, 32, 40, 50, 64, 80, 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000

Supported Aperture Stops:
F1, F1.1, F1.2, F1.3, F1.4, F1.5, F1.6, F1.7, F1.8, F1.9, F2, F2.2, F2.4, F2.5, F2.6, F2.8, F3, F3.2, F3.5, F3.7, F4, F4.5, F5, F5.2, F5.6, F6.3, F6.7, F7.1, F8, F9, F10, F11, F12, F13, F14, F15, F16, F17, F18, F19, F20, F21, F22, F25, F27, F29, F32, F36, F40, F45, F50, F55, F60, F64

Supported Shutter Stops:
1/8000, 1/6400, 1/5000, 1/4000, 1/3200, 1/2500, 1/2000, 1/1600, 1/1250, 1/1000, 1/800, 1/640, 1/500, 1/400, 1/320, 1/250, 1/200, 1/160, 1/125, 1/100, 1/80, 1/60, 1/50, 1/40, 1/30, 1/25, 1/20, 1/15, 1/13, 1/10, 1/8, 1/6, 1/5, 1/4, 1/3, 1/2, 1s~60s (1 second step)

Exposure Compensation Stops:
-2, -1.5, -1.0, -0.5, 0, +0.5, +1.0, +1.5, +2.0

Supported ND Filter Compensation Stops:
ND2, ND4, ND8, ND16, ND32, ND64, ND128, ND256, ND512, ND1000

Supported Lens Systems (for digital DoF scale):
* Full frame
* Half frame, APS-C
* Medium format: 645, 660, 670, 680, 690, 612, 617, 624
* Large format: 2x3, 4x5, 4x10, 5x7, 5x12, 7x11, 8x6, 8x10, 8x20, 11x14, 12x20, 14x17, 16x20, 20x24

Supported Distance Stops (for digital DoF scale):
0.1m, 0.2m, 0.3m, 0.4m, 0.5m, 0.6m, 0.7m, 0.8m, 0.9m, 1m, 1.2m, 1.5m, 2m, 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m, 13m, 14m, 15m, 16m, 17m, 18m, 19m, 20m, 21m, 22m, 23m, 24m, 25m, 26m, 27m, 28m, 29m, 30m, ∞

Features:
* Built-in 110mAh rechargeable battery: Charge the battery with a USB-C cable. You can also charge it with your phone. Up to 20+ hours of combined battery life (based on LightMate Labs measurements). In continuous trigger metering mode, it can be used for up to 6 hours, which means that it can measure up to 21,600 times, which can meet your needs for on-the-go use. When powered off at full charge, the light meter can be left for more than 6 months.
* It can be mounted directly on a flat-topped rangefinder camera, such as a Barnack camera.
* Front and rear mirror groups of the viewfinder use a multi-layer anti-reflection coating to make the viewfinder clearer and brighter. The purple coating is beautiful.
* The viewfinder presents a black viewfinder frame. The center circle of the frame is the 17° metering area, equivalent to a 135 format of approximately 135mm focal length.

Premium Components:
* Use imported electronic components with better performance and higher cost. More than 6 kinds of electrical protection to increase the reliability and stability of the light meter
* Japanese connector uses FPC cable, making it stable and reliable to use
* 2 button ESD diodes absorb static electricity to prevent static damage
* 32-bit master controller is reliable, efficient and energy-efficient
* Independent crystals make the operation more stable
* Imported power management chips: Battery over-temperature protection, over-charge, over-discharge protection and charging over-voltage protection
* Battery charge temperature sensor prevents over-temperature/over-cooling charging
* Modular, non-welded battery mount design
* 3 dial ESD diodes absorb static electricity to prevent static damage
* 1 anti-reverse connection diode: a faulty charging cable will not damage the light meter
* 1 self-resettable fuse prevents the charger from malfunctioning and damaging the light meter due to excessive voltage
* Japanese dial
* 1 x TVS anti-surge diode prevents instantaneous high voltage damage to the light meter during USB access
* 3 USB ESD diodes absorb static electricity to prevent static damage

Specifications:
* Product name: LightMate Area 2S
* Product type: Digital Exposure Meter
* Product model: 9832
* Light reception mode: reflected light
* Light reception angle: about 17 degrees
* Image sensor: silicon photodiode array
* Metering mode: Aperture priority/shutter speed priority/EV metering
* Metering range (ISO100): EV-1.1~EV21
* Metering accuracy: ±0.1EV
* Display range:
  · ISO: ISO1~ISO8000
  · Shutter: 60s~1/8000s
  · Aperture: F1~F64
  · EV: EV-1.1~EV21
  · Exposure compensation: EV-2~EV+2
* Screen size: 0.96-inch OLED display/128x64 pixels
* Battery type: 3.7V/110mAh built-in polymer lithium-ion battery
* Charging parameters: USB-C charging interface, DC5V±10% and maximum current 0.2A. The charging time is about 1 hour
* Operating temperature: -10°C to 60°C
* Operating humidity: 30%~80%
* Storage temperature: -20°C to 70°C
* Dimensions:
  · Size without shoe mount: 38mm*29.5mm*14mm
  · Size with shoe mount: 38mm*29.5mm*18mm
* Weight: 26g

Package Included:
* 1 x Light meter main unit
* 1 x Screwdriver
* 1 x User manual

Packaging Details:
* Weight: 0.3kg

Attention:
* If you are not sure whether your camera can be installed with this light meter, you can send the camera shoe mount picture to customer service. Thank you!
