LightMate Lite 2R 30° Digital Exposure Meter Light Meter (Silver) with Two Dials for Film Cameras

LightMate Lite 2R 30° Digital Exposure Meter Light Meter (Silver) with Two Dials for Film Cameras

Installation Requirements:
1. Your camera supports manual control of the aperture and shutter speed.
2. The camera comes with a shoe mount.

The LightMate Lite 2R is the next generation of the Lite series of exposure meters. Features of LightMate Lite 2R:
* The field of view of the metering lens has been adjusted from 35° to 30° for more accurate metering angle.

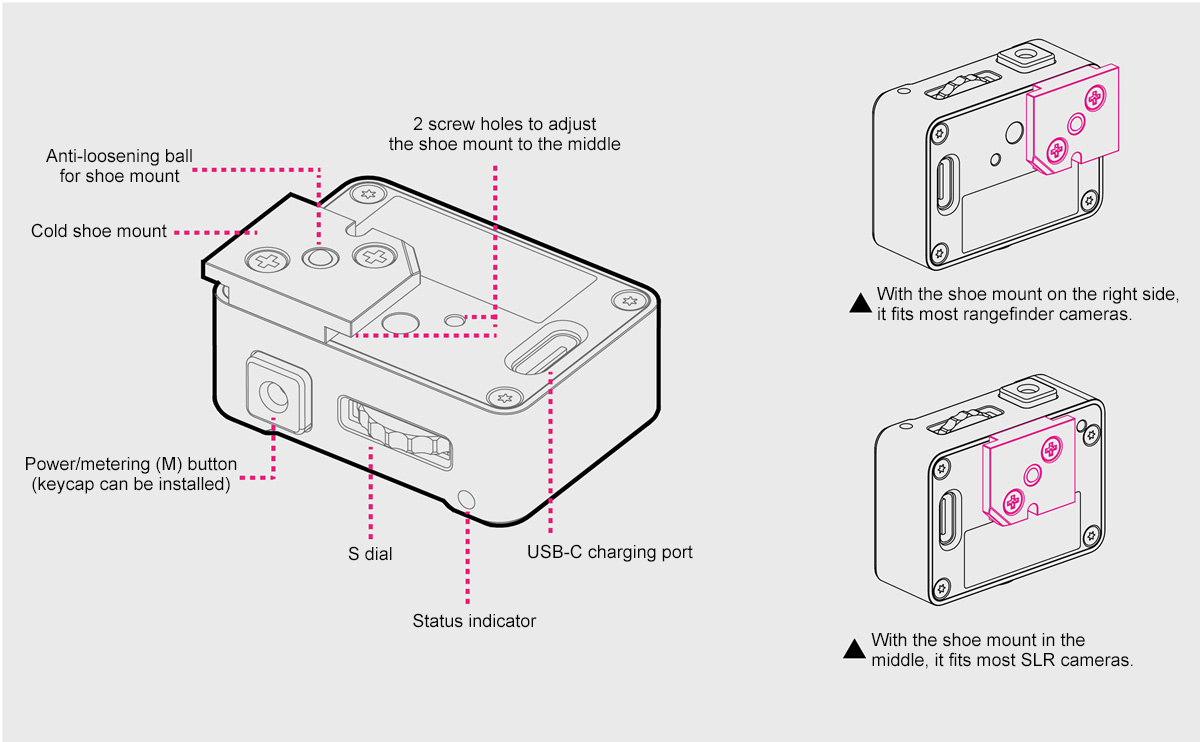

* Magnetic filter interface is added. It can install filters such as incident metering balls.
* Anti-loosening ball for shoe mount has been updated to the 2nd generation.
* The metering button has been updated from a two-stage to a simpler and easier-to-use single-stage button.
* The housing material is metal aluminum.
* The warranty of the main unit is one year.

Supported ISO Stops:
1, 2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25, 32, 40, 50, 64, 80, 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000

Supported Aperture Stops:
F1, F1.1, F1.2, F1.3, F1.4, F1.5, F1.6, F1.7, F1.8, F1.9, F2, F2.2, F2.4, F2.5, F2.6, F2.8, F3, F3.2, F3.5, F3.7, F4, F4.5, F5, F5.2, F5.6, F6.3, F6.7, F7.1, F8, F9, F10, F11, F12, F13, F14, F15, F16, F17, F18, F19, F20, F21, F22, F25, F27, F29, F32, F36, F40, F45, F50, F55, F60, F64

Supported Shutter Stops:
1/8000, 1/6400, 1/5000, 1/4000, 1/3200, 1/2500, 1/2000, 1/1600, 1/1250, 1/1000, 1/800, 1/640, 1/500, 1/400, 1/320, 1/250, 1/200, 1/160, 1/125, 1/100, 1/80, 1/60, 1/50, 1/40, 1/30, 1/25, 1/20, 1/15, 1/13, 1/10, 1/8, 1/6, 1/5, 1/4, 1/3, 1/2, 1s~60s (1 second step)

Exposure Compensation Stops:
-2, -1.5, -1.0, -0.5, 0, +0.5, +1.0, +1.5, +2.0

Supported ND Filter Compensation Stops:
ND2, ND4, ND8, ND16, ND32, ND64, ND128, ND256, ND512, ND1000

Supported Lens Systems (for digital DoF scale):
* Full frame
* Half frame, APS-C
* Medium format: 645, 660, 670, 680, 690, 612, 617, 624
* Large format: 2x3, 4x5, 4x10, 5x7, 5x12, 7x11, 8x6, 8x10, 8x20, 11x14, 12x20, 14x17, 16x20, 20x24

Supported Distance Stops (for digital DoF scale):
0.1m, 0.2m, 0.3m, 0.4m, 0.5m, 0.6m, 0.7m, 0.8m, 0.9m, 1m, 1.2m, 1.5m, 2m, 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m, 13m, 14m, 15m, 16m, 17m, 18m, 19m, 20m, 21m, 22m, 23m, 24m, 25m, 26m, 27m, 28m, 29m, 30m, ∞

Features:

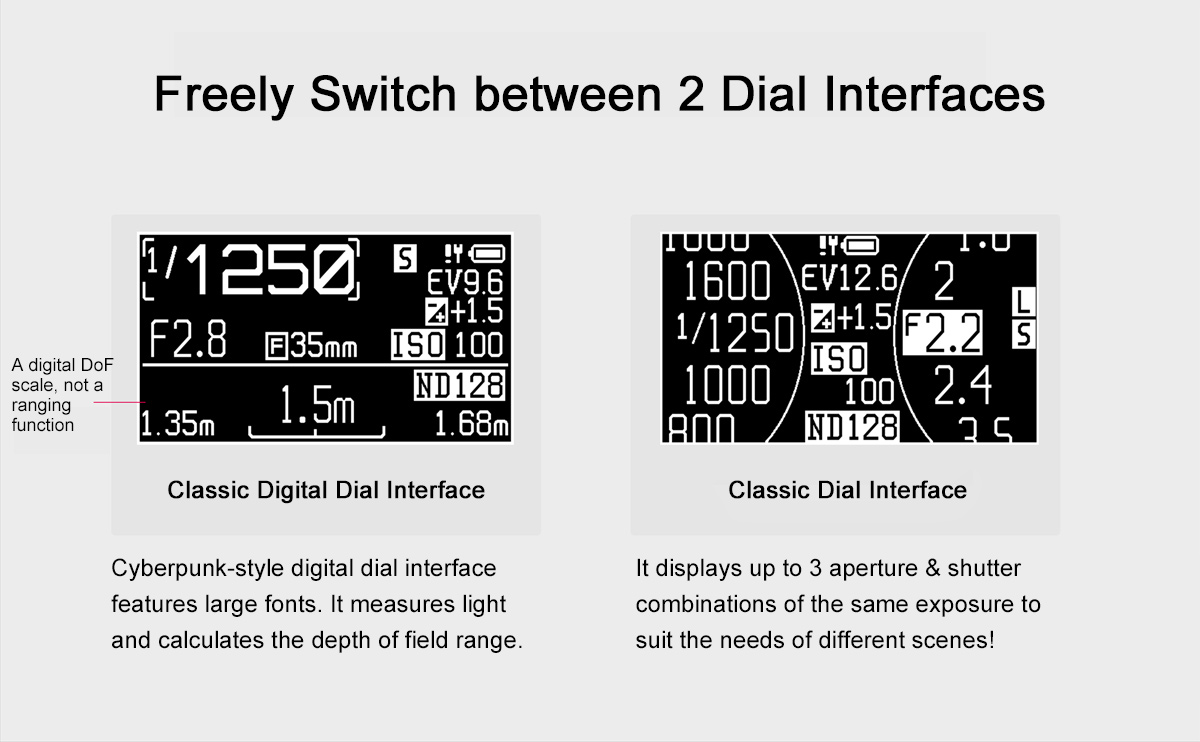

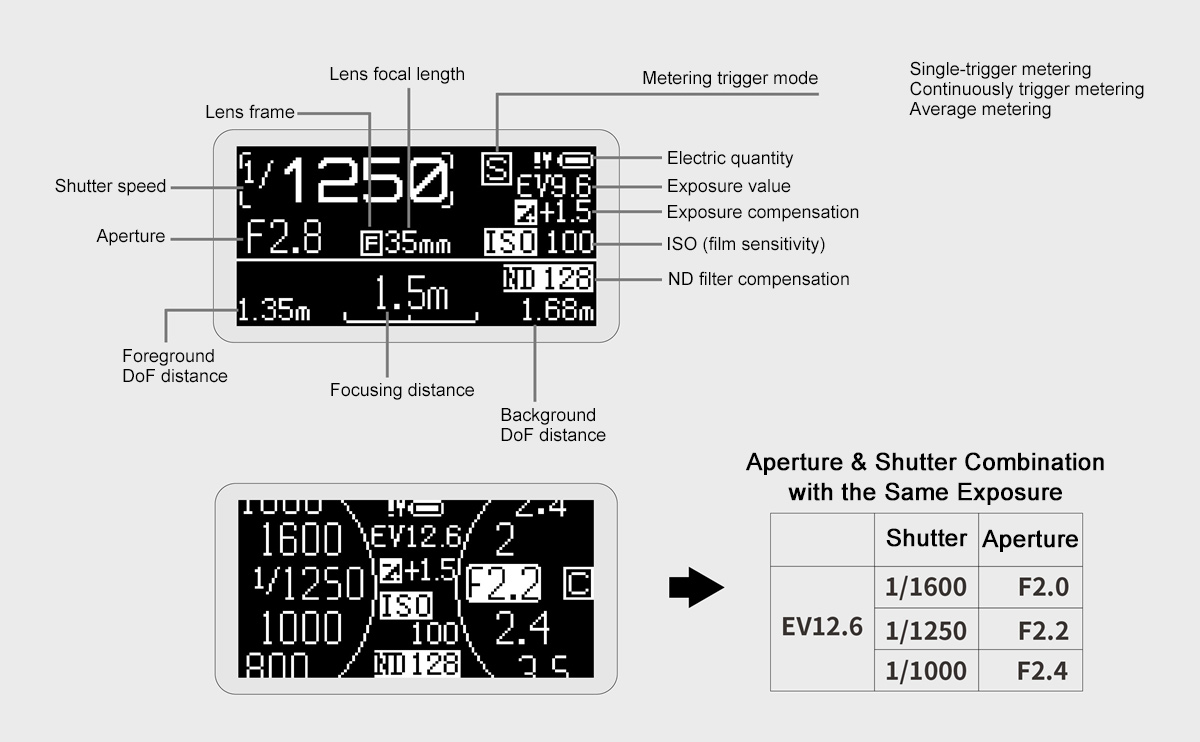

* Two switchable dial interfaces: Classic digital dial interface and Classic dial interface
* Single-trigger metering, continuously trigger metering and average metering

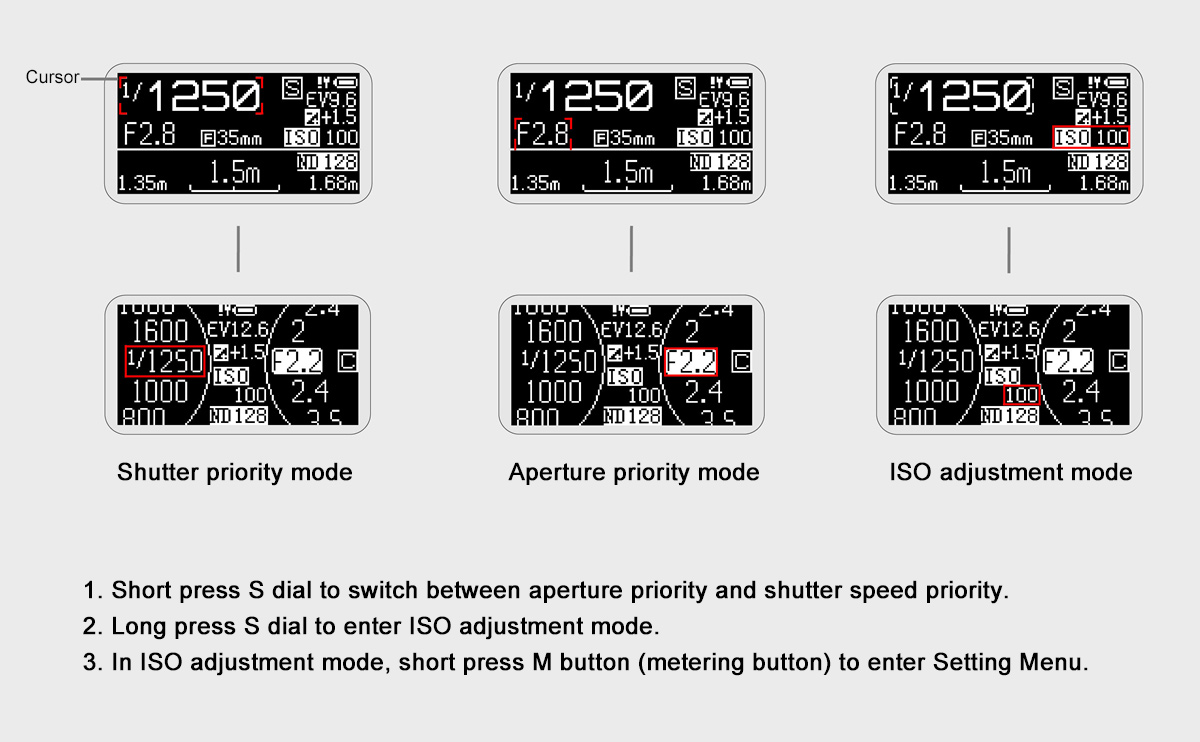

* Supports shutter priority mode, aperture priority mode and ISO adjustment mode

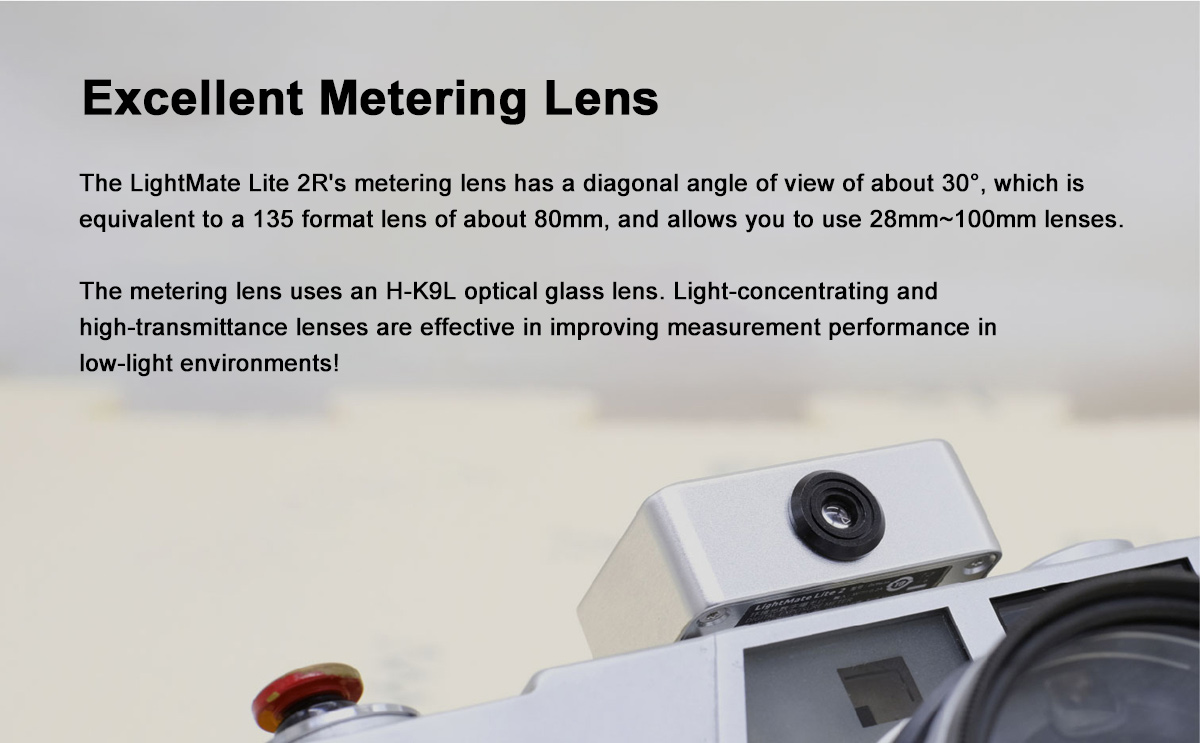

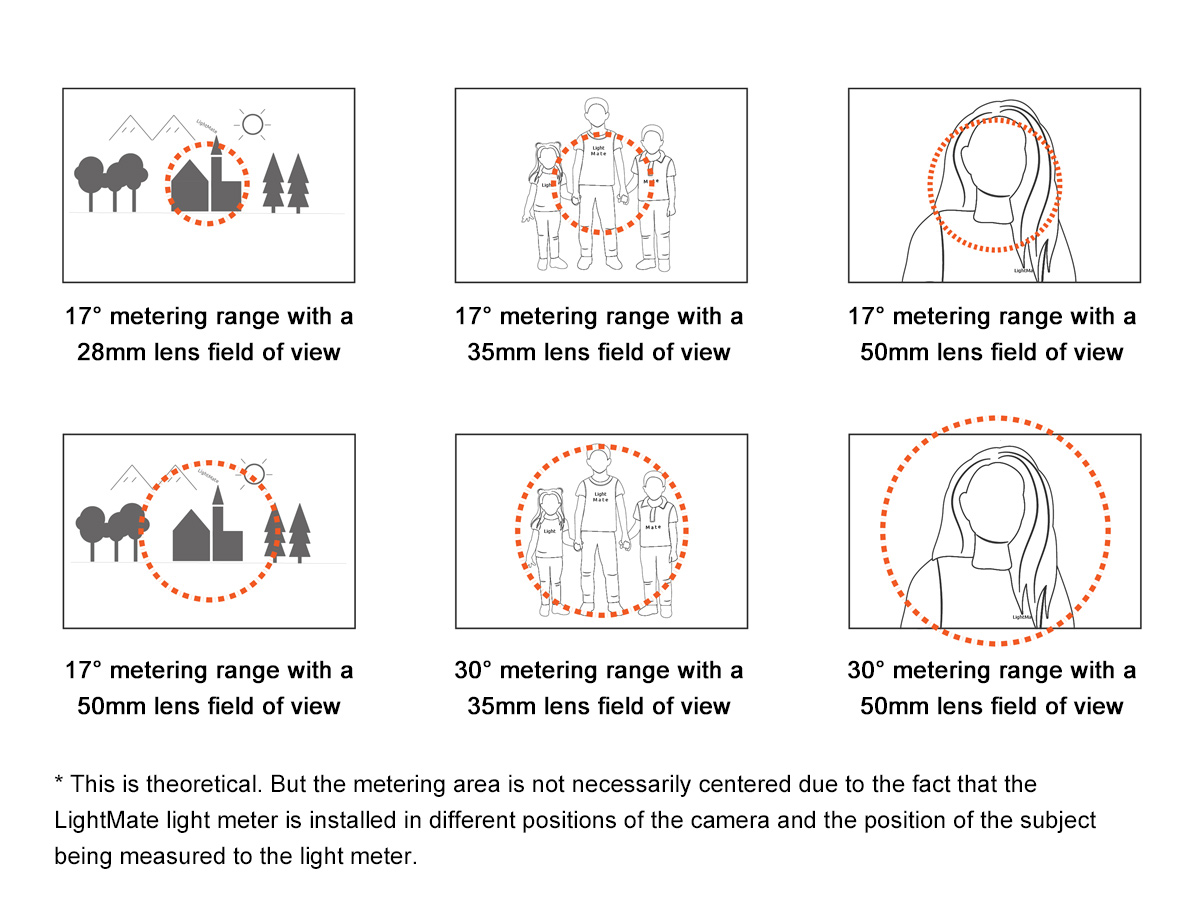

* Excellent metering lens: The LightMate Lite 2R's metering lens has a diagonal angle of view of about 30°, which is equivalent to a 135 format lens of about 80mm, and allows you to use 28mm~100mm lenses. The metering lens uses an H-K9L optical glass lens. Light-concentrating and high-transmittance lenses are effective in improving measurement performance in low-light environments.

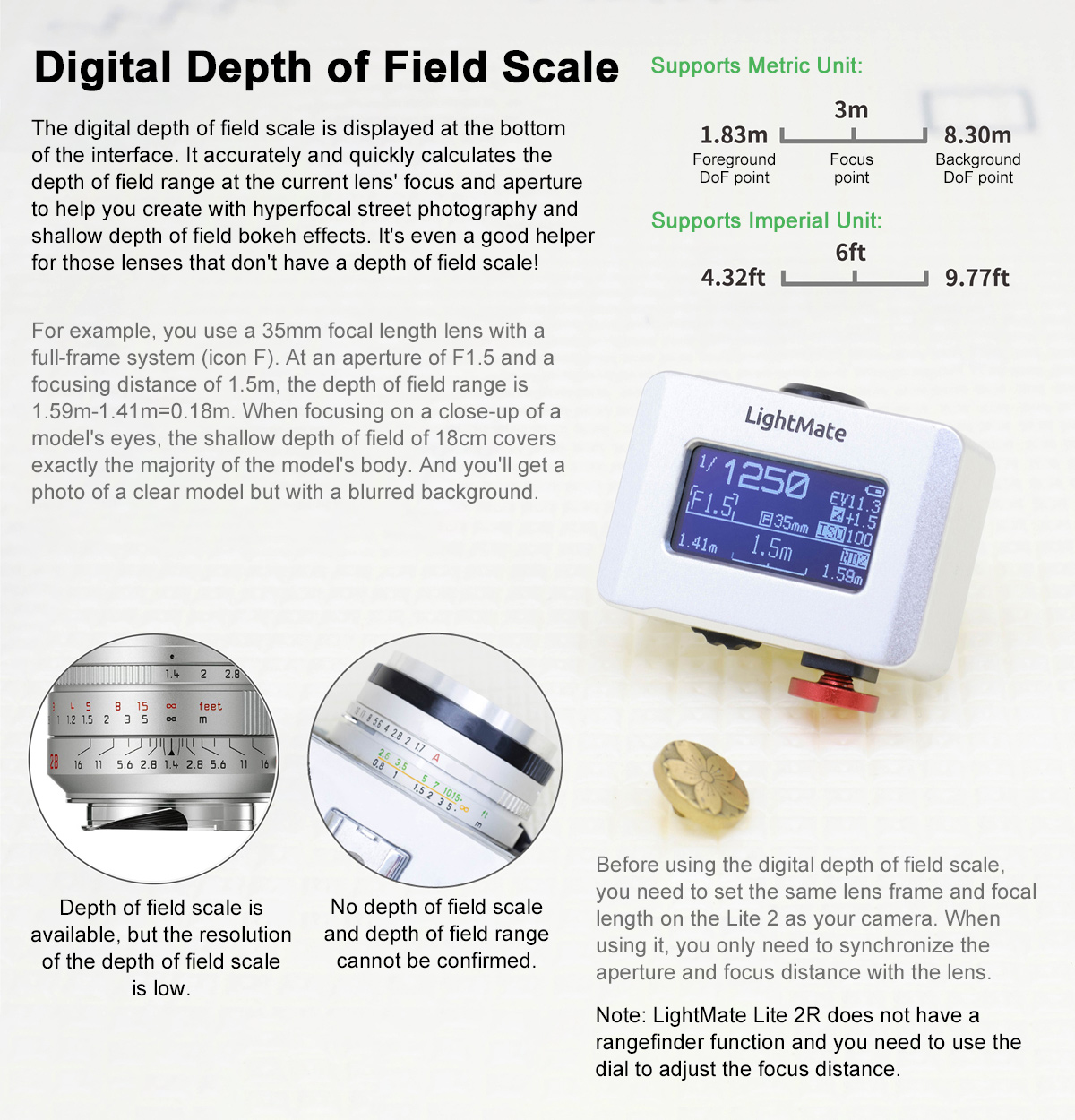

* Digital depth of field scale: The digital depth of field scale is displayed at the bottom of the interface. It accurately and quickly calculates the depth of field range at the current lens' focus and aperture to help you create with hyperfocal street photography and shallow depth of field bokeh effects. It's even a good helper for those lenses that don't have a depth of field scale!

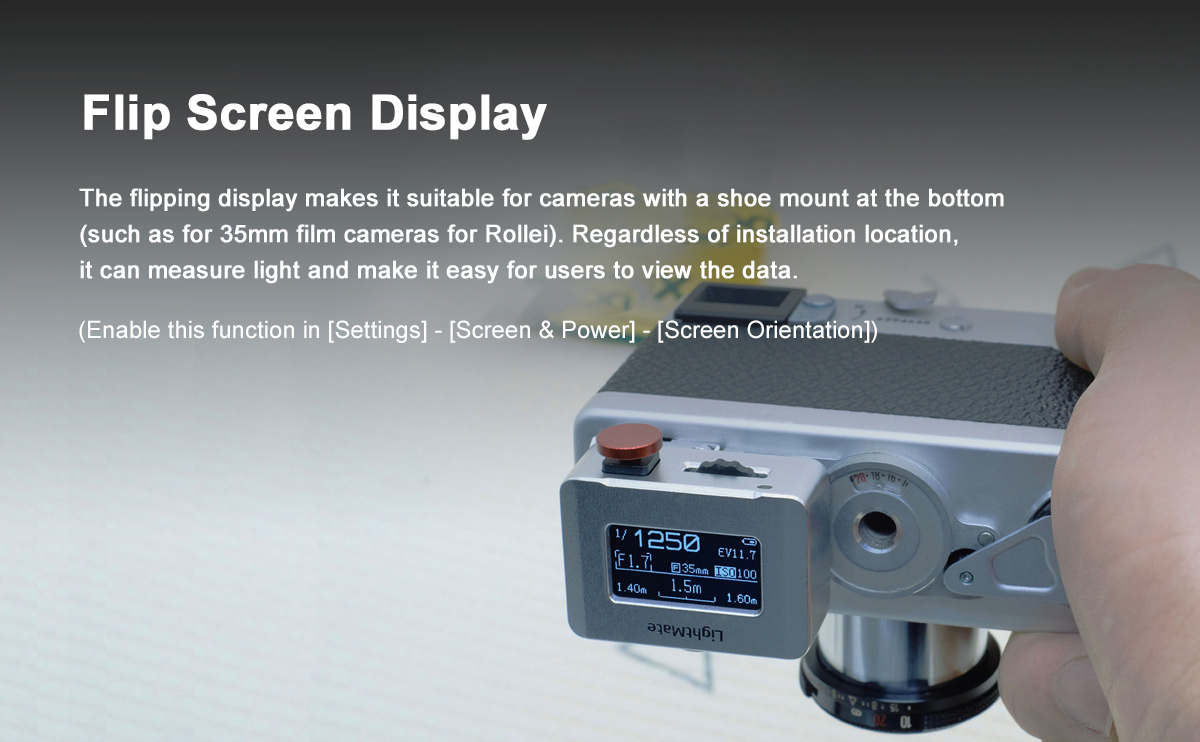

* Flip screen display: The flipping display makes it suitable for cameras with a shoe mount at the bottom (such as for 35mm film cameras for Rollei). Regardless of installation location, it can measure light and make it easy for users to view the data.

Premium Components:
* Use imported electronic components with better performance and higher cost. More than 6 kinds of electrical protection to increase the reliability and stability of the light meter
* Japanese connector uses FPC cable, making it stable and reliable to use
* 2 button ESD diodes absorb static electricity to prevent static damage
* 32-bit master controller is reliable, efficient and energy-efficient
* Independent crystals make the operation more stable
* Imported power management chips: Battery over-temperature protection, over-charge, over-discharge protection and over-charge over-voltage protection
* Battery charge temperature sensor prevents over-temperature/over-cooling charging
* Modular, non-welded battery mount design
* 3 dial ESD diodes absorb static electricity to prevent static damage
* 1 anti-reverse connection diode: a faulty charging cable will not damage the light meter
* 1 self-resettable fuse prevents the charger from malfunctioning and damaging the light meter due to excessive voltage
* Japanese dial
* 1 x TVS anti-surge diode prevents instantaneous high voltage damage to the light meter during USB access
* 3 USB ESD diodes absorb static electricity to prevent static damage

Specifications:
* Product name: LightMate Lite 2R
* Product type: Digital Exposure Meter
* Product model: 9632
* Light reception mode: reflected light
* Light reception angle: about 30 degrees
* Image sensor: silicon photodiode array
* Metering mode: Aperture metering priority/shutter speed metering priority/EV metering
* Metering range (ISO100): EV-1.1~EV21
* Metering accuracy: ±0.1EV
* Display range:
  · ISO: ISO1~ISO8000
  · Shutter: 60s~1/8000s
  · Aperture: F1~F64
  · EV: EV-1.1~EV21
  · Exposure compensation: EV-2~EV+2
* Screen size: 0.96-inch OLED display/128x64 pixels
* Battery type: 3.7V/110mAh built-in polymer lithium-ion battery
* Charging parameters: charging interface USB-C, DC5V±10% and maximum current 0.2A. The charging time is about 1 hour
* Operating temperature: -10°C to 60°C
* Operating humidity: 30%~80%
* Storage temperature: -20°C to 70°C

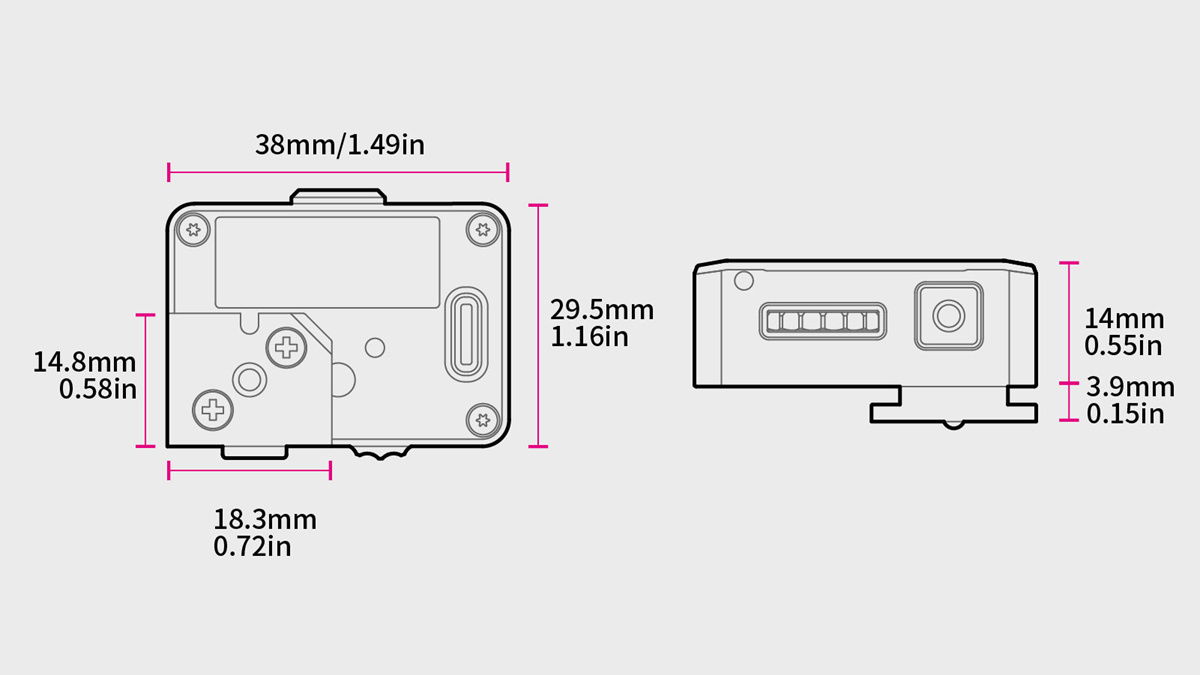

* Dimensions:
  · Size without hot shoe mount: 38mm*29.5mm*14mm
  · Size with hot shoe mount: 38mm*29.5mm*18mm
* Weight: 26g

Package Included:
* 1 x Main unit
* 1 x Screwdriver
* 1 x User manual

Packaging Details:
* Weight: 0.3kg

Attention:
* If you are not sure whether your camera can be installed with this light meter, you can send the camera shoe mount picture to customer service. Thank you!
