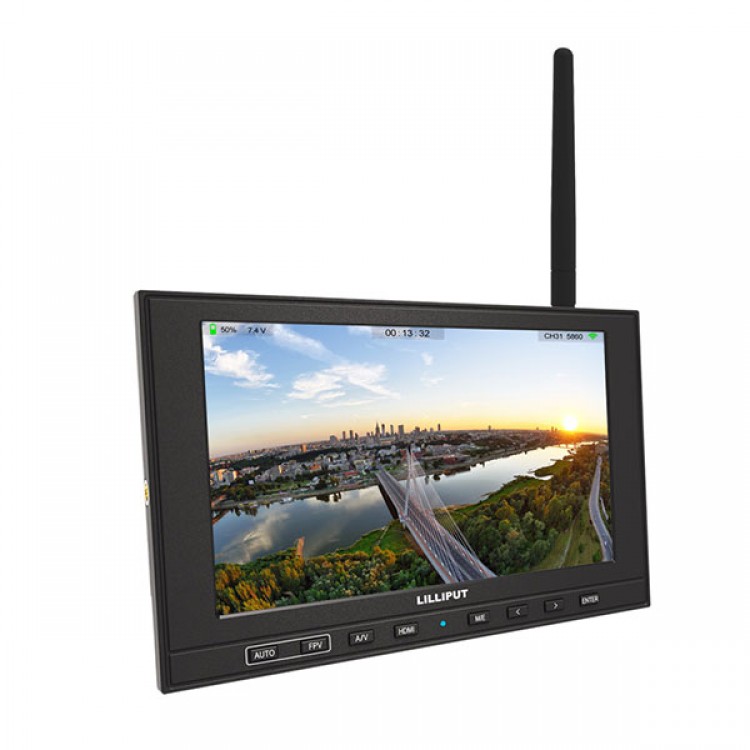

LILIPUT 339/W 7" FPV Monitor w/ Single 5.8GHz Receiver for FPV Photography
Description:
- Specific Monitor by LILLIPUT for Flying Camera System.
- Application for Aerial & Outdoor Photography.
- Strongly recommend for aerial enthusiast & professional photographer.
- 339/DW (with dual 5.8Ghz receivers, which cover 4 bands and total 32 channels, Channel auto searching)
- 339/W (with single 5.8Ghz receiver, which cover 4 bands and total 32 channels, Channel auto searching)
Features:
Excellent Display & Design
it features attractive IPS panels, which with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast that providing excellent viewing experience.
Channel Auto Searching
It supports 32-channel totally, press "AUTO" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.
PiP Mode(339/DW only)
339/DW owns dual antennas, which can receive two different video signal channels, and technically overlayed the video signals directly on the same monitor. Also multiple Picture-in-Picture(PiP) modes can be selected.
3-hour Timer & Alert Indicator
Creatively integrated timer function to control the flight time and avoid of flight accident when operating the UAV. Timer supports up to 3-hour countdown, and it will alert when 1 minute left.
Built-in Battery & Battery Level
Built-in 2600mAh battery, support up to 3-4 hours working time, and providing battery level indicator.
Wireless signal sensitivity indicator
Real-time display the 5.8GHz wireless signal sensitivity of main image. It's more convenient for users to monitor the video signal status of UAV.
5.8GHz Wireless AV Receiver
Built-in AV receiver support PAL / NTSC switch automatically, anti-black, anti-blue, anti-flash.
Simulation of composite video AV inputs, aerial camera connection.
5.8Ghz frequency 4 Bands and total 32 channels.
100 to 2000 meters wireless distance.
Built-in 2600mAh high capacity rechargeable battery, make power cables free.
Snow screen, no more "blue" screen.
|
DISPLAY
|
Panel | 7" IPS, LED backlit |
|---|---|---|
| Physical Resolution | 1280×800 | |
| Aspect Ratio | 16:9 | |
| Brightness | 400cd/㎡ | |
| Contrast | 800:1 | |
| Viewing Angle | 178°/178°(H/V) | |
|
INPUT
|
Wireless 5.8GHz AV | 1 (339/W), 2 (339/DW) |
| HDMI | 1 | |
| AV | 1 | |
|
OUTPUT
|
AV | 1 |
|
AUDIO
|
Speaker | 1 |
| Earphone | 1 | |
|
POWER
|
Current | 1300mA |
| Input Voltage | DC 7-24V | |
| Battery | Built-in 2600mAh battery | |
| Battery Plate (optional) |
V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
|
| Power Consumption | ≤18W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension(LWD) | 185×126×30 mm |
| Color | White/Black | |
| Weight | 385g |
Package includes:
- AV output cable
- AV input cable
- 5.8GHz Antenna
- 2600mAh-7.4V Li-ion battery
- Foldable Sunshade
- 12V DC adapter
- Manual
