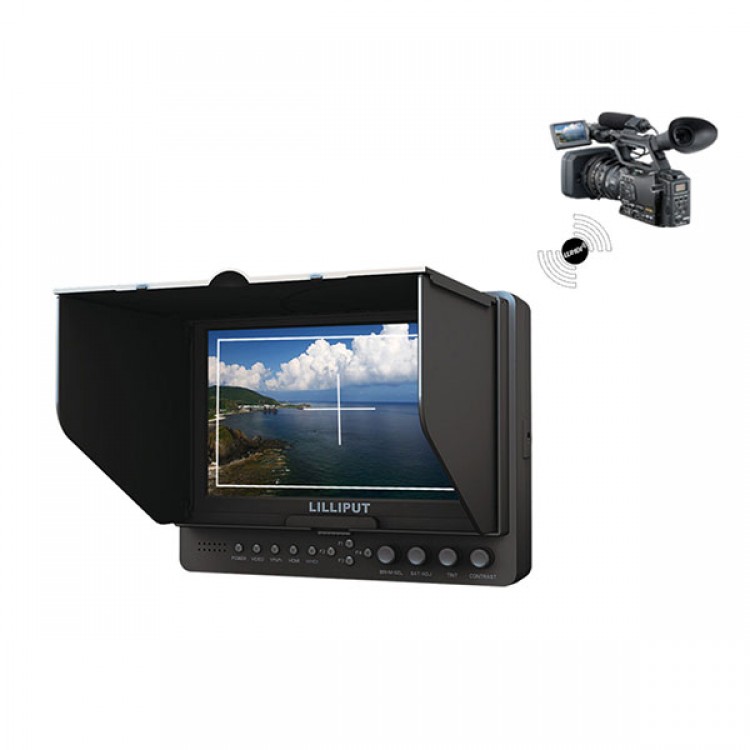

LILIPUT 665/O/P/WH 7" Wireless HDMI Monitor for FPV Photography
Description:
The 665/P/WH is a 7" wireless HDMI Monitor with WHDI, HDMI, YPbPr, component video, peaking functions, focus assistance and sun hood. Optimised for for DSLR & Full HD Camcorder.
Note: 665/P/WH (with advanced functions, wireless HDMI input)
665/O/P/WH (with advanced functions, wireless HDMI input & HDMI output)
665/WH (Wireless HDMI input)
665/O/WH (Wireless HDMI input & HDMI output)
PTP & PTMP Transmission:
PTP: Point-to-point (standard),
PTMP: Point-to-multipoint (optional)
*One transmitter can work with one receiver or multi-receivers.
FALSE COLORS FILTER:
The False Color filter is used to aid in the setting of camera exposure, which enables proper exposure to be achieved without the use of costly, complicated external test equipment.
OVEREXPOSED: Overexposed objects will display as RED;
PROPERLY EXPOSED: Properly exposed objects will display elements of GREEN and PINK;
UNDEREXPOSED: Underexposed objects show as DEEP-BLUE to DARK-BLUE.
EXPOSURE (ZEBRAS):
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern.
BRIGHTNESS HISTOGRAM:
The Brightness Histogram is a quantitative tool to check the picture brightness. This feature shows the distribution of brightness in an image as a graph of brightness along the horizontal axis (Left: Dark; Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.
|
DISPLAY
|
Panel | 7" LED backlit |
|---|---|---|
| Physical Resolution | 1024×600, support up to 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 250cd/㎡ | |
| Contrast | 800:1 | |
| Viewing Angle | 160°/150°(H/V) | |
|
INPUT
|
WHDI | 1 |
| HDMI | 1 | |
| YPbPr | 3(BNC) | |
| VIDEO | 1 | |
| AUDIO | 1 | |
|
OUTPUT
|
HDMI | 1(optional) |
| VIDEO | 1 | |
|
POWER
|
Current | 800mA |
| Input Voltage | DC 7-24V(XLR) | |
| Battery Plate |
V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
|
| Power Consumption | ≤10W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension(LWD) | 194.5×150×38.5 / 158.5mm (with cover) |
| Weight | 560g / 720g (with cover) | |
|
VIDEO FORMAT
|
WHDI(wireless HDMI) |
1080p 60/50/30/25/24Hz |
| HDMI |
1080p 60/59.94/50/30/29.97/25/24/23.98/23.976Hz 1080i 60/59.94/50Hz, 1035i 60/59.94Hz 720p 60/59.94/50/30/29.97/25Hz 576i 50Hz, 486i 60/59.94Hz, 480p 59.94Hz |
Package includes:
WHDI transmitter
Battery Plate
Battery plate bracket
7" sun shade
HDMI A/C cable
12V DC adapter
Manual
