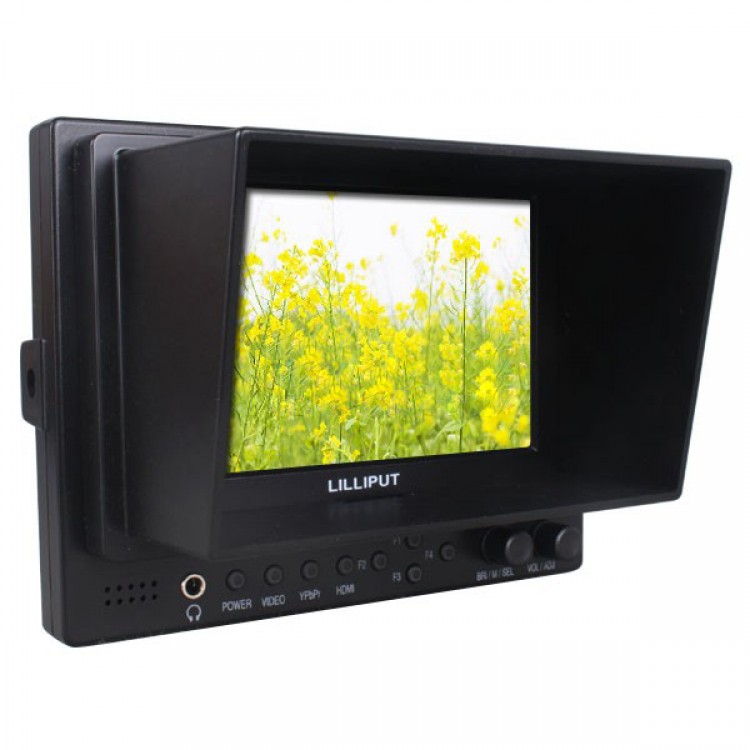

Lilliput 569/O 5" HD Field Monitor On Camera Video Camcorder HD DSLR LCD Monitor HDMI FPV Monitor

Lilliput 569/O 5" HD Field Monitor On Camera Video Camcorder HD DSLR LCD Monitor HDMI FPV Monitor

Four user definable Function keys.
- Can be set to switch between aspect ratio
- Color or Red,blue,green for easy focus, underscan, safety area setting.
- you can set it to use at your way.
- Just one click and do it!!
Default:
F1 = Safety video taking Area Display (white frame, 3 diff size)
F2 = underscan / overscan switch
F3 = 6500K,7500K,9300K, Red, Green, Blue monochromatic screen switch
F4 = screen aspect ratio

- New model, LED backlight Monitor for Full HD Video Camera
- 16:9 aspect ratio, HDMI, YPbPr, AV input
- Hight Brightness with sun shade, best to be used with DSLR camera for video taking

Specification:
- Panel Size: 5" TFT LCD (16:9)
- Resolution: 800×480, input can be up to 1920×1080
- Brightness: 400cd/m2
- Contrast: 600:1
- Viewing Angle: 150°/ 130°(H/V)
- Input Voltage: Wide range DC 6V-24V
- Input Signal: HDMI,YPbPr, Composite AV1, Audio
- (BNC connectors for YPbPr, AV, audio)
- Output Signal: BNC Composite AV,HDMI OUT
- Current: 450mA
- Standby Current: 50mA
- Power Consumption: 5.4W
- Audio Output: 250mW
- Speaker: ×1(front)
- Headphone output: 1(front)
- Size(LWD): 151×116×39.5mm/98.1mm (with sun shade)
- Weight: 316g / 386g (with sun shade)

Package list:
- 5" TFT  High Brightness  LCD (with HDMI out)
- Sun Shade
- DC 12V Home Power Adapter for Monitor
- DV battery adapter Type A LP-E6 (CANON LP-E6 BATTERY)
- DV battery adapter Type B F-970 (for SONY DV battery)
- Operation Manual
