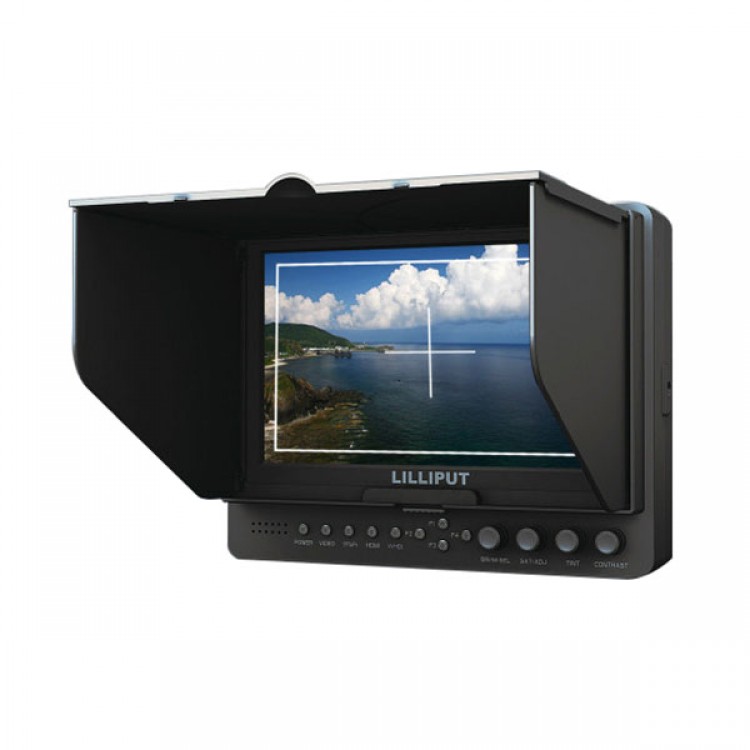

Lilliput 665/WH 30 meter 7 Inch WHDI YPbPr Wireless HDMI Camera Monitor Without Delay 1080P
Description:
- 30 meter 7 Inch WHDI YPbPr Wireless Camera Monitor Without Delay 1080P
Wireless transmission without delay
- Transmitter distance 30-meter
- FHD 60Hz video format supported
- High resolution: 1024×600,
- High contrast: 800:1,
- WHDI, YPbPr, Video & HDMI input/output
- Wide voltage: DC 6.5-24V
- Flexible folding sunshade
7“ Wireless HDMI Monitor with WHDI Technology
- Specific Monitor by Lilliput for WHDI system
- Application for Field Broadcast & Making Movies
- WHDI Transmitter
- Transmitter has a 30-meter range and supports up 1080p 60Hz resolution.
- Built-in Wireless HDMI Receiver is compliant with WHDI 1.0
- No HDMI cable, no trouble
- Wireless transmission without delay
- Transmitter distance:30-meter
- FHD 60Hz video format supported
- High resolution: 1024×600,
- High contrast: 800:1,
- Advanced functions,
- WHDI, YPbPr, Video & HDMI input/output
- Wide voltage: DC 6.5-24V
- Flexible folding sunshade
PTP & PTMP Transmission
- PTP: Point-to-point (standard)
- PTMP: Point-to-multipoint (optional)
- One transmitter can work with one receiver or multi-receivers
- WHDI VIDEO FORMAT:
- Full HD:1080P 60/50/30/25/24Hz
- HD:1080i 60/50Hz, 720p 60/50Hz
- 576p 50Hz, 576i 50Hz
- SD: 480P 60Hz, 480i 60Hz
- HDMI VIDEO FORMAT:
- Full HD: 1080P 60/59.94/50/30/29.97/25/24/23.98/23.976Hz
- HD: 1080i 60/59.94/50Hz, 1035i 60/59.94Hz
- 720p 60/59.94/50/30/29.97/25Hz
- SD: 576i 50Hz, 486i 60/59.95Hz, 480P 59.94Hz
Advanced Functions:
- Peaking Filter, False Colors, Histogram, Exposure, Camera Mode, Center Marker, Pixel-to-Pixel, - Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V - Delay, 8x Zoom, Picture-in-Picture, Flip H/V, Backlit Control.
Peaking Function:
- The operator adjusts the focus control until the red outlines on the desired area are clear, indicating optimal focus. For the best results, be sure the subject is properly exposed. Enjoy taking your photos!
- Two Peaking kinds: Mono version & Color Version
False Color
- The false color filter is used to aid in the setting of camera exposure,which enables proper - exposure to be achieved without the use of costly,complicated external test equipment.
Exposure (Zebras)
- The exposure is used to assist in exposure adjustment in the mode of Zebra Pattern
Brightness Histogram
- The brightness Histogram is a quantitative tool to check the picture brightness.This feature shows the distribution of brightness in an image as a graph of brightness along the horizontal axis (Left:Dark; Right:Bright) and a stack of the number of pixel at each level of brightness along the vertical axis.
Specifications
| DISPLAY | Panel | 7" LED backlit |
| Physical Resolution | 1024×600, support up to 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 250cd/M2 | |
| Contrast | 800:1 | |
| Viewing Angle | 160°/150°(H/V) | |
| INPUT | WHDI | 1 |
| HDMI | 1 | |
| YPbPr | 3(BNC) | |
| VIDEO | 1 | |
| AUDIO | 1 | |
| OUTPUT | HDMI | 1 |
| VIDEO | 1 | |
| POWER | Current | 800mA |
| Input Voltage | DC 7-24V(XLR) | |
| Battery Plate | V-mount / Anton Bauer mount / | |
| F970 / QM91D / DU21 / LP-E6 | ||
| Power Consumption | ≤10W | |
| ENVIRONMENT | Operating Temperature | -20°C~60°C |
| Storage Temperature | -30°C~70°C | |
| DIMENSION | Dimension(LWD) | 194.5×150×38.5 / 158.5mm (with cover) |
| Weight | 560g / 720g (with cover) | |
| VIDEO FORMAT | WHDI(wireless HDMI) | 1080p 60/50/30/25/24Hz |
| 1080i 60/50Hz, 720p 60/50Hz | ||
| 576p 50Hz, 576i 50Hz | ||
| 480p 60Hz, 486i 60Hz | ||
| HDMI | 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976Hz | |
| 1080i 60/59.94/50Hz, 1035i 60/59.94Hz | ||
| 720p 60/59.94/50/30/29.97/25Hz | ||
| 576i 50Hz, 486i 60/59.94Hz, 480p 59.94Hz |
Standard accessories
| 1 | WHDI transmiter & USB power cable | 1 |
| 2 | Flexible folding sun shade | 1 |
| 3 | Battery plates | 2 |
| 4 | Battery plate bracket | 1 |
| 5 | DC adapter | 1 |
| 6 | HDMI A/C cable | 1 |
| 7 | Manual | 1 |
Optional accessories
| 8 | Li-ion battery | 1 |
| 9 | V-mount battery platee | 1 |
| 10 | Anton mount battery plate | 1 |
| 11 | Shoe mount |
1 |
