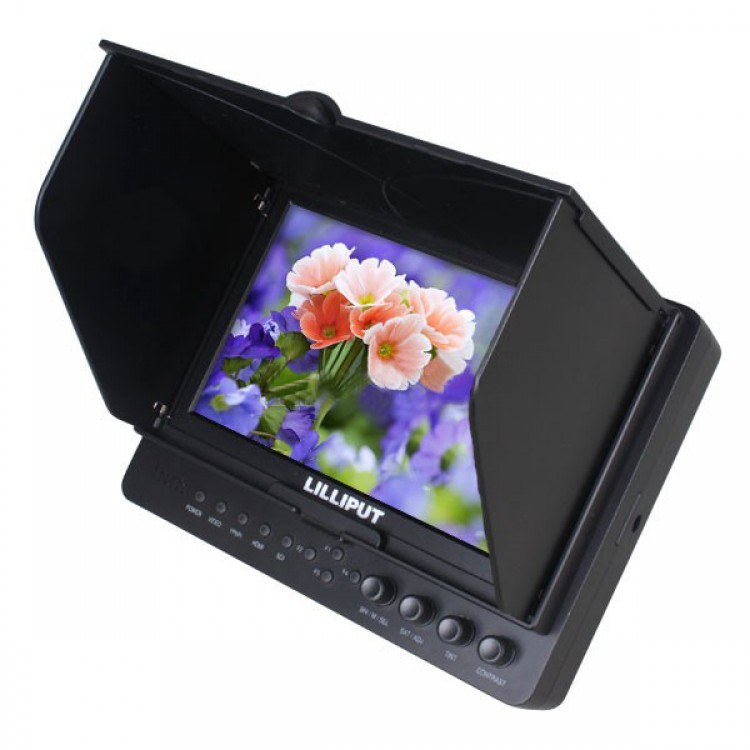

LILLIPUT 7'' 665/S/P FPv Field Monitor w/ 3G-SDI HDMI IN&OUT Peaking/Exposure/Histogram Function

Availability: Out Of Stock

  • Price:$568.90
  • Price in reward points: 5689 Reward Points: 57
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $557.52 $546.14 $529.08 $506.32 Contact US
Quantity:

LILLIPUT 7'' 665/S/P FPv Field Monitor w/ 3G-SDI HDMI IN&OUT Peaking/Exposure/Histogram Function


665/S/P (3G-SDI,HDMI input & output, Advanced Functions)
F1-F4, 4 user-definable buttons, default function:
F1: Peaking Filter
F2: False Colors
F3: Exposure
F4: Histogram

Functions:
- Peaking Filter, False Colors, Histogram, Exposure, Camera, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 4x Zoom, Picture-in-Picture, Image Flip.

Specifications:
- Panel Size: 7" TFT LCD (16:9)
- Resolution: 1024×600, up to 1920×1080
- Brightness: 250cd/㎡
- Contrast: 800:1
- Viewing Angle: 160°/ 150°(H/V)
- Input Voltage: DC 6.5-24V (XLR DC Connection)
- Input Signal: HDMI, YPbPr, AV, 3G-SDI
- Output Signal: HDMI
- Current: 650mA
- Standby Current: 50mA
- Power Consumption: 7.8W
- Size(LWD): 194.5×150×38.5mm
                   194.5×150×48.5mm (with cover closed)
                   194.5×150×158.5mm (with cover open)
Weight: 530g / 680g (with cover)

Package included:
- 1 x 665/S/P Field Monitor (with HDMI out, with 3G-SDI)
- 1 x Flexible Folding Sun Shade Cover
- 2 x Battery Plate (F970/LP-E6)
- 1 x DC Adapter
- 1 x HDMI A/C Cable
- 1 x Manual

Following not included(as for refernce)
1 x Battery Plate DU21 (optional, not included)
1 x V-mount battery plate (optional, not included)
1 x Anton Bauer mount battery plate (optional, not included)
1 x Shoe Mount (for camera only)(optional, not included)

DV Battery Mount Plate:
Model LP-E6 for battery of Canon DSLR: EOS 5D Mark II/EOS 5D Mark III/EOS 7D/EOS 60D/EOS 6D
Model F970 for battery of SONY DV: DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700, GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C, HVR-V1C, FX7E F330 Model DU21 for battery of Panasonic

DV: NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with Panasonic battery DU06/VBD140/SANYO DZhs301sw/Hitachi DZ-HS303SW/BZ-BP14S/DZ3200/BP07W

Model QM91D for battery of SONY DV: DSCR1/F/S/MVCCD/E/HC15E/HC1E/AE1u/DCRTRV828/E/CCD-TRV116/DCR-DVD/PS105K/300K/10P/1E series
