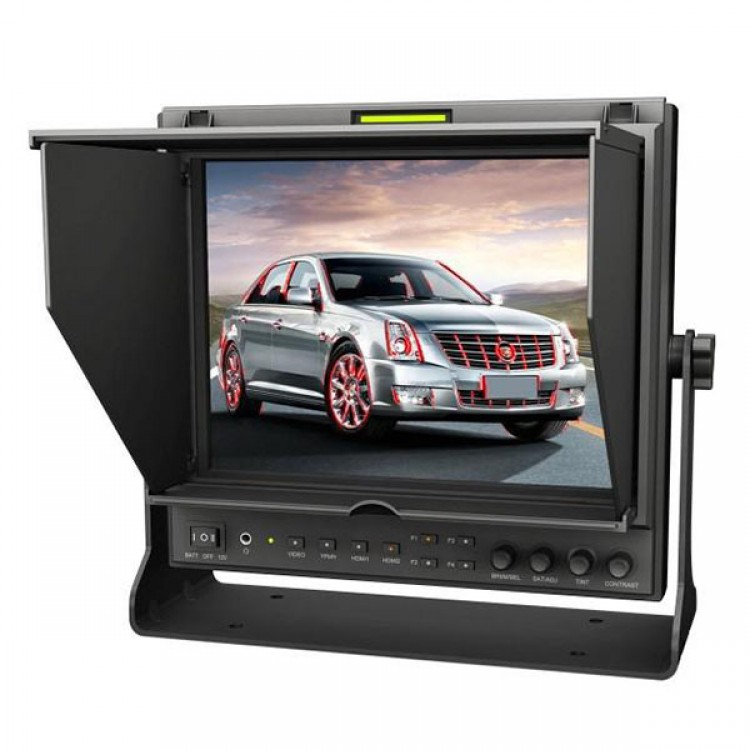

Lilliput 9.7'' 969 A/S LCD Monitor HD-SDI 3G-SDI BNC HDMI TALLY USB Audio Video

Lilliput 9.7'' 969 A/S LCD Monitor HD-SDI 3G-SDI BNC HDMI TALLY USB Audio Video








Description:

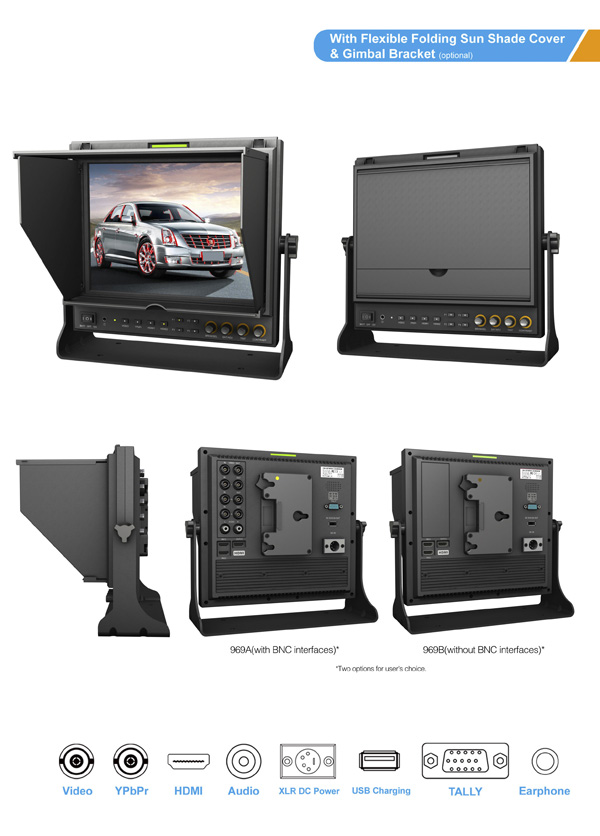

- Model: 969A/S (with BNC interfaces, HDMI output, 3G-SDI input / output)
- IPS panel
- 9.7" 3G-SDI Monitor with Advanced Functions for Full HD Camcorder.
- IPS panel wide viewing angles,
- High resolution: 1024×768,
- High brightness: 420cd/m2
- High contrast: 600:1,
- 3G-SDI input / output,
- USB 5V output for charging,
- Wide voltage: DC 7-24V,
- TALLY interface with indicating light,
- Gimbal bracket for installation,
- Suitcase make monitor watertight, crushproof and dust proof.

Advanced Functions:
- Peaking Filter, False Colors, Histogram, Exposure, Camera, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture.

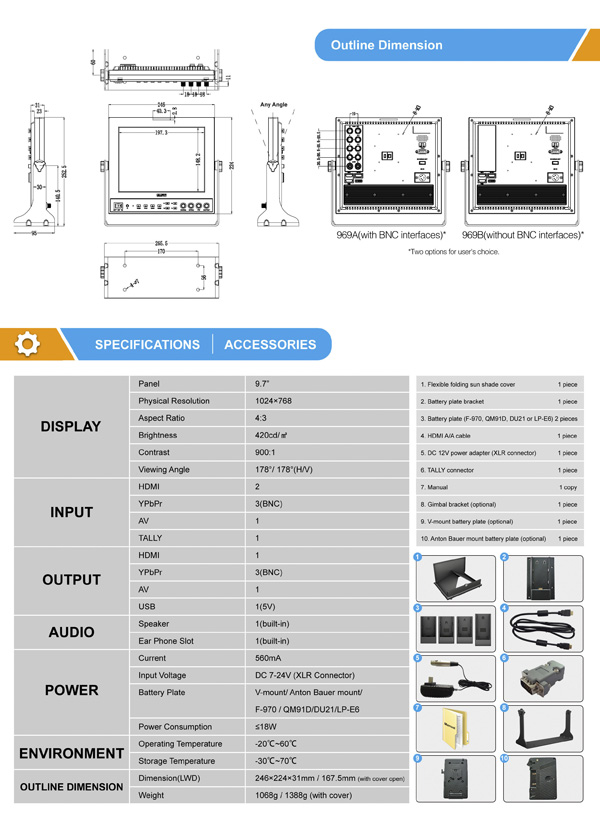

Specifications:
- Panel Size: 9.7"
- Physical Resolution: 1024×768
- Aspect Ratio: 4:3
- Brightness: 420cd/m1
- Contrast: 600:1
- Viewing Angle: 178°/ 178°(H/V)
- Input Signal: HDMI×1, YPbPr, Audio(L/R), TALLY,3G-SDI
- Output Signal: HDMI,YPbPr, USB(5V), 3G-SDI
- Audio: Speaker×1(built-in), Ear Phone Slot×1(built-in)
- Current: ≤1500mA
- Input Voltage: DC 7-24V(XLR Connector)

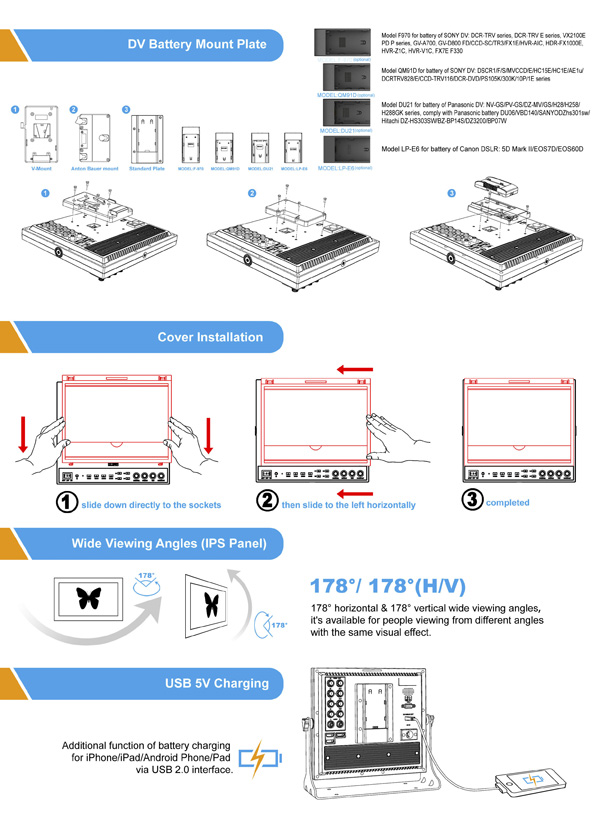

- Battery Plate: V-mount, Anton Bauer mount, F-970, QM91D, DU21, LP-E6
- Power Consumption: ≤18W
- Operating Temperature: -20°C ~ 60°C
- Storage Temperature: -30°C ~ 70°C

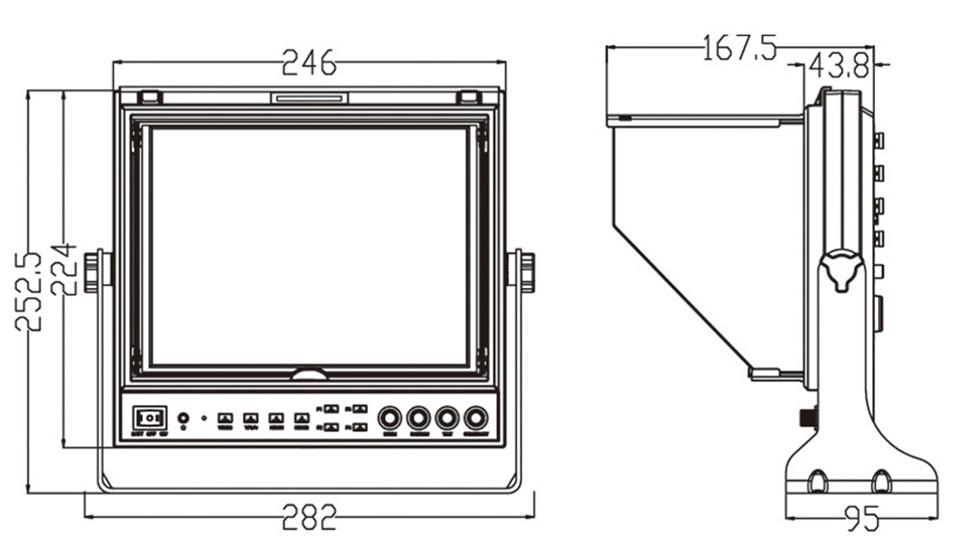

- Dimension(LWD): 246×224×31mm/167.5mm(with cover open)
- Weight: 1068g / 1388g (with cover)



Accessories:
- Flexible folding sun shade cover: 1piece
- Battery plate bracket: 1piece
- Battery plate (F-970, QM91D, DU21 or LP-E6,choose 2 of them。We would send F970 and LP-E6 as default, if you need other option, please contact us when you order. )
- HDMI A/A cable: 1piece
- DC 12V power adapter (XLR connector): 1piece
- TALLY connector: 1piece
- Manual: 1copy
- Gimbal bracket : 1piece
- V-mount battery plate (optional): 1piece
- Anton Bauer mount battery plate (optional): 1piece
