  • LILYGO T-Keyboard T-Deck ESP32-S3 with 2.8" Touch Screen (H666-Mesh White Keyboard without LoRa)

LILYGO T-Keyboard T-Deck ESP32-S3 with 2.8" Touch Screen (H666-Mesh White Keyboard without LoRa)

Availability: In stock, usually dispatched in 1 business day

  • Price:$76.09
  • Price in reward points: 761 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $74.57 $73.05 $70.76 $67.72 Contact US
Quantity:
Buy it now Add cart

You might like

LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H668-Mesh White Keyboard 433MHz)

LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H668-Mesh White Keyboard 433MHz)

$87.13

(0)
LILYGO T-Keyboard T-Deck ESP32-S3 with 2.8" Touch Screen (H641-Mesh Black Keyboard without LoRa)

LILYGO T-Keyboard T-Deck ESP32-S3 with 2.8" Touch Screen (H641-Mesh Black Keyboard without LoRa)

$74.37

(0)
LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H665-Mesh White Keyboard 868MHz)

LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H665-Mesh White Keyboard 868MHz)

$87.47

(0)
LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H667-Mesh White Keyboard 915MHz)

LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H667-Mesh White Keyboard 915MHz)

$87.98

(0)
LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H623-Mesh Black Keyboard 868MHz)

LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H623-Mesh Black Keyboard 868MHz)

$87.47

(0)
LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H642-Mesh Black Keyboard 915MHz)

LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H642-Mesh Black Keyboard 915MHz)

$87.98

(0)
LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H643-Mesh Black Keyboard 433MHz)

LILYGO T-Keyboard T-Deck ESP32-S3 Development Board w/ 2.8" Screen (H643-Mesh Black Keyboard 433MHz)

$87.13

(0)
White DP-666 TEF6686 FM/LW/MW/SW Full Band Radio High Sensitivity DSP Receiver Support Secondary Development

White DP-666 TEF6686 FM/LW/MW/SW Full Band Radio High Sensitivity DSP Receiver Support Secondary Development

$75.63

(0)
LILYGO T-Keyboard T-Deck ESP32-S3 with 2.8" Touch Screen (H666-Mesh White Keyboard without LoRa)

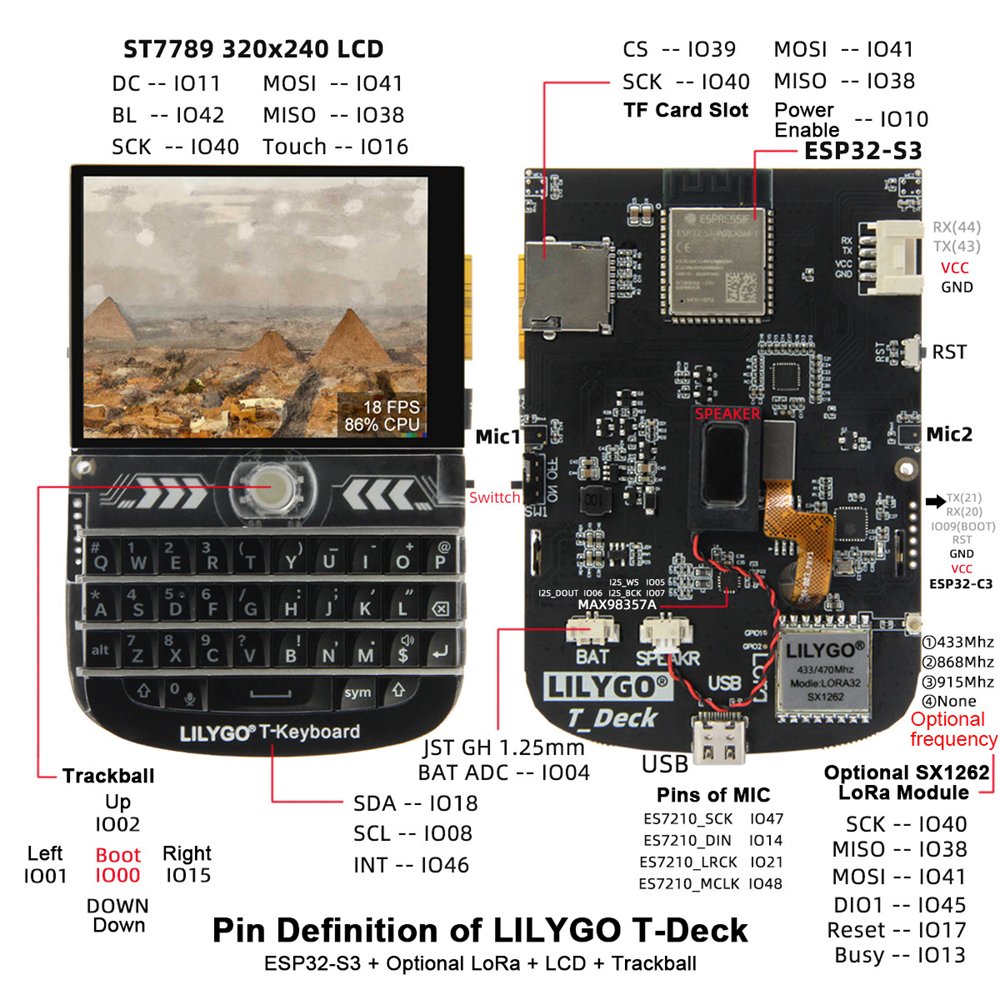

Details of T-Deck:
MCU: ESP32-S3FN16R8 Dual-core LX7 Microprocessor
* Wireless communication: 2.4GHz Wi-Fi & Bluetooth 5 (LE)
* Development environment: For Ar-duino, PlatformIO-IDE and Micropython
* Flash: 16MB; PSRAM: 8MB; Battery detection PIN: IO04

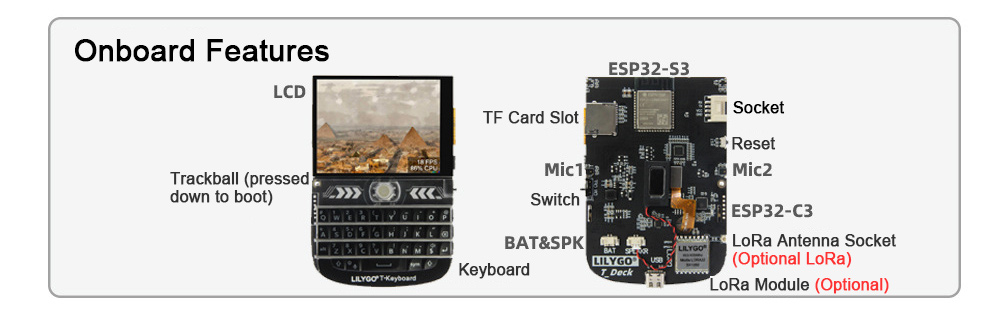

* Onboard functions: trackball, microphone, and speaker

2.8-Inch ST7789 SPI Interface IPS LCD
* Resolution: 320x240
* HD IPS color screen with full viewing angle

SX1262 LoRa Transceiver (Optional Chip)
* Transmit power: +22dBm
* Optional frequency: 433Mhz/868Mhz/915Mhz

Product Code:

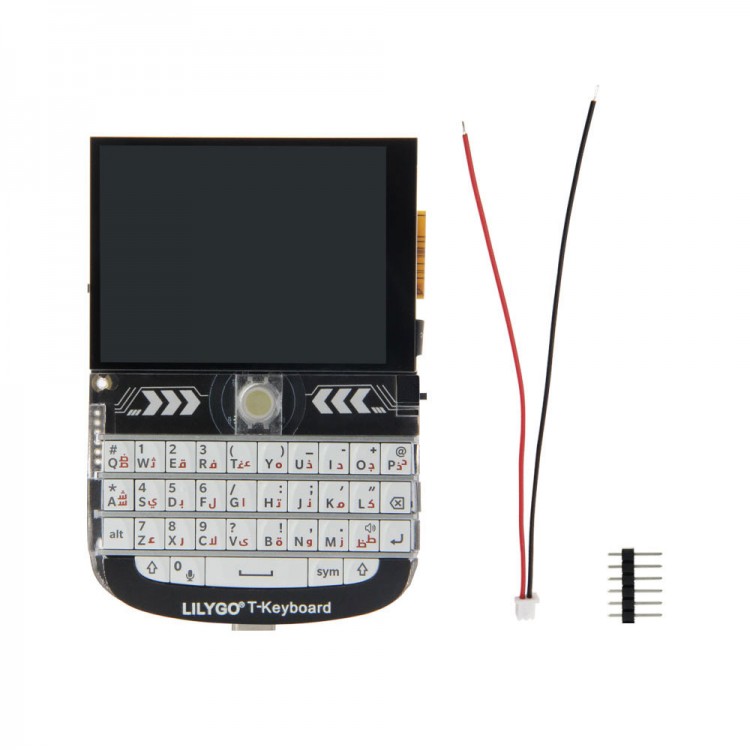

Package Included (H666-Mesh):
* 1 x T-Deck
* 1 x Pin Header (6-pin)
* 1 x Battery Cable

Packaging Details:
* Weight: 0.5kg

Note:
* Battery is not included.
* Other items pictured below are not included, for demonstration purposes only. Thank you for your understanding!
