LILYGO T5 4.7" E-Paper Display 18650 Holder ESP32 V3 16MB FLASH 8MB PSRAM WIFI/Bluetooth For Arduino

Availability: Out Of Stock

  • Price:$51.73
  • Price in reward points: 517 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $50.70 $49.66 $48.11 $46.04 Contact US
Quantity:

LILYGO T5 4.7" E-Paper Display 18650 Holder ESP32 V3 16MB FLASH 8MB PSRAM WIFI/Bluetooth For Arduino

Description:

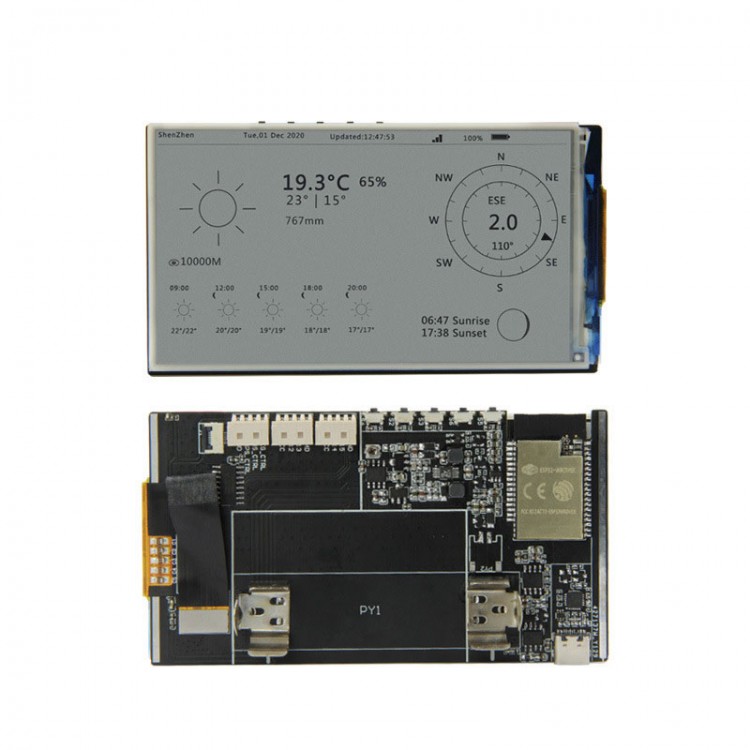

LILYGO T5 4.7-inch E-Paper is another version of the T5 series of electronic ink screens. The T5 series of ink screen versions include 1.02, 1.54, 2.13, etc., from small to large electronic ink screen versions.

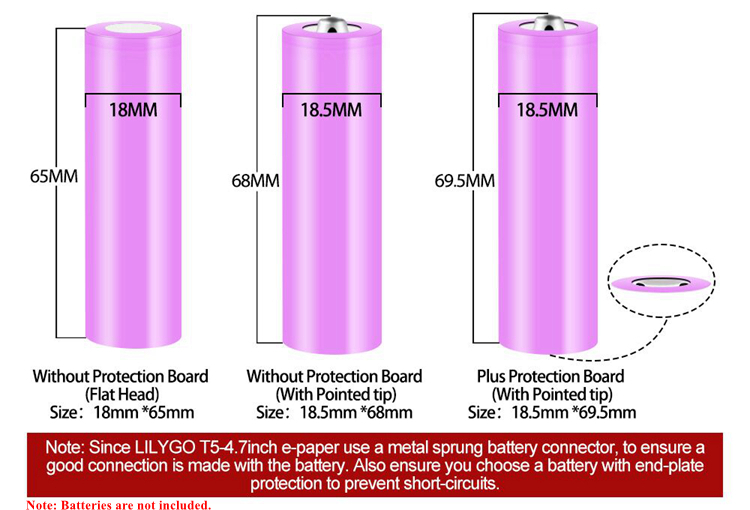

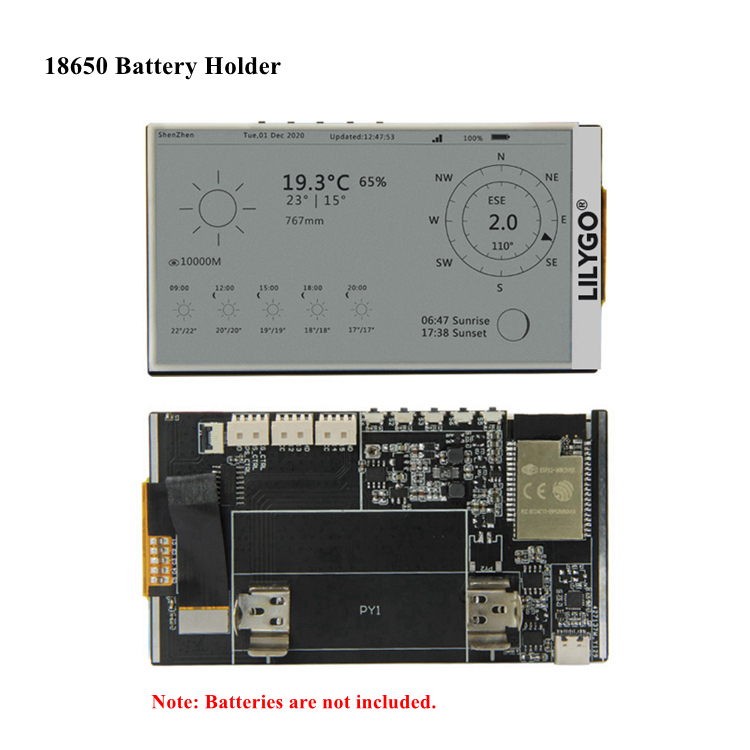

We have been committed to low-power design optimization. This 4.7-inch version continues the low-power design, the sleep mode current is about 240uA, and two optional battery modes are designed on the back. One is PH2.0 pitch 2pin interface, and the other is 18650 battery metal connector. Two power supply modes for you to choose.

A 6pin touch screen interface is reserved as an optional accessory to facilitate your application. There are 5 buttons reserved on the side, 3 of which are custom buttons, which can define functions flexibly. One is the reset button.

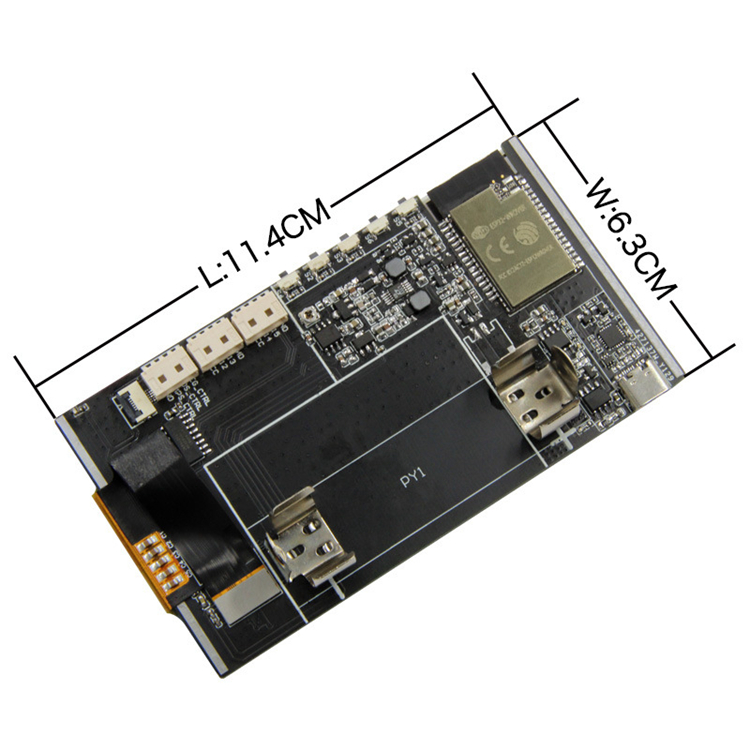

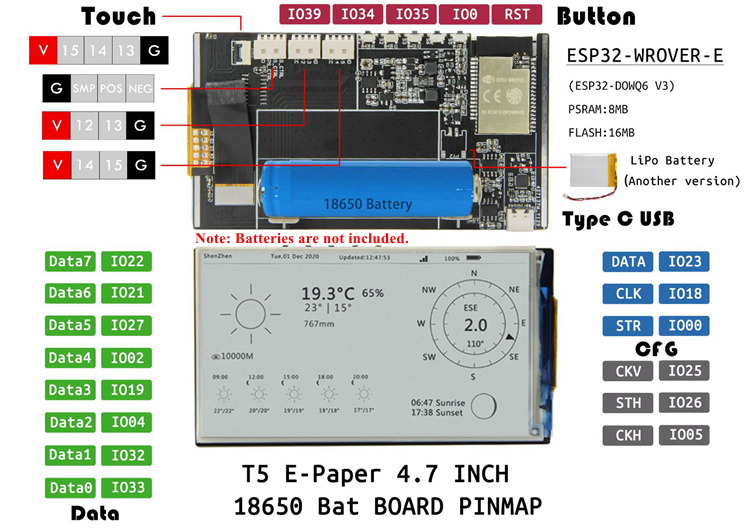

LILYGO T5 4.7-inch E-Paper Motherboard Parameters:
- ESP32-WROVER-E (ESP32-D0WDQ6 V3)
- 16MB FLASH
- PSRAM 8MB
- USB to TTL CP2104
- 4.7 inches, 540(H)X960(V) resolution, 16 Gray Level ED047C1, and supports partial refresh
- 960x540 resolution 8-bit parallel port 4.7 inch ink screen
- 4pin 2.0 molex 4 p 53015-0410 x3
- RST button x1
- Custom button x3
- TYPE-C
- 6pin FPC touch screen expansion connector
- Charge and discharge protection chip
- USB input power supply 5V at 1A
- 4pin expansion interface output is 3.3V
- Sleep mode current at ~170uA

Development Software:
- For Arduino
- IDF
- For Micropython

Application Scenario:
- Desktop weather station
- STEM Education
- IOT device

Github Link:
https://github.com/Xinyuan-LilyGO/LilyGo-EPD47

Package Included:
- 1 x E-Ink Display

Note:
- Batteries pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
