LILYGO TTGO Smart Bracelet Smart Watch 0.96" IPS Screen T-Wristband NRF52832 MPU9250 105Mah Kit

LILYGO TTGO Smart Bracelet Smart Watch 0.96" IPS Screen T-Wristband NRF52832 MPU9250 105Mah Kit

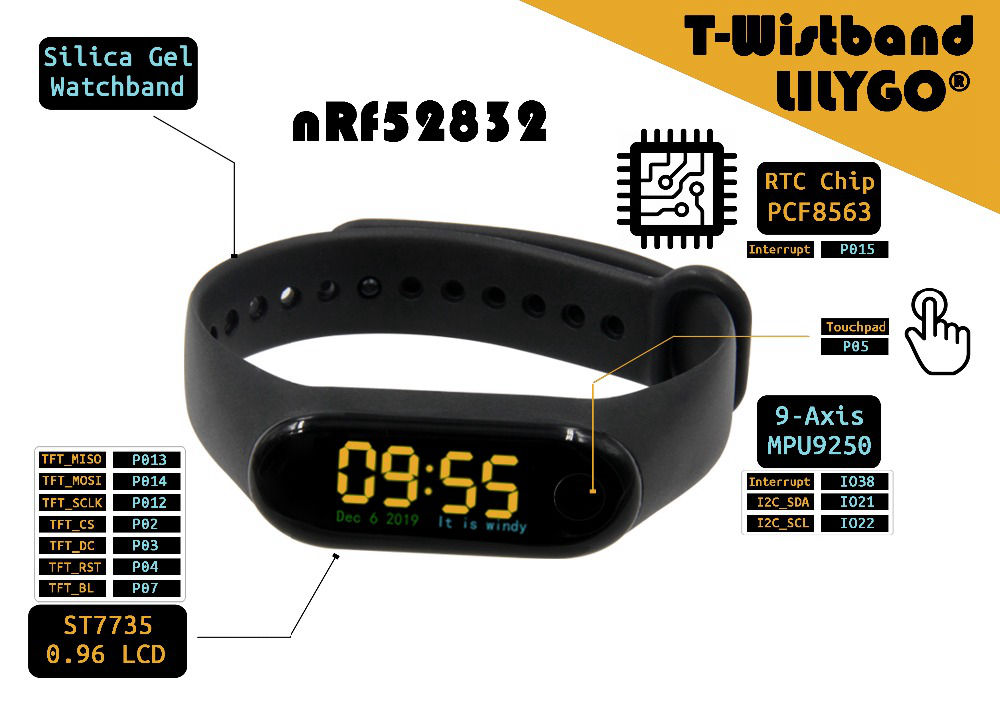

Product Parameters:
- Main Chip: NRF52832
- Flash: 4MB
- IMU: MPU9250
- IPS Screen: resolution 80x160; 0.96"; ST7735 driver
- Clock Chip: PCF8563
- Touch Button: TTP223
- Battery: 105mAh rechargeable lithium battery
- Charging Chip: TP4054
- Antenna: Built-in WiFi Ceramic Antenna
- Expansion/Program Download Interface: 0.3 pitch 13pin FPC socket
- Bracelet size: About 251.77 x 19.30 x 12.15mm/9.9 x 0.8 x 0.5"

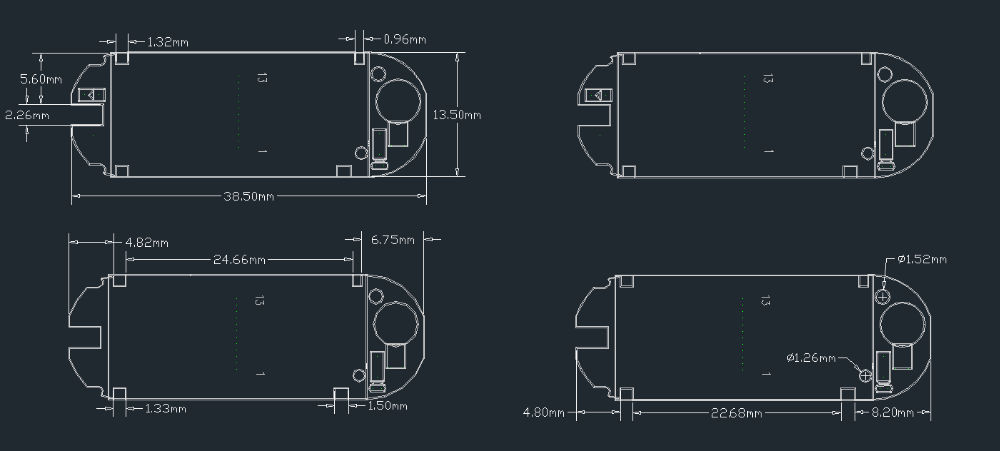

- T-Wristband host size: About 47.07 x 18.10 x 12.10mm/1.9 x 0.7 x 0.5"
- Processor: LX6 dual-core processor for Tensilica, clocked at 240MHz, computing power up to 600DMIPS
- Built-in Chip: 520KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE Bluetooth low energy)

Know More Information:
https://github.com/Xinyuan-LilyGO/LilyGo-T-Wristband-NRF52

Package Included:
- 1 x T-Wristband NRF52832 MPU9250

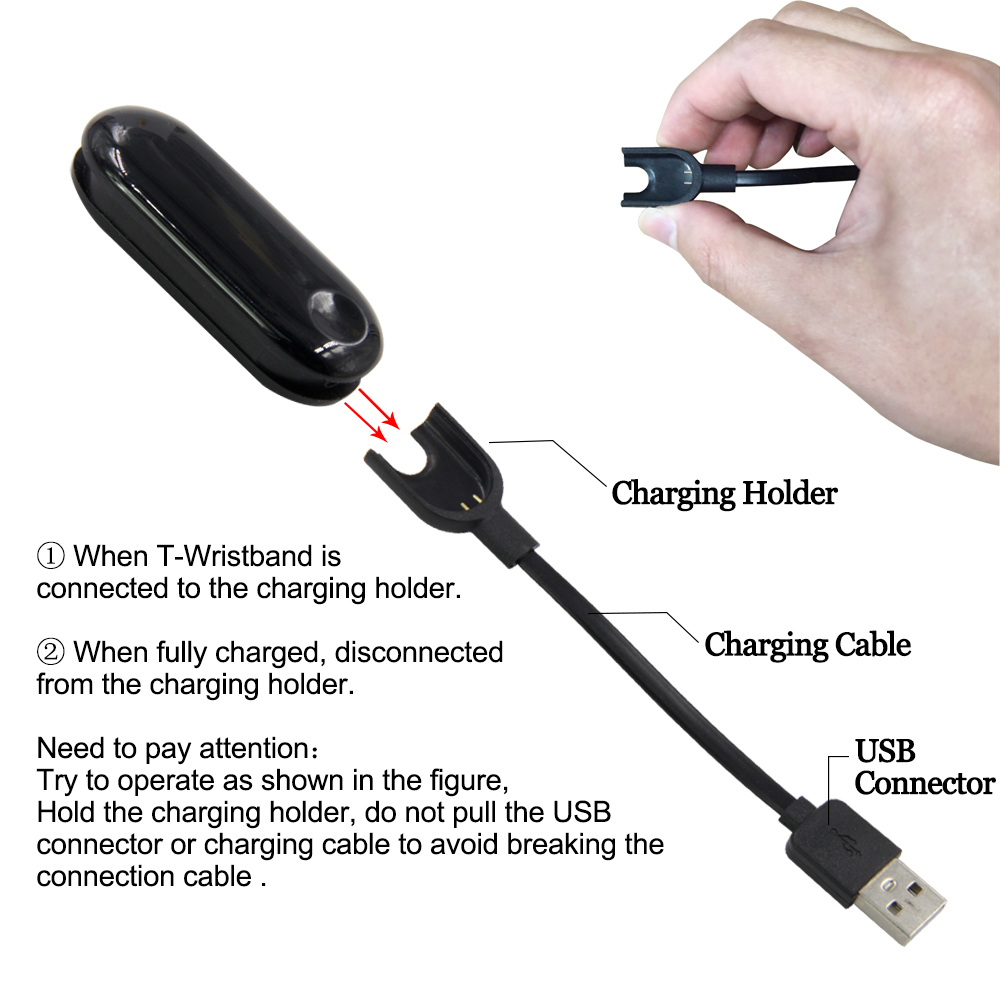

- 1 x Charging Cable
- 1 x Silicone Strap
- 1 x Expansion Board
- 1 x FPC Cable

Note:
- Assembly is needed.
