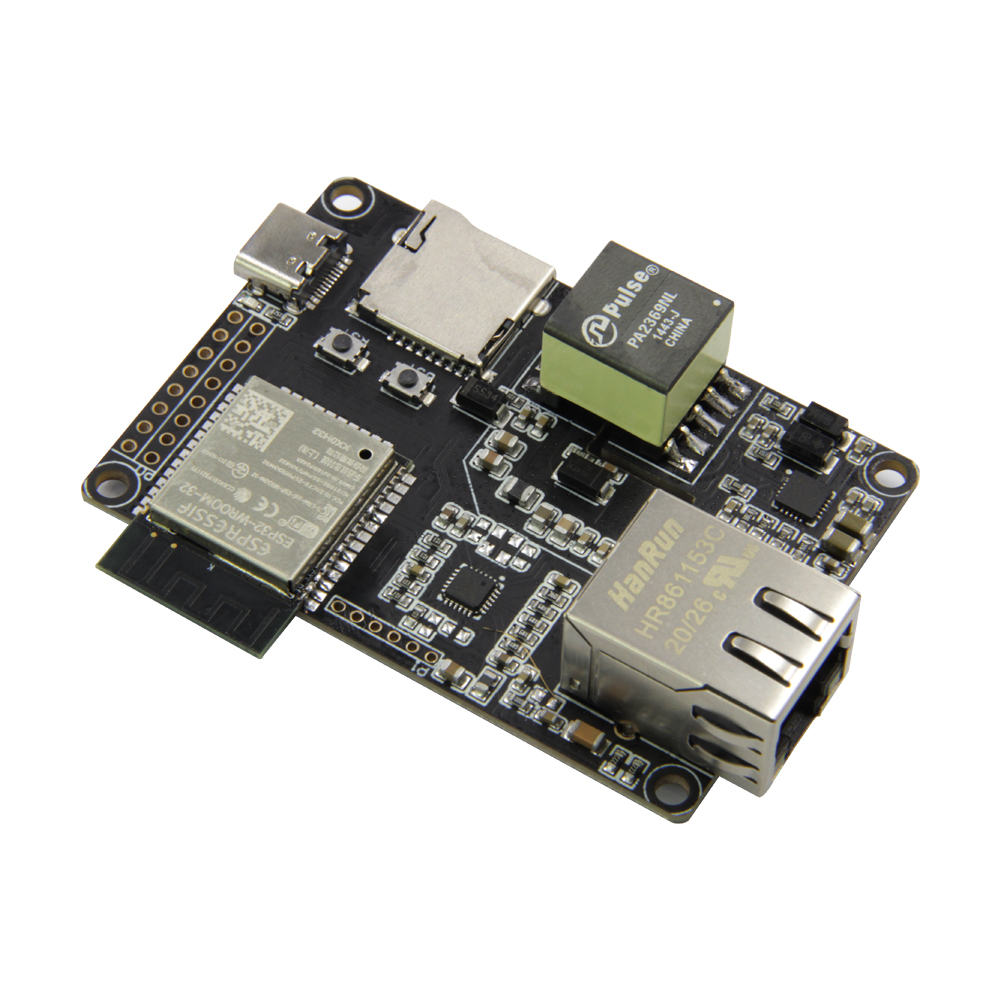

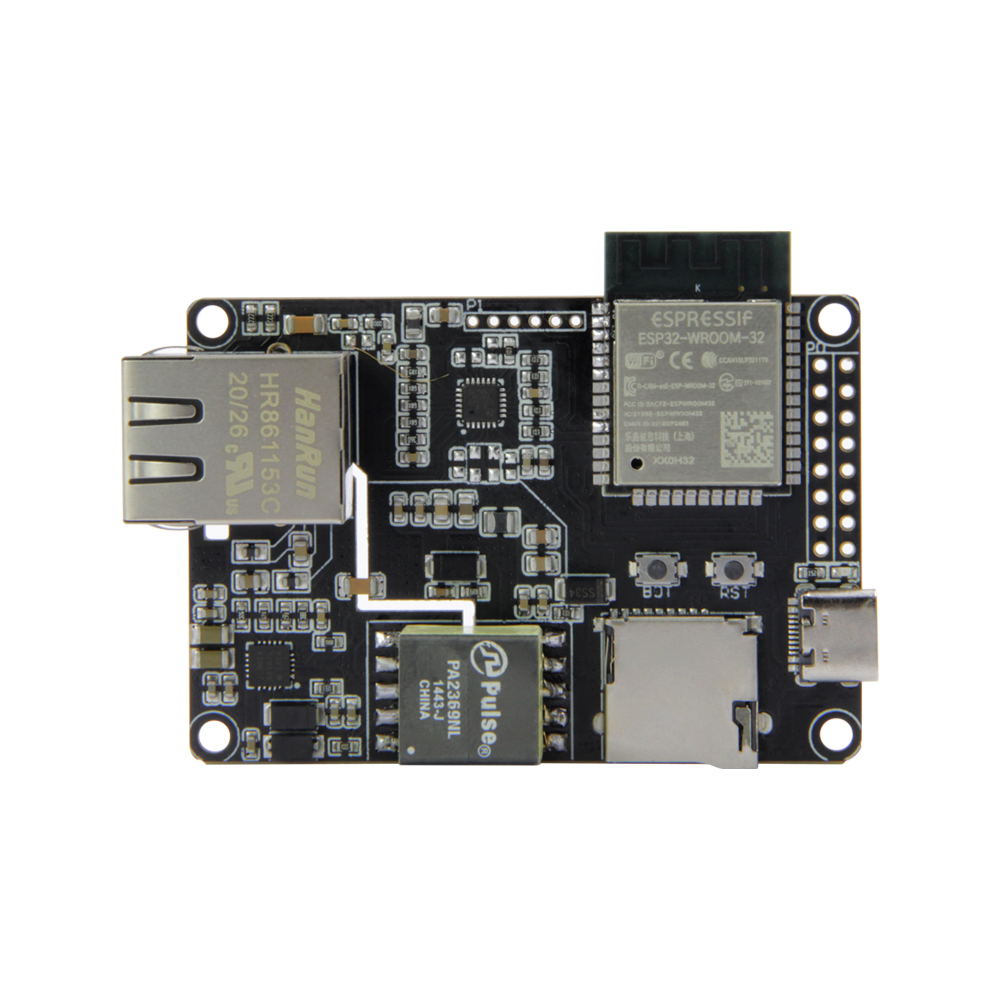

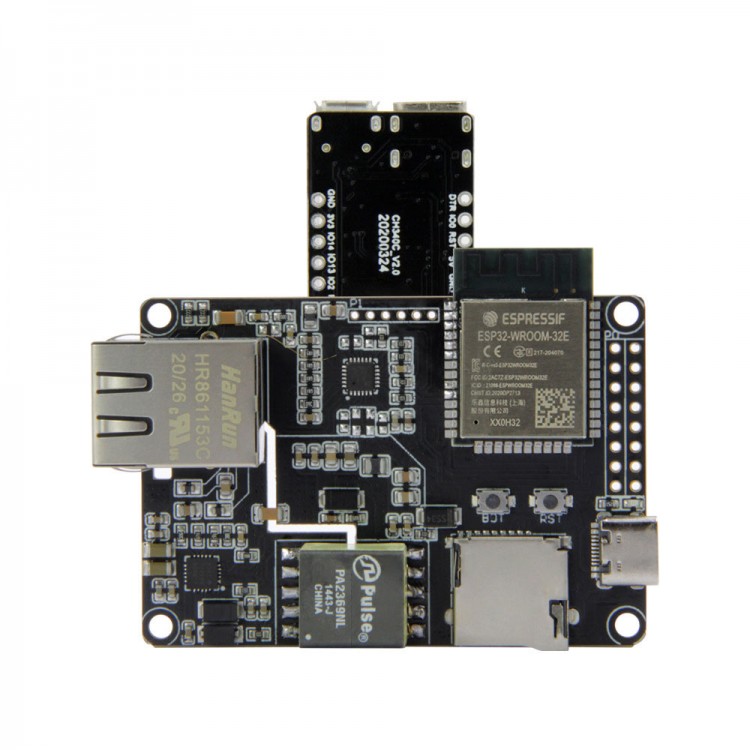

LILYGO TTGO T-Internet-POE ESP32 Ethernet Adapter and Downloader Expansion Board T-Internet-POE Downloader

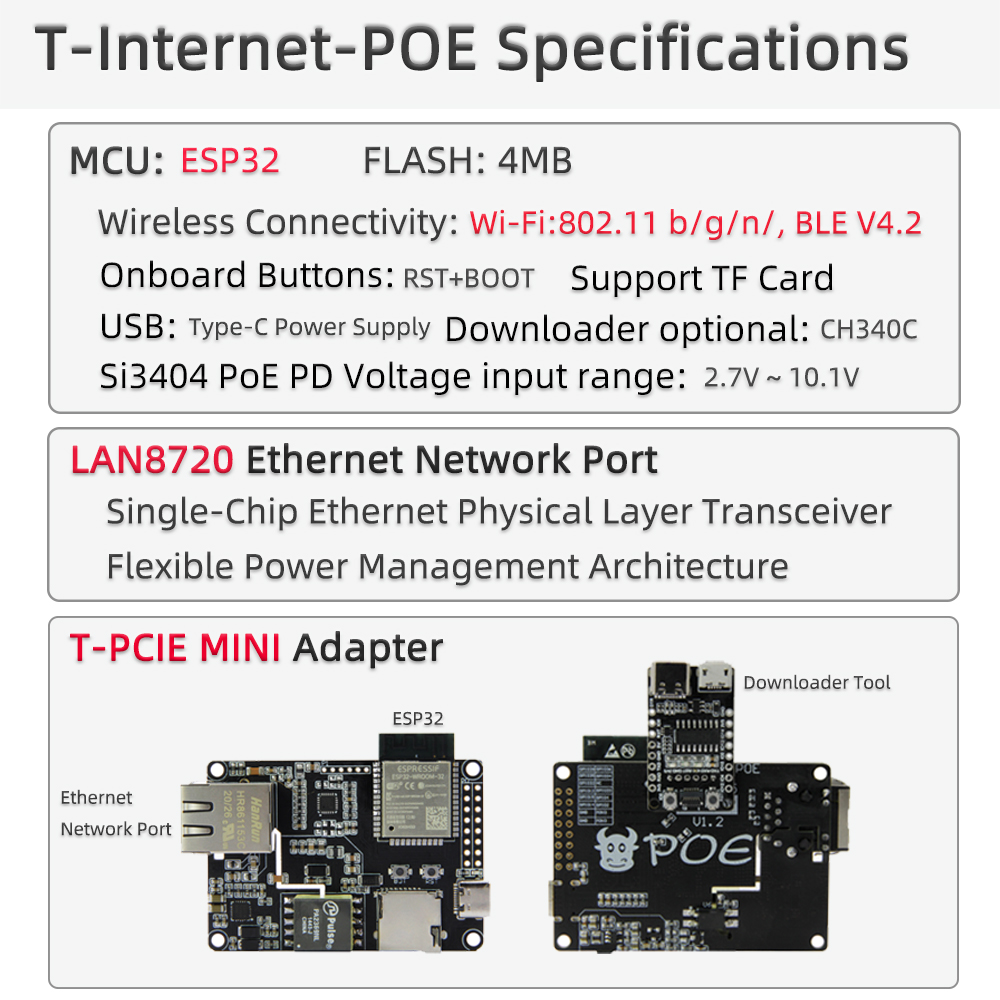

Description:
- Compatible with POE mode A (powered by data pair) and POE mode B (powered by backup pair) and auto MDIX, allowing the use of straight and crossover for Ethernet cables.

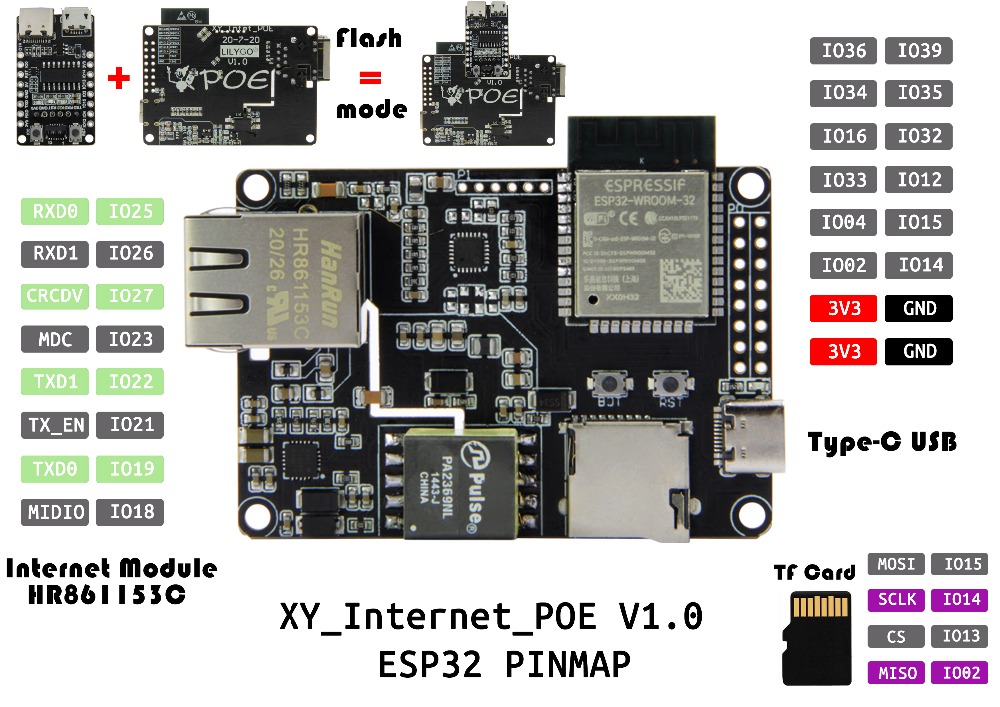

- 20 needle footprint with 3.3V, V+ power and 15 ESP32GPIO are available for your application.

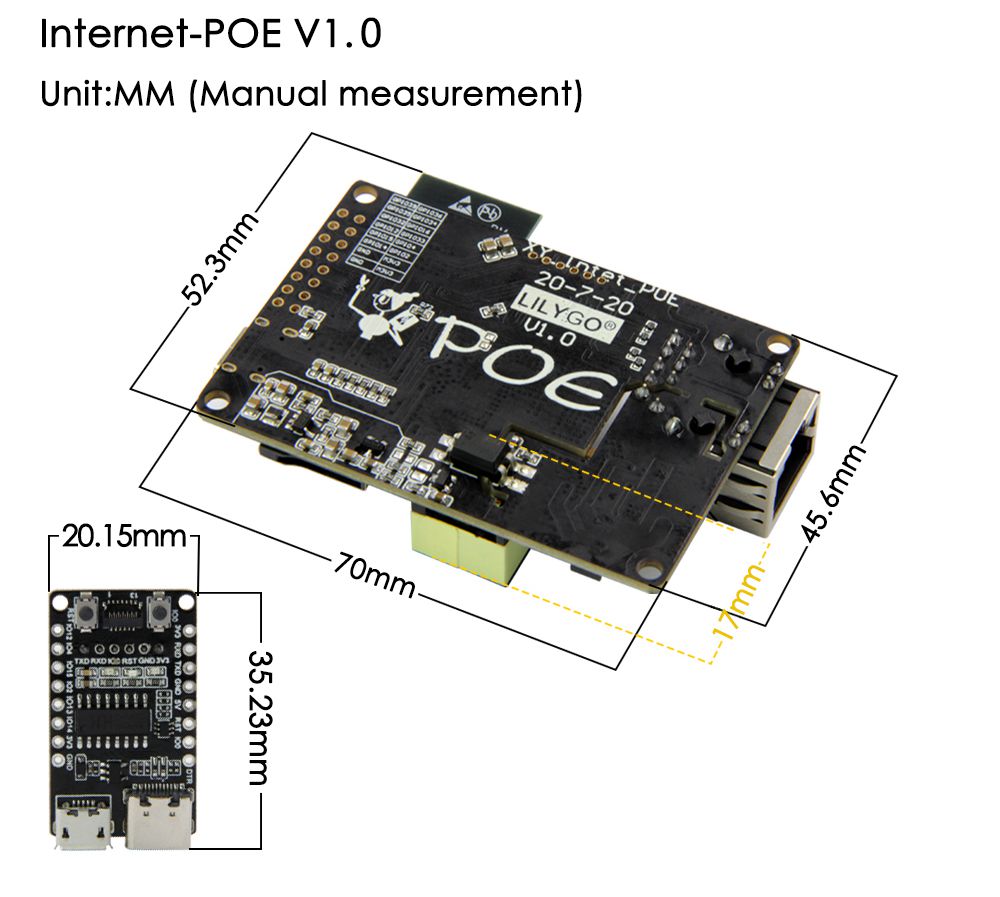

- The compact 75mm by 40mm footprint is compatible with 4 mounting holes of ordinary M2.5 or 4-40 screws.
- A small programming/USB serial console sub-module has been created so that the Inter-POE module can be easily programmed to meet the user's application needs.
- https://github.com/Xinyuan-LilyGO/LilyGO-T-ETH-POE.
Package Included:
- 1 x T-Internet-POE
- 1 x Double Row Pin

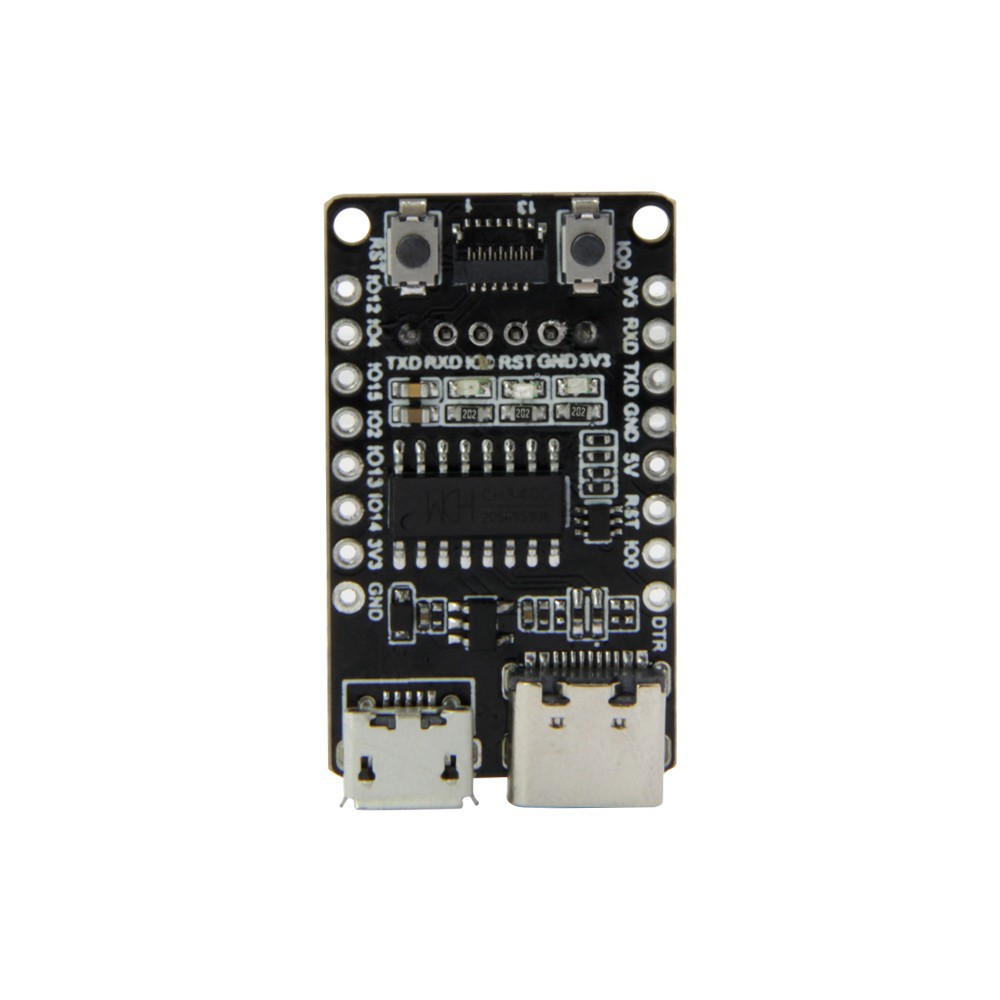

- 1 x Downloader Expansion Board
Note:

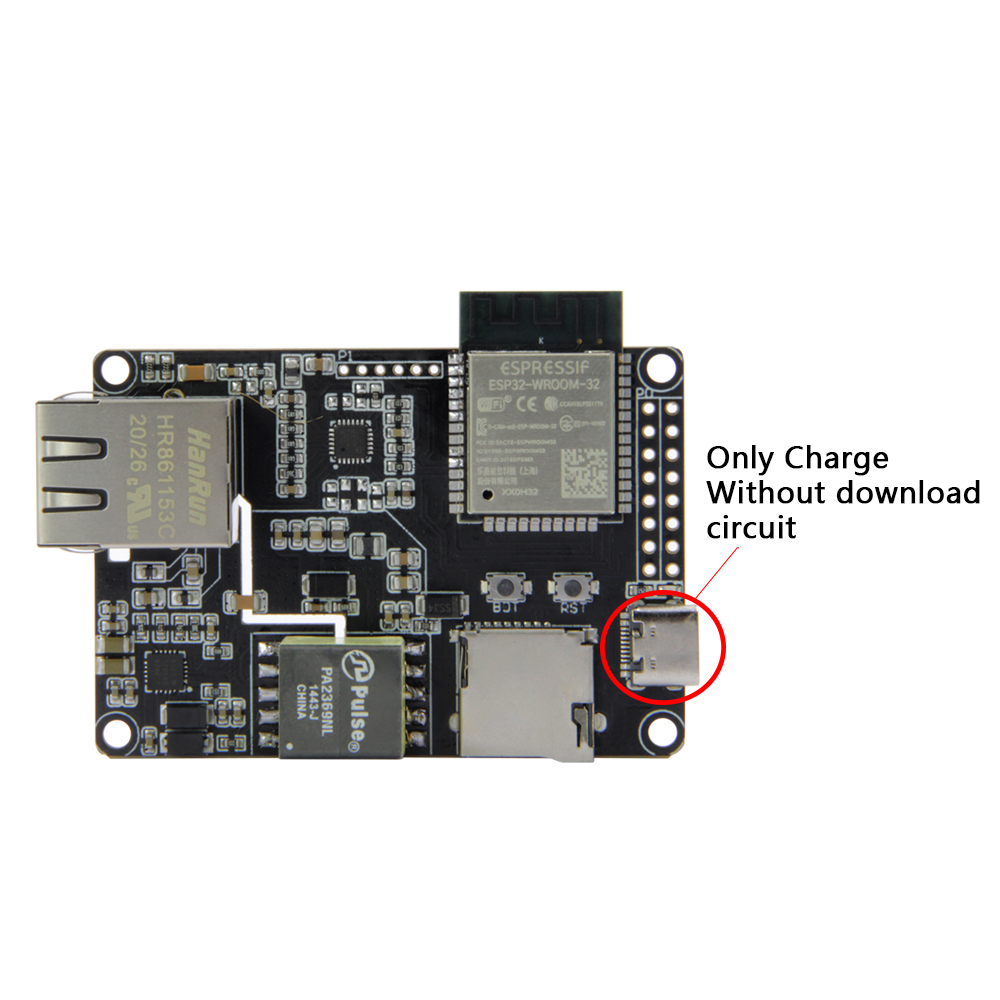

- The USB interface only has a charging function, the product needs downloader to program.

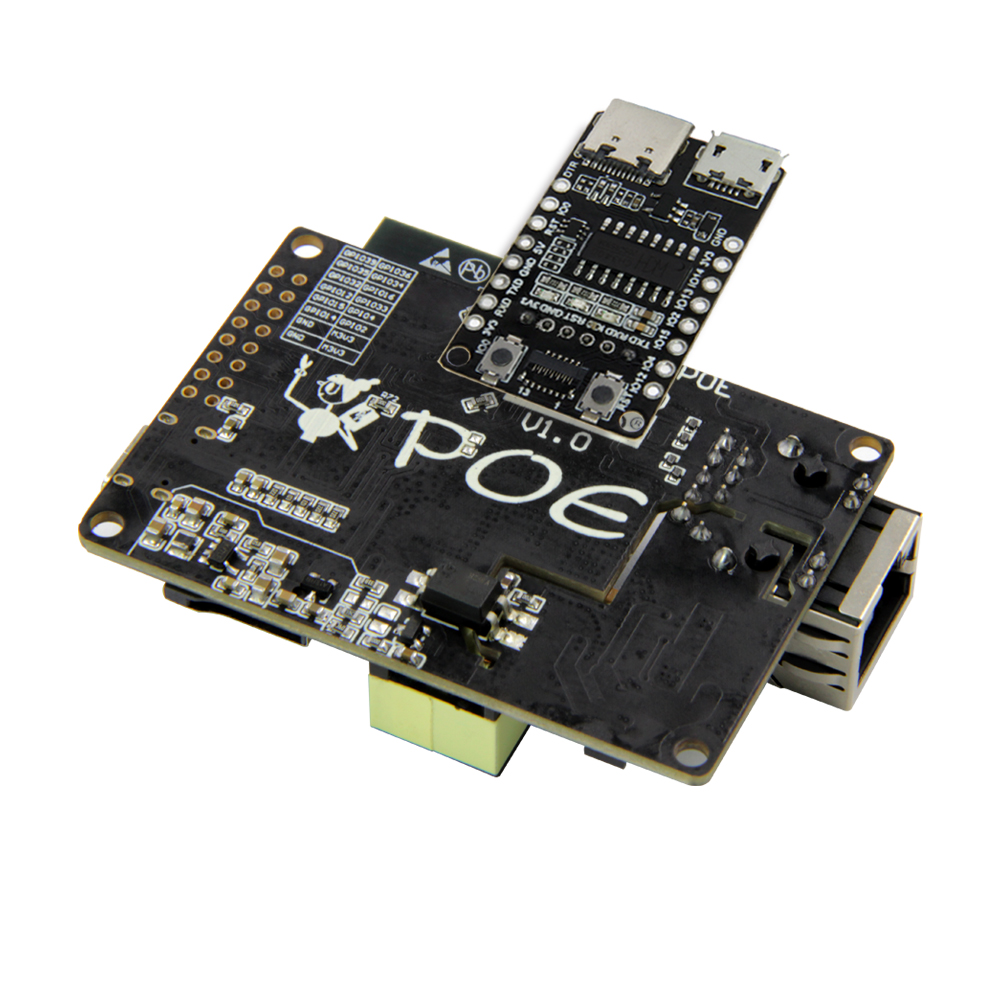

- This product needs to be used with Downloader Expansion Board.
- This option is equipped with Downloader Expansion Board.
