LILYGO TTGO T5 V2.3.1 2.13" E-Paper Screen New Driver Chip GDEM0213B74 Wifi Bluetooth Module ESP32

LILYGO TTGO T5 V2.3.1 2.13" E-Paper Screen New Driver Chip GDEM0213B74 Wifi Bluetooth Module ESP32



Attention:
Based on the original version, the new version removes all LED, further reducing power consumption. And it consumes only 300uA.

Overview:
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features:
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (examples for Arduin-esp32)

Specifications:
- Operating voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Display color: black, white

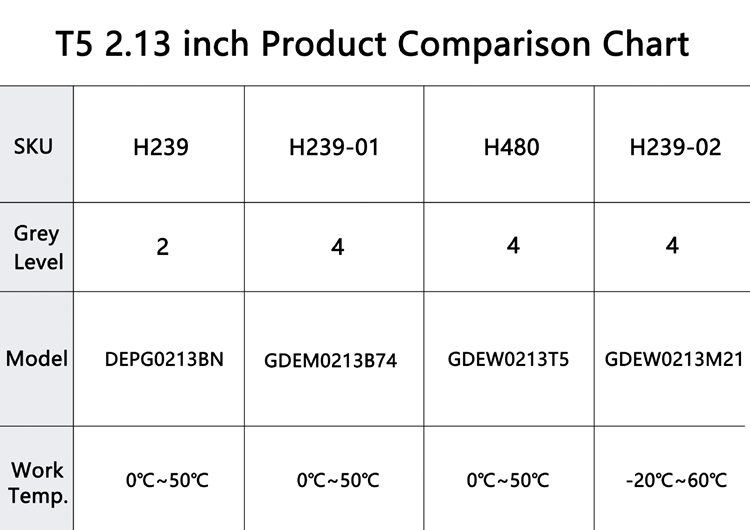

- Grey level: 4
- Full refresh time: 8s
- Refresh power: 26.4mW (typical value)
- Driver chip: SSD1680
- Display Driver: GDEM0213B74

ESP32 Features:
- Immersive gold craft
- Highly cost-effective
- Small size, easy to embed other products
- Powerful functions support for LWIP protocol, Freertos
- WiFi supports three modes: AP, STA and AP + STA
- Support for Windows system (cygwin and msys32) and Linux system
- Support for Arduino-ide, ESP-IDF, Micropython multiple development environments
- Support for Lua program, easy development

2.13"/DES electronic paper/ultra wide temperature:
- This is a 2.13-inch DES electronic paper display, with a resolution of 212x104 and communication via SPI interface
- The driver IC includes gate buffer, source buffer, time control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and each panel provides a frame. Working temperature: 0℃ to 50℃
- It can be used in cold environment and sunlight, it is an excellent choice for shelf label, smart label, smart home application, industrial tool, smart card, outdoor equipment application
- Power consumption: ultra-low power consumption
- Viewing angle: 180 degrees
- Use in the sun: support

Product Features:
- Manufactured using new technology: DES, DES has the following characteristics: Compared with other similar products, DES has higher contrast and better display effect (DES products are greater than 1:45, ordinary EPD products are less than 1:25)
- Ultra-wide working temperature: 0℃ to 50℃ (Working temperature range of conventional monochromatic electronic ink screen: 0℃-50℃, three-color working temperature 0℃-40℃, ultra-low temperature working temperature: -25℃ to 25℃)
- It can be used in the sun and cold environment

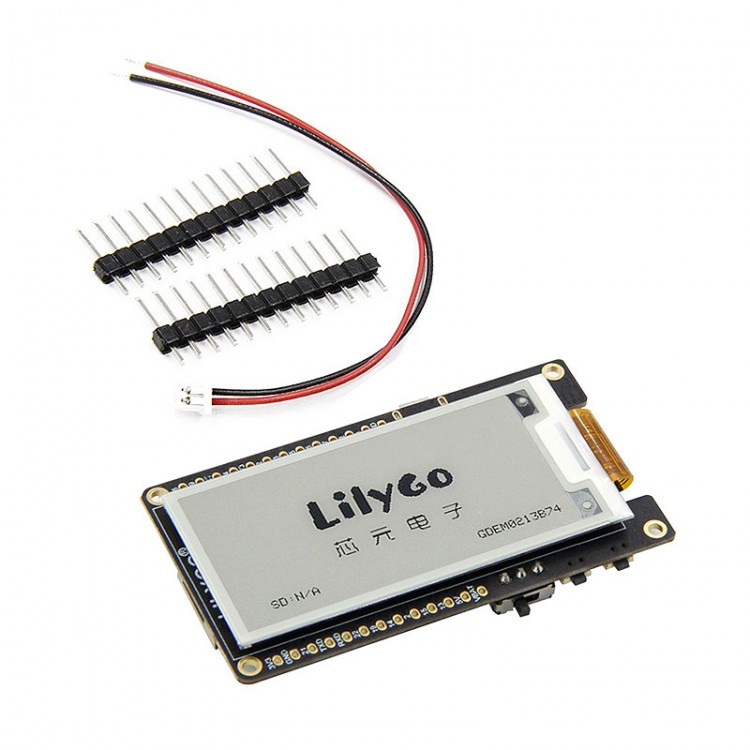

Package Included:
- 1 x T5 V2.3.1 ESP32 Module
- 1 x Power Cable
- 2 x Pin Headers
