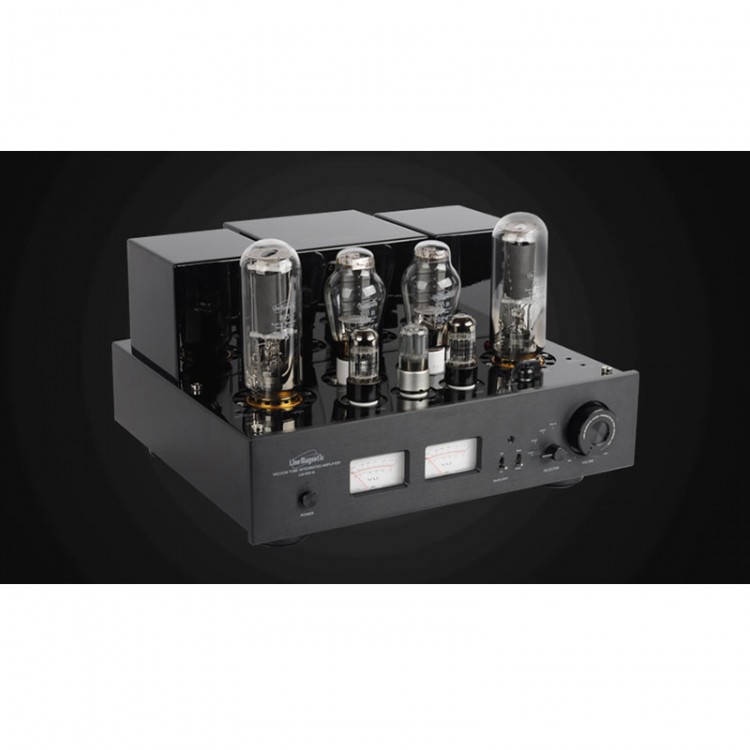

Line Magnetic Audio LM-508IA 48W+48W Tube Amplifier Integrated Amplifier Tube Amp with Two VU Meters
Features:
- LM-508IA integrated power amplifier
- Craftsmanship and light luxury design
- Aircraft-grade aluminum panel with a brushed finish. The appearance is atmospheric
- Precision wiring and handmade
- Stable sound stage and delicate and soft sound
- The tube amplifier has a better and full sound
- High-quality tubes allow you to listen to natural and soft sounds: A 6SL7 is used for the preamp as the input buffer, and then a 6SN7 for each channel is used for secondary amplification. The pusher tubes 300B and 805 tubes for power amplification are custom-made
- Manual scaffolding technology basically ensures the electrical performance of the contact points, reduces the length of wires and can reasonably avoid the mutual inductance between the various interfering devices
- Four-stage feedback can be adjusted freely: The "N.F.B" selector on the right side of the panel provides 4 levels of feedback for you to choose from
- Dual VU meter for real-time monitoring: These two meters can indicate output level. This function can be switched by the Bias and Meter switch on the panel
- EI transformers: Uses 2 EI output transformers with high quality broadband and high sound quality. The power supply adopts EI transformers, and its frequency response is 20Hz-31kHz
- Audiophile-grade tubes: The 300B tubes push the 805 tubes. Stable performance and the sound is round and full
- All the terminals are custom-made
- 3 sets of output terminals with different impedances: There are 4Ω, 8Ω and 16Ω output terminals on its rear panel. They can be used with some loudspeakers with high impedance
Product Parameters:
- Model: LM-508IA
- Tubes: 6SL7*1, 6SN7*2, 805*2 and 300B*2
- Harmonic distortion: 1% (1Hz)
- Output power: 48W+48W (single-ended Class A working state)
- Input sensitivity: LINE 300MV PRE1000MV
- Signal-to-noise ratio: 87dB
- Frequency response: 20KHz~31KHz (-1.5dB)
- Input impedance: 100kΩ
- Output impedance: 4Ω, 8Ω and 16Ω
- Power consumption: 400W
- Net weight: 40kg
- Volume (WxDxH) :(430x420x270) mm³

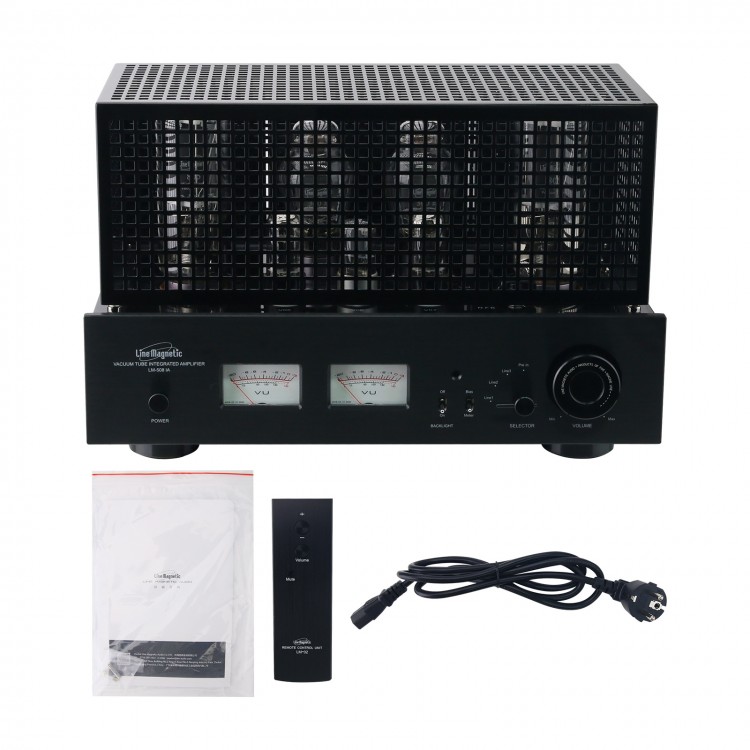

Package Included:
- 1 x Set of Tube Amplifier
Packaging Details:
- G.W.: 49kg
Note:
- Only 220V is available.
