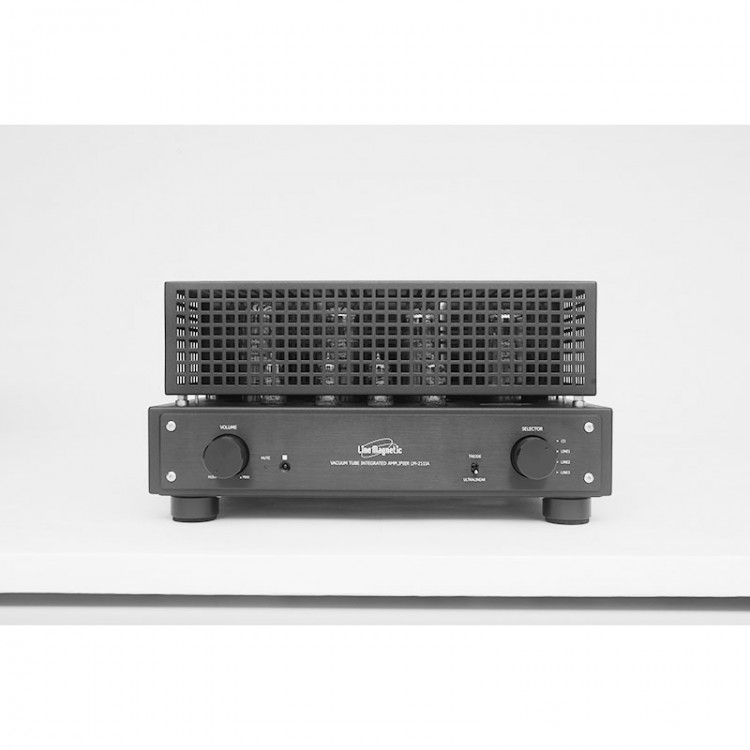

Line Magnetic Tube Amplifier LM-211IA Integrated EL34*4 Push-Pull Tube Amplifier 32W*2(Ultralinear) 15W*2(Triode)-Black


Product features:
-  Hand-made construction with the finest point-to-point wiring.
- Specially designed EI transformer for power supply.
- Two EI output transformers with wide bandwidth are applied.
- Two 12AX7s and 12AU7s are used in the preamp stage.
- Four EL34 tubes are used for AB1 push-pull amplification.
- Triode and Ultralinear selection.
- SoftStart and time-delay circuit. (30 seconds)
- ALPS volume control and Realcap capacitors are applied.
-  Remote control for all functions.
-  User bias control is accessible on top of the amplifiers panel with true ampere meter.

Specification:
-Power output:15W+15W(RMS Triode operation)
                32W+32W(RMS Ultralinear operation)
-THD:1%(1kHz)
-Frequency response:10Hz~50kHz(-1.5dB)
-S/N Ratio:88dB
-Input Impedance:100kΩ
-Output impedance: 4 Ω, 8 Ω
-Input Sensitivity:200mV
-Tube Complement:12AX7×2、12AU7×2、EL34×4
-Dimension (WxDxH):376mm x 345mm x 191.5mm
-Net weight: 19.6kg
-Power Consumption: 230w
-Working conditions: temperature: 0 ℃ to 40 ℃ Moisture: 20% ~ 80%
-Storage conditions: temperature: - 20 ℃ ~ 70 ℃ Moisture: 20% ~ 90%
