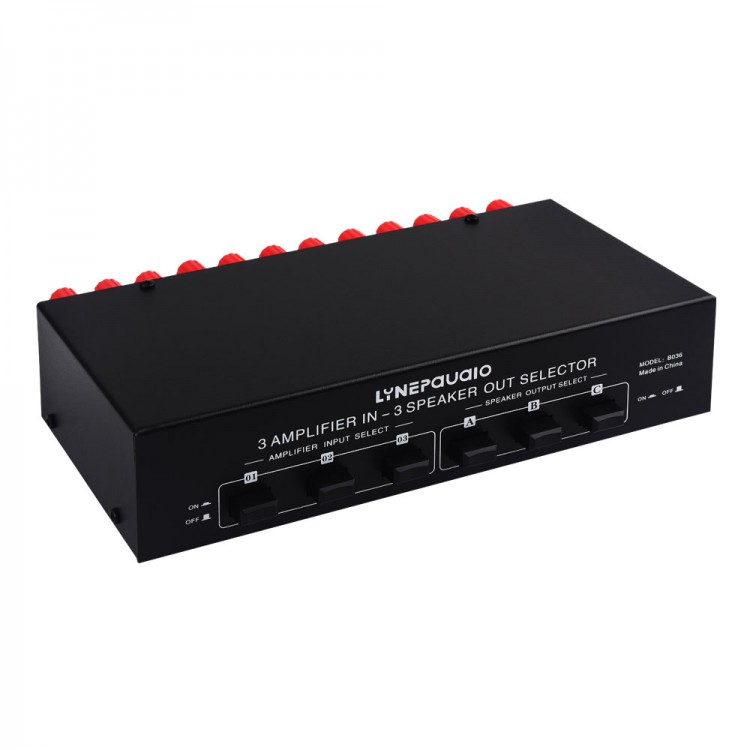

LINEPAUDIO B036 Amplifier Speaker Switcher Amplifier Speaker Selector Supports 3 Input and 3 Output

LINEPAUDIO B036 Amplifier Speaker Switcher Amplifier Speaker Selector Supports 3 Input and 3 Output

Features:

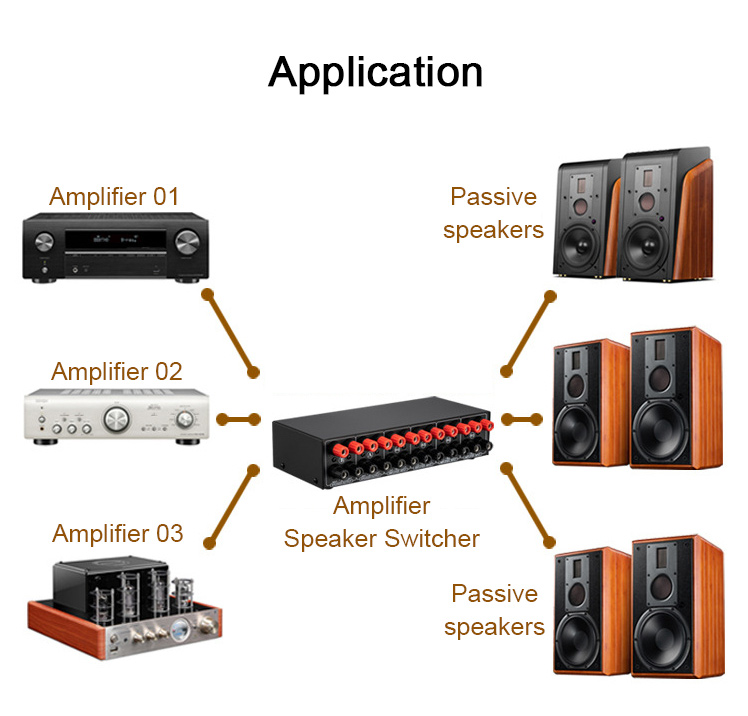

- Amplifier speaker switcher enables 3 sets of input and 3 sets of output.

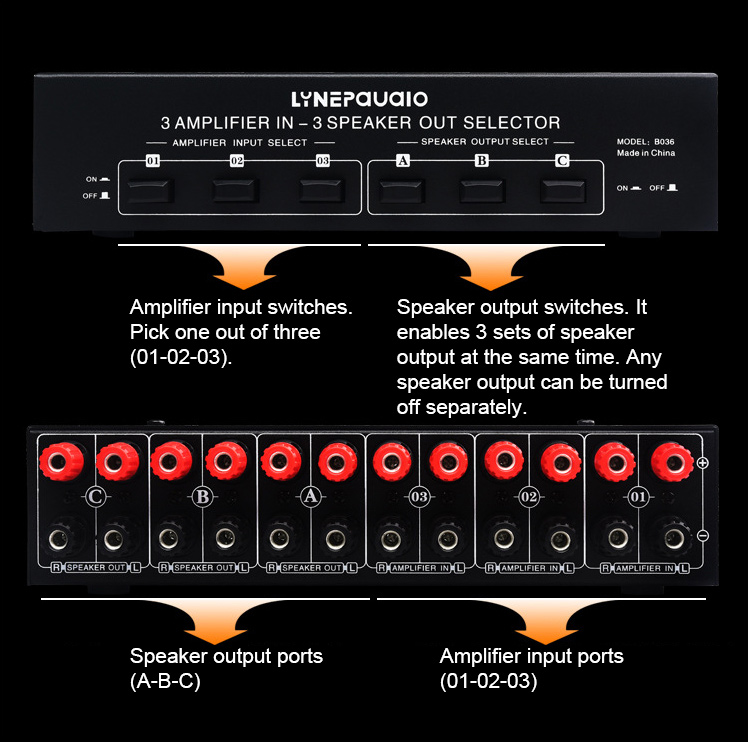

- Manually choose input of three amplifiers. Just pick one out of three.

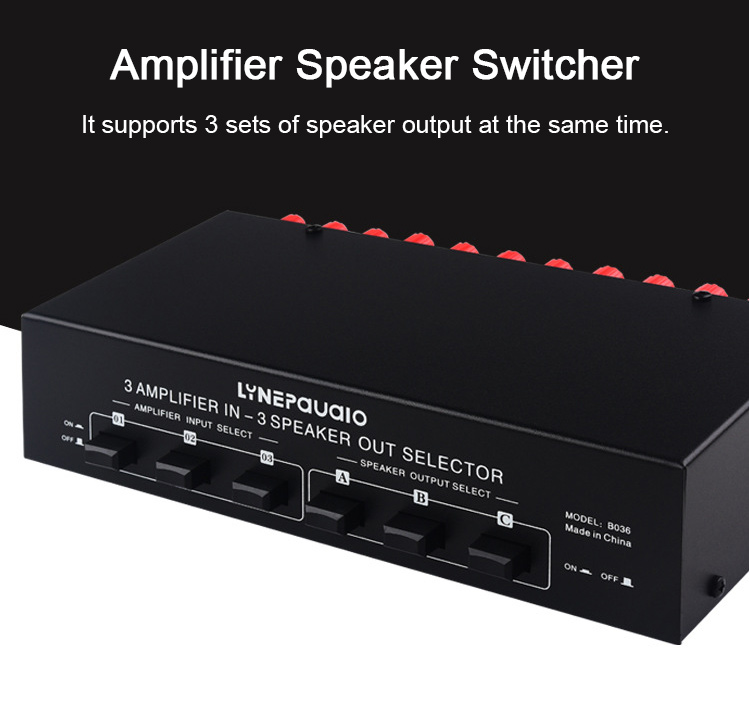

- Manually turn on/off output of 3 pairs of speakers. Independent switches of speakers allow 3 sets of speakers to be used at the same time. And any set of speakers can be turned on/off.

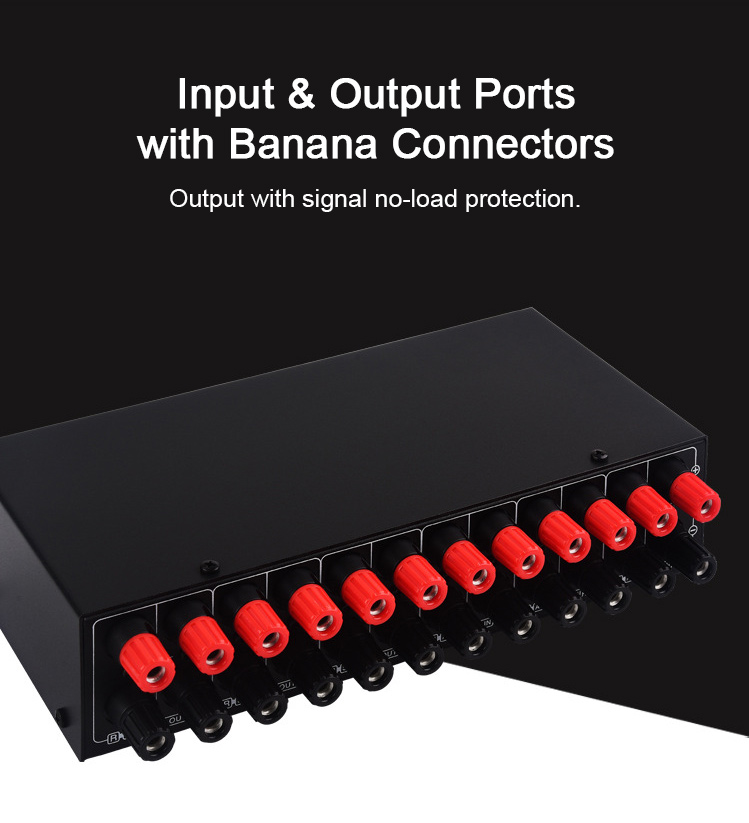

- Input and output ports are designed with banana connectors. Just plug and play, without power supply. Output with signal no-load protection.
- Power supply is not required. Plug and play. There is no loss for input and output.
- There is an alloy steel shell. Its compact size makes it fit any system and compatible with all types of power amplifier and passive speakers.
- It enables stable signal switching. Interference and noise will be not generated among channels.

Specifications:
- Model number: B036
- Channel power: Each channel supports power up to 300W
- Input channel: support stereo input of 3pcs amplifiers (5.1 and 7.1 amplifiers are not supported)
- Output channel: support output of 3 pairs of passive speakers

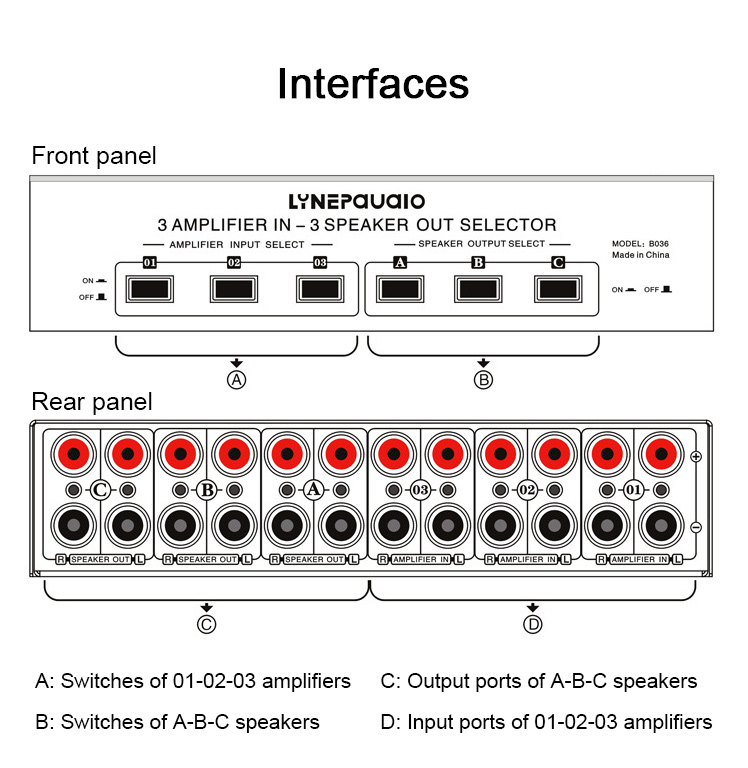

- Input switching: 3-gear self-locking mechanical switch
- Frequency response: 10Hz-50KHz
- Output impedance: 4~16 ohms
- Input and output interface: adopt standard banana connectors
- Shell material: metal
- Power supply: no power supply is needed. Plug and play
- Product net weight: 960g/2.1lb

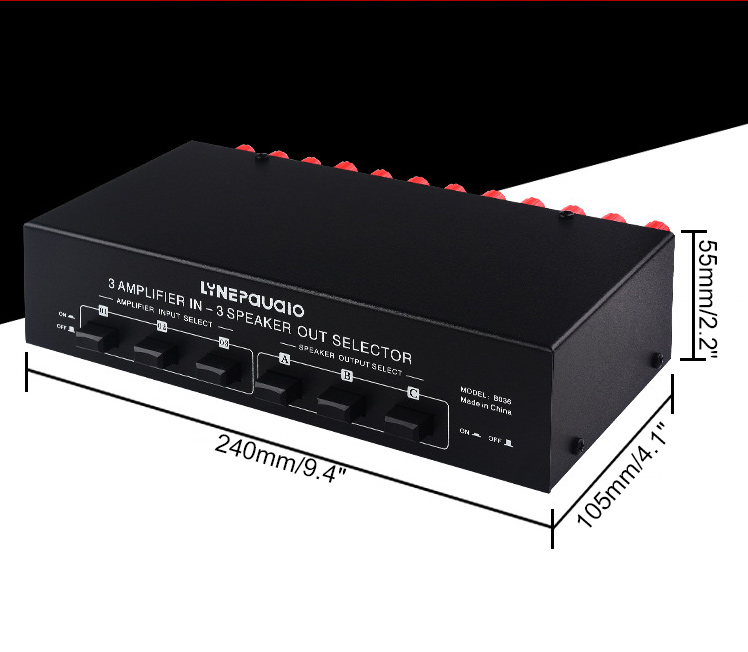

- Dimensions: 240 x 105 x 55mm/9.4 x 4.1 x 2.2" (LxWxH)

Package Included:
- 1 x Amplifier Speaker Selector

FAQ:
What should I do if I feel an electric sound?
Solution 1: This is normal, with noise floor. The sound can not be heard when the distance is 100cm/39.4". You can ignore it.
Solution 2: You can replace the input signal source or use an audio signal cable with shielding to against interference.
Solution 3: Replace power supply or add a power supply filter.
