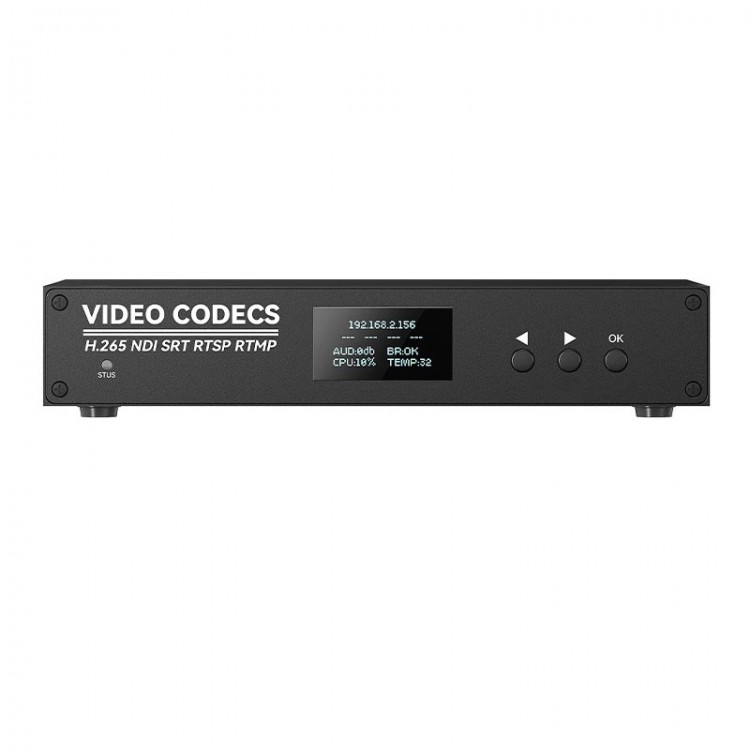

LinkPi ENC4SP 4-Channel SDI Video Encoder 1080P60 Full-HD Low Latency Video Decoder Support for NDI/SRT

LinkPi ENC4SP 4-Channel SDI Video Encoder 1080P60 Full-HD Low Latency Video Decoder Support for NDI/SRT

Specification:
Core Performance:
- CPU: for ARM Cortex A53 Quad-core at 1.2GHz, 32KB I-Cache, 32KB D-Cache
- RAM: 4GB DDR4
- FLASH: 8GBeMmc

Video Parameters:
- SDI input: 3G-SDI supports up to 1080P60fps
- SDI output: 3G-SDI supports up to 1080P60fps
- HDMI-compatible output: support up to 4K60
- Input resolution: 1080P, 720P, 1080i, 720i, etc.

Audio Interface Parameters:
- SDI input: stereo, 48K
- SDI output: stereo, 48K
- HDMI-compatible output: stereo, up to 48K
- Line input: 3.5mm, stereo
- Line output: 3.5mm, stereo

Codec Performance:
- Audio encoding format: AAC, MP3, MPEG2, PCMA, OPUS
- Audio sampling rate: 48K, 44.1K, 32K, 16K, 8K
- Video encoding format: H.264 Baseline profile; H.264 Main profile; H.264 High profile; H.265 Main profile; MJPEG/JPEG Baseline
- Encoding performance: 4K30x2 / 1080P60x4 / 1080P30x8
- Decoding performance: 4K30x2 / 1080P60x4 / 1080P30x8
- Encoding frame rate: 1 ~ 60 frames
- Maximum bit rate: 20Mbps (each encoding channel)
- Bit rate control: CBR/VBR/AVBR/FIXQP

Network Parameter:
- Wired network: 10/100/100OM RJ45 network port x2
- WIFI: USB port expansion (for COMFAST_952AX driver version)
- 4G/5G: USB port expansion (for Huawei E8372h, ZTE MF833U1, Quectel EC20); USB port expansion (for ZTE F50, Lingpai 5GCPE)
- Basic protocol: for RTSP, RTMP, HTTP, HLS, UDP, unicast, multicast
- ONVIF: support sending and receiving
- SRT: support
- NDI: only supports for NDI HX (license required)
- GB28181: support sending
- RTMPS: support

File Storage:
- Storage interface: USB, built-in space (about 6G available)
- File recording format: MP4, TS, FLV, MOV, MKV, AVI

Basic Parameters:
- Adapter: DC-12V 2A
- Power: <15W
- Size: 176 x 126 x 33mm
- Working temperature: 0 ~ 70℃

Software Features:
- Basic functions: WEB configuration, parameter hot update, firmware upgrade, network setting, password management
- Video mixing: picture-in-picture, 4-split screen, 9-split screen, custom
- Special effect overlay: logo, watermark, subtitle, scrolling subtitle, mosaic, time stamp
- Resource management: custom fonts, upload watermark Logo pictures

Package Included:
- 1 x Video Decoder
