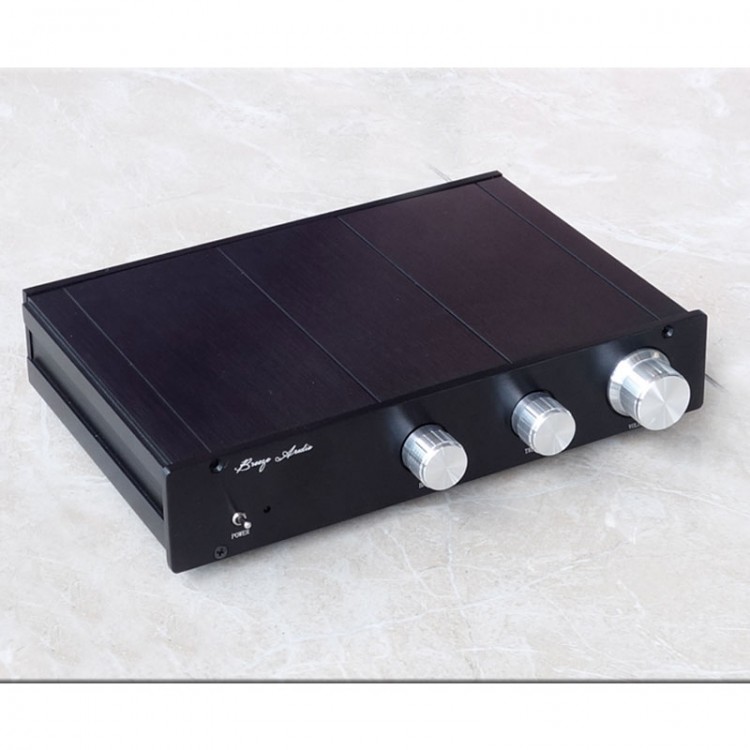

Linkwitz-Riley 2-way Frequency Divider Stereo Preamplifier Treble Bass Crossover High Version

Linkwitz-Riley 2-way Frequency Divider Stereo Preamplifier Treble Bass Crossover High Version

Description:
The crossover board consists of the famous Linkwitz-Riley filter. Linkwitz-Riley filters are mainly used in active filter circuits, such as many sophisticated multi-channel electronic crossover systems. The filter is characterized by an attenuation slope of up to fourth order. In other words, every other octave frequency, the sound will be attenuated by 24dB of energy, that is, the attenuation slope is -24dB / Oct (Oct is Octave, an octave Interval means). At the same time, the Linkwitz-Riley filter has a very flat phase response over the entire audio frequency range (20Hz-20kHz), which is much superior to Butterworth filter. After the signal passes through the filter, there will be no phase distortion, so respected by audio enthusiasts.

Parameter:
Filter type: Linkwitz-Riley Filter
Crossover point: 2200HZ (below 2200HZ is bass output and above 2200HZ is treble output); the crossover point can be customized for other frequencies (free customization); different speakers have different optimal crossover points
Attenuation slope: -24dB / Oct

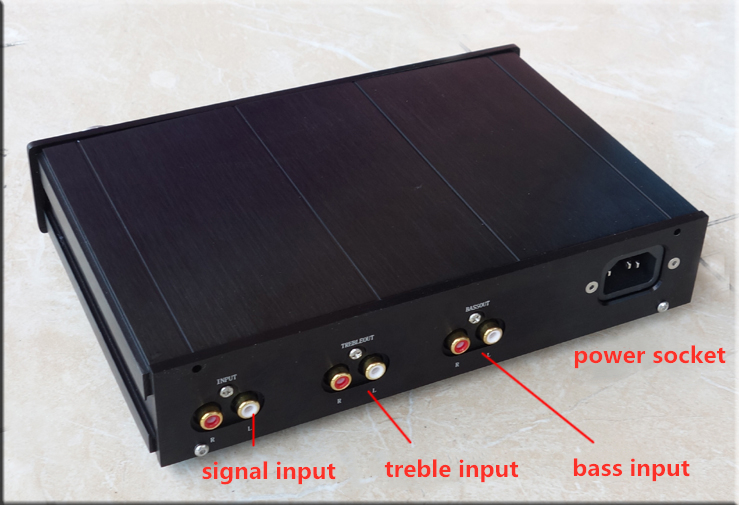

Plate structure: 4-channel output, treble, bass
Op amp chip: double-precision NE5532 imported from JRC
Overall size: 245 * 46 * 160mm
Power supply voltage: 220V AC (customizable 110V, postscript description), power 15W
Weight: 1.58kg (2kg with package)

Feature:
-Excellent crossover circuit.
-Crossover frequency without peak and valley.
-Easy setting of crossover point.
-4 channel output independent adjustment.
-Programmable design and production.
-Perfect reproduction of original sound color.
-3 sets of volume adjustment: high, low and total volume.

Package List:
1 x Frequency Divider
