Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $204.09 | $199.93 | $193.68 | $185.35 | Contact US |
Linsn X100 LED Video Processor LED Display Controller with Linsn Sending Card Supports DVI/HDMI/USB
Overview:
X100, designed for small fixed installation LED screen, is a cost-effective all-in-one video processor. It integrates sender, video processor and supports USB-flash-drive plug and play. It supports up to 1.3 million pixels: up to 1920 pixels horizontally or 1080 pixels vertically.
Functions and Features:
- All-in-one video processor integrated with sender;
- Supports USB-flash-drive plug and play;
- With two outputs, supports up to 1.3 million pixels;
- Supports up to 1920 pixels horizontally or 1080 pixels vertically;
- Supports audio input and output;
- Supports DVI/VGA/CVBS/HDMI1.3 at 60Hz input;
- Input source is switchable by specific button;
- Supports EDID custom management;
- Supports full-screen scaling, pixel-to-pixel scaling.
Product Parameters:
Electrical Specifications:
- Working voltage: AC100-240V, 50/60Hz
- Rated power consumption: 15W
Working Environment:
- Temperature: -20°C to 70°C
- Humidity: 0%RH~95%RH
Physical Specifications:

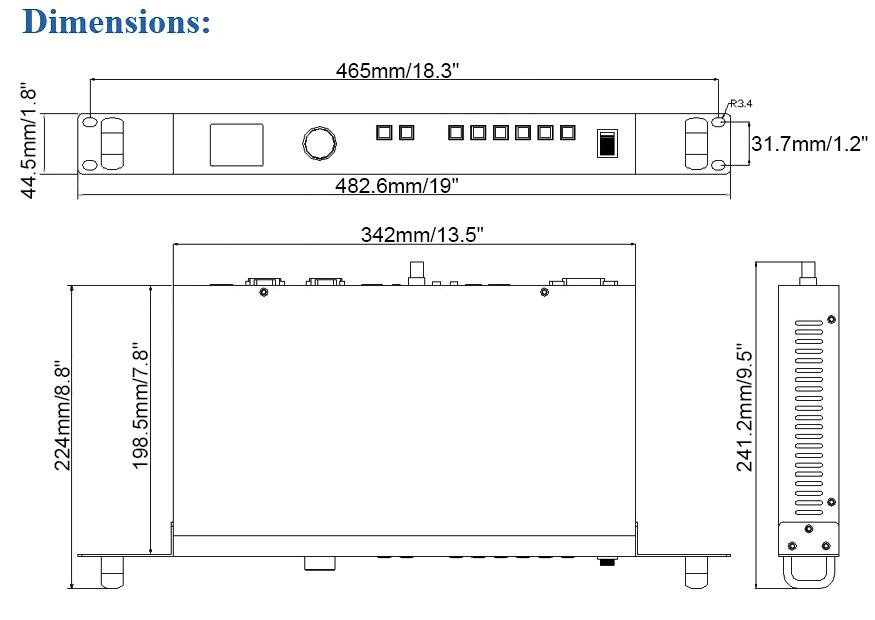

- Dimensions: 482.6 x 241.2 x 44.5mm/19 x 9.5 x 1.8"
- Weight: 2.1Kg/4.6LB

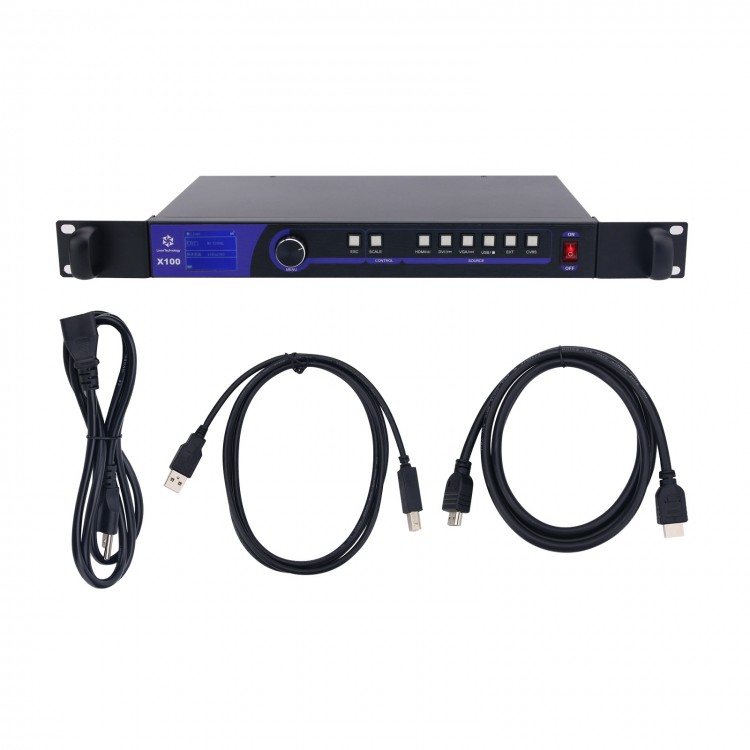

Package Included:
- 1 x LED Screen Video Processor
