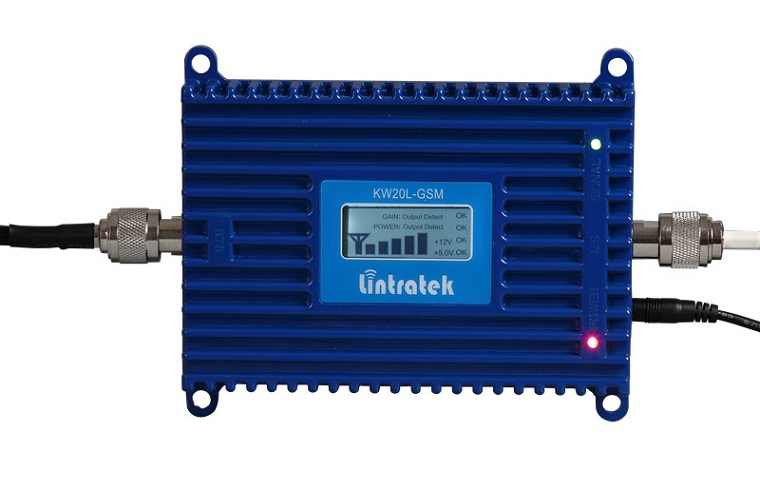

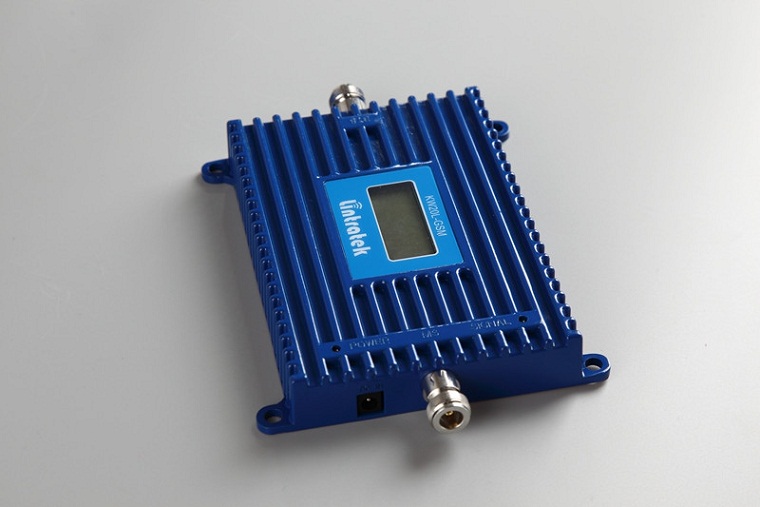

Lintratek 4G LTE 2600mhz Band 7 Cell Phone Signal Booster Repeater Antenna Set

Lintratek 4G LTE 2600mhz Band 7 Cell Phone Signal Booster Repeater Antenna Set

Product Including and Details:

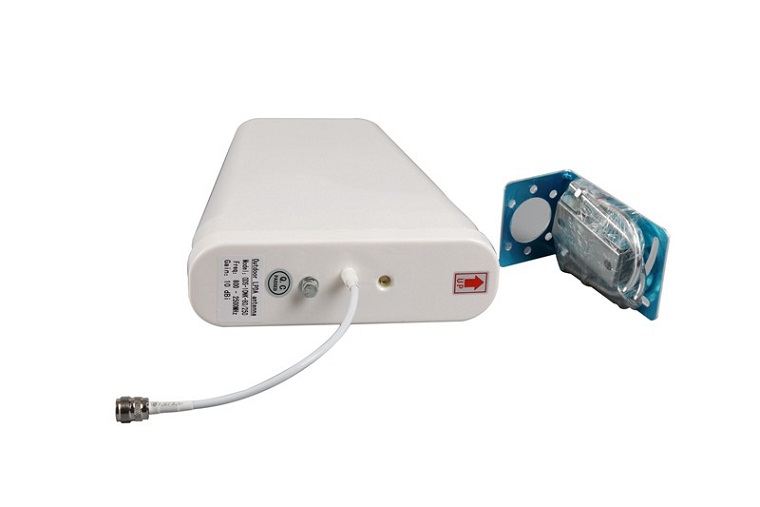

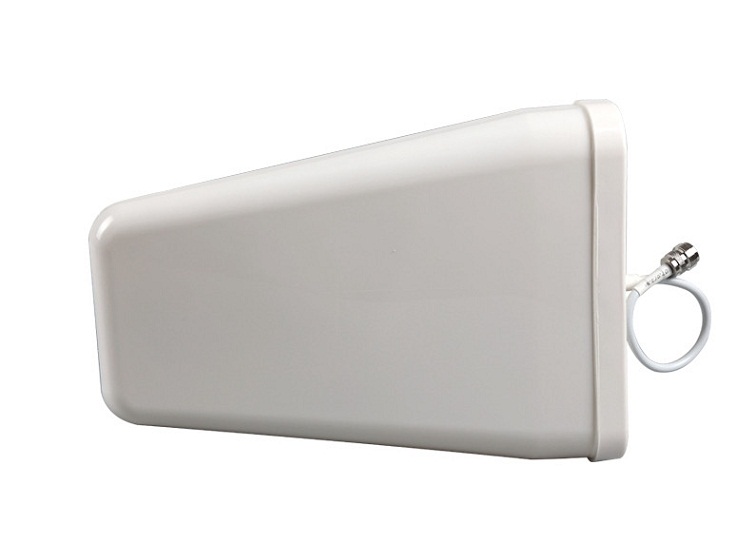

LPDA Antenna

10dBi Gain

700-2700mhz

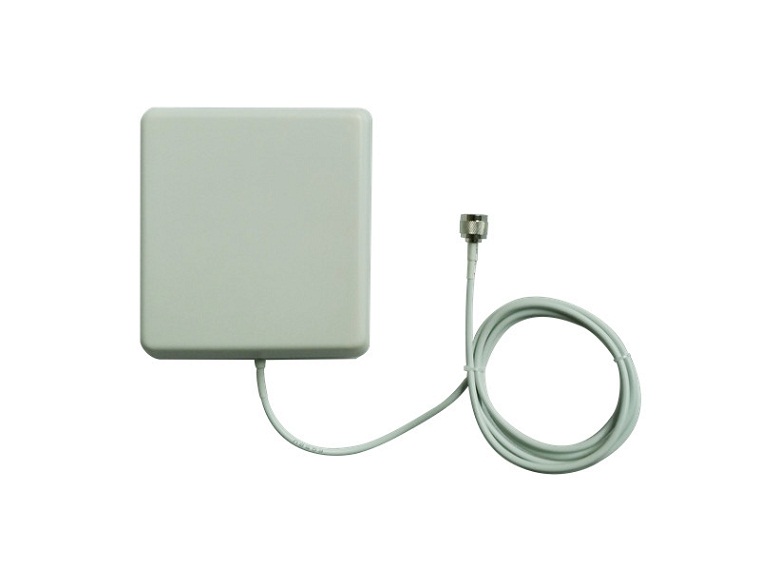

Panel Internal Antenna

9 dBi gain

700-2700mhz

"BTS" end of repeater should connect with outdoor antenna;
"MS" end of repeater should connect with indoor antenna.

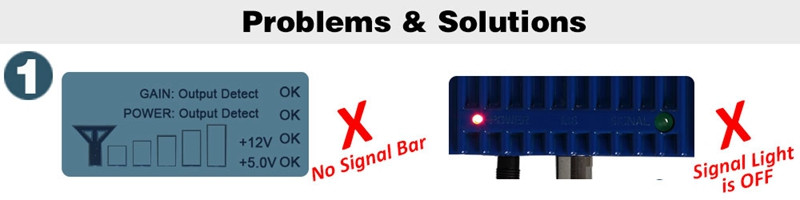

Problem:LCD display shows no signal and signal light is off.
Solution:# Put external antenna higher and point it to other direction to find the best signal.# Check if all the connections are well.More than 3 bars outdoor signal is required.

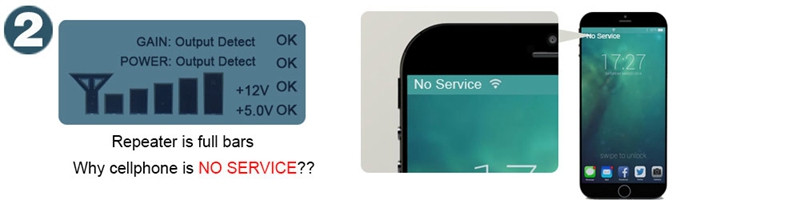

Problem:LCD display shows full bars signal but cellphone is no service.
Solution:#Put indoor antenna far away from outdoor antenna.#Separate indoor antenna and outdoor antenna by walls.

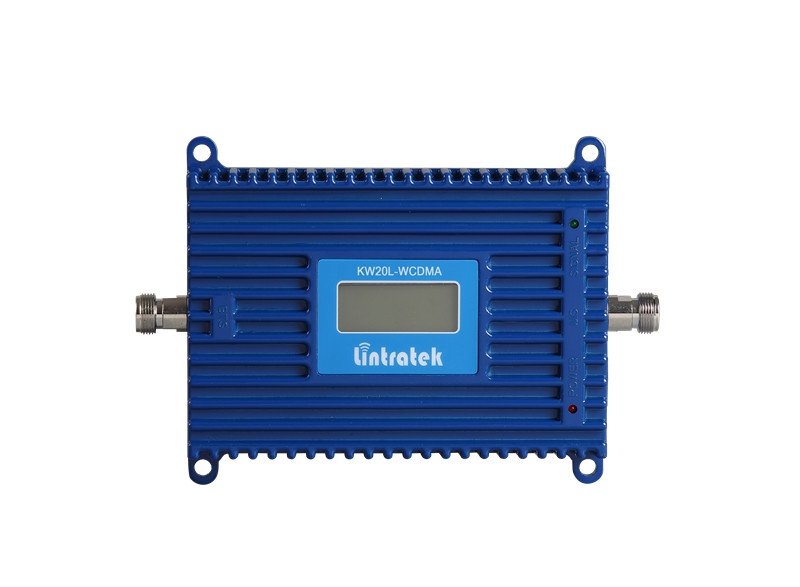

Product Description:
- Suitable for operators:Canada:Bell;Rogers Wireless;
- Say goodbye to dropped and missed calls in your home or office!
- Lintratek lintratek offers solution to your missed and dropped calls and slow data inside your home or office space. It boosts 4G LTE data for Bell and Rogers. This repeater collects the reliable cellular signal you have outdoors and rebroadcasts it indoors, up to 350 square meters. Coverage will vary with outside signal strength, interior walls and distance from the Base Unit.
- Enjoy clearer, faster and more reliable service without interruption
- If you find that you must be near a window or outside to get adequate cell phone reception, then this cell phone booster is the solution. There are a number of reasons why you may be experiencing poor reception.The most common reasons are: 1.Distance from the cell phone tower. 2.Obstructions caused by terrain, trees, buildings 3.Energy efficient windows and other construction materials

Parameter Sheet:
- Device can work perfectly in condition of Outdoor signal strength more than-70db or -65db
- Working System:4G LTE 2600mhz
- Frequency Range:Uplink:2500-2560mhz:Downlink:2620-2690mhz
- Gain:70db
- Output power:20dbm
- Ripple in band:less than 5db
- VSWR:less than 2db
- Power supply:AC:100-240V,50/60Hz  DC:5V 2A
- Power comsumption:less than 8 W
- Inpedance:50 ohm

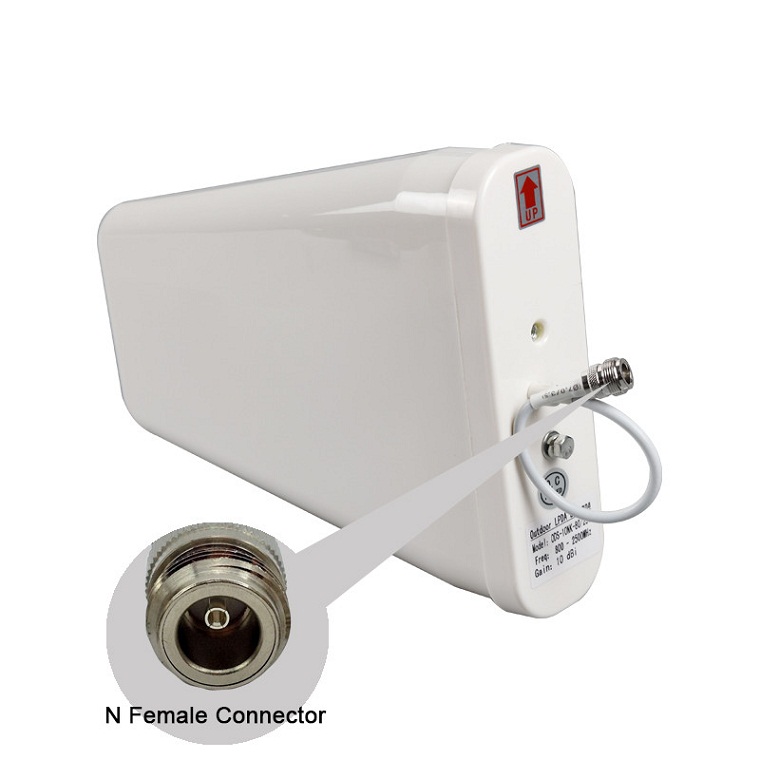

- RF connector:N female
- Matching Antenna type:N Male
- MTBF:more than 50000 hours
- Dimensions:200*110*25mm
- Weight:0.85kg
- Installation:wall
- Environment conditions: IP40
- Feature:4G LTE 2600 Signal Expand

Easy Setup in 4 easy steps:
- 1.Mount the External Antenna where you have the strongest cell phone signal, typically on a roof or in an attic.
- 2.Connect the indoor antenna to the Repeater Base Unit and place where you need improved signal. There should be a minimum of 2 vertical meters of separation between the Base Unit and External Antenna.
- 3.Run the RG-6 coax cable (10 meter) between the Base Unit and External Antenna.
- 4.Connect the power supply to the Repeater Base Unit and plug into a power outlet and you are done!

Note:This repeater set work for 2600mhz signal band , please make sure it is match with your operator. If not,you can call your operator to ask them which signal band are you using .

Packaging Included:
- 1 x 4G LTE 2600mhz Booster
- 1 x AC Power Cord
- 1 x Outdoor antenna
- 1 x Indoor antenna
- 1 x 15m Cable
