LiteVNA-64 50KHz-6.3GHz Vector Network Analyzer VNA Antenna Analyzer with 3.95" Screen for MF HF VHF

LiteVNA-64 50KHz-6.3GHz Vector Network Analyzer VNA Antenna Analyzer with 3.95" Screen for MF HF VHF

Description:
LiteVNA-64 improves on the popular NanoVNA and SAA2. Now you can get a portable vector network analyzer (VNA) as small as the NanoVNA and capable of meeting the ultra-wide measurement range of 50 kHz to 6.3 GHz.

To minimize power consumption and size, the LiteVNA-64 uses only one frequency mixer, with multiple internal RF switches for S11 and S21 measurements, and IFFT calculations for TDR and DTF measurements.

Designed with the community's input in mind, the LiteVNA-64 now brings faster scanning speeds and more scan points in addition to a wider measurement range. Combined with an easy-to-use interface consistent with the NanoVNA, it can now be easily used as a field test tool.

LiteVNA-64 includes a MicroSD slot, so you can save field test data or screens to a MicroSD card at any time. With a measurement range of up to 6.3GHz, the LiteVNA-64 is capable of meeting common amateur radio and IoT applications, as well as emerging 5GHz testing, enabling the application of the latest 5.8GHz wifi and 5.8GHz image transmission.

We have updated LiteVNA-64 to version 0.3.1, redesigned the power supply and IF circuit, greatly reduced noise floor and completely solved interference when it is connected to an external power supply. Below 1MHz-3GHz frequencies, effective dynamics of better than 90dB can be obtained with 20AVG. Above 3 GHz, the limited isolation is reduced. The effective dynamic reduction is reduced to 50dB at 6.3GHz. Compared to similar products, LiteVNA-64 has a wider frequency measurement range and an effective dynamic range. Furthermore, it is more light and reliable!

Affected by the current tight chip supply, we still hope that LiteVNA series is an affordable device for hobbyists and startups. The 0.3.1 version of the LiteVNA-64 is currently in short supply, and the 2.8-inch LiteVNA-62 is still the 0.3 version, and we are working with the supplier to provide the best possible device to users!

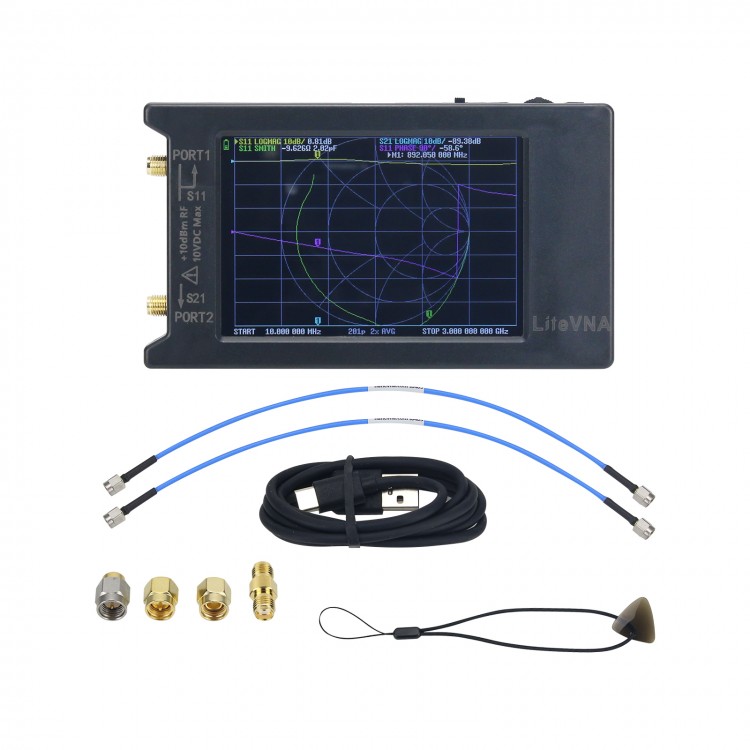

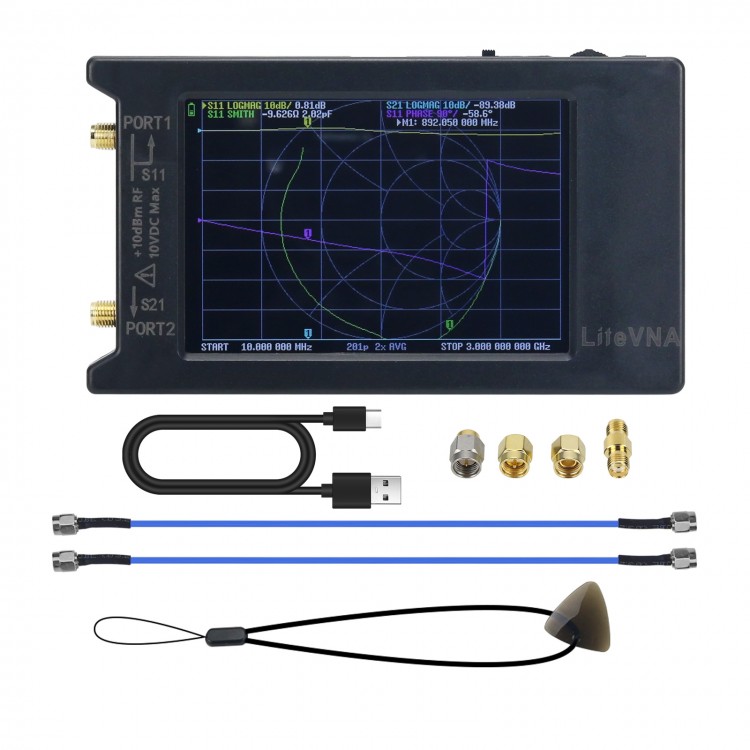

Package Included:
- 1 x LiteVNA-64 Main Unit (with 3.95-inch touch screen and 2000mAh battery)
- 2 x 30cm/11.8" SMA Male to Male SS405 RF Cables
- 1 x SMA Female-to-Female Connector
- 1 x SMA Simple Calibration Kit SHORT
- 1 x SMA Simple Calibration Kit OPEN
- 1 x SMA Simple Calibration Kit LOAD
- 1 x USB Type-C Data Cable
- 1 x Pick

Packaging Details:
- Packaging size: 16.5 x 10.5 x 5cm/6.5 x 4.1 x 2"
- G.W.: 0.4kg/0.9lb
