Lithium Battery Discharge Tester Lead Acid Lithium Battery Capacity Tester Meter 12V24V36V48V60V72V

Lithium Battery Discharge Tester Lead Acid Lithium Battery Capacity Tester Meter 12V24V36V48V60V72V

Description:
This battery capacity tester is for 12V-72V battery pack. It automatically finishes discharging according to your set time without supervision of work staff. Adopting intelligent PID technology, this tester features with stable discharging process and precise testing data.

Features:
- To test 72V, 60V, 48V, 36V, 24V, 12V batteries packs
- Automatically finishes discharging according to your set time
- Adopting intelligent PID technology, it features with stable discharging process and precise testing data
- Durable & Practical: a must for battery producers, battery maintenance, electric vehicle manufactures etc.

Parameters:
- Constant discharge current during the whole process; the voltage of discharging is up to 94V
- For Battery Packs: 12V, 24V, 36V, 48V, 60V and 72V
- Discharge Current: 0.5-10A (Adjustable); the cut-off discharge voltage is automatically set, if necessary, it can be changed manually
- The tester displays battery voltage, discharge current and discharge time (As to the capacity of battery, you can press the selection key for a while until the battery capacity is shown in the discharge time column, after the discharging process is finished or paused)
- Compatibility: for discharging lead-acid battery, iron-lithium battery, ternary/lithium manganate battery and polymer lithium battery (As to other batteries, you can set discharge data manually)
- Automatically identify voltages of battery packs: 12V, 16V, 24V, 36V, 48V, 60V, 72V; automatically set cut-off discharge voltage for greater convenience
- Manual setting is needed when it is used for testing other types of batteries or non-standard batteries
- Accuracy of Discharge Current: 1%
- Weight: 5kg

Package Included:

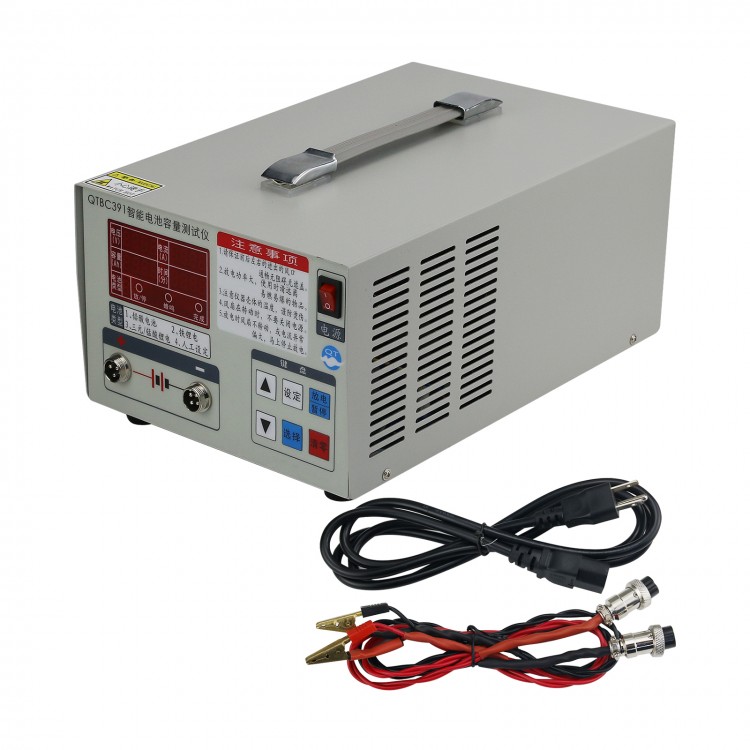

- 1 x Tester

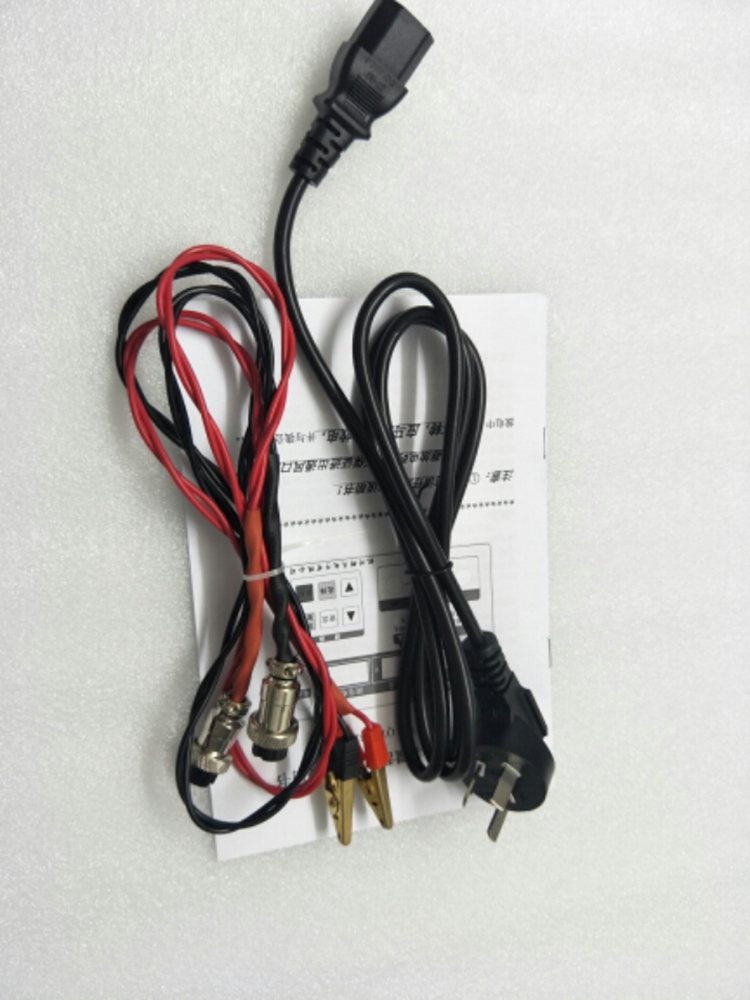

- 1 x Pair of Test Clamps
- 1 x User Manual
- 1 x Power Cable
