Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $154.73 | $151.57 | $146.84 | $140.52 | Contact US |

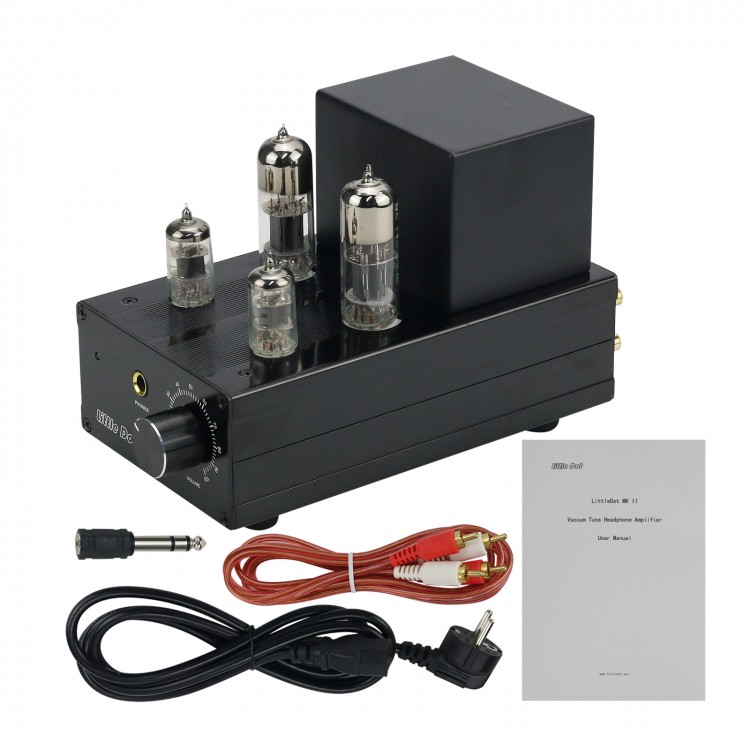

Little Dot MK 2 MK II Vacuum Tube Headphone Amplifier 6J1+6N6 Assembled Pre-amplifier HiFi Audio Amp
Specification:
Input terminal: RCA
Output terminal: A. 6.35 headphone jack(used as headphone amplifier); B. RCA(used as pre-amplifier)
Frequency response: 20Hz~50KHz (300Ω, -1db)
THD+N: 0.1% (300Ω 50mW)
Output power: A. 300mW (600/300Ω); B. 20mW (120Ω); C. (100mW 32Ω)
Output impedance: (32Ω-600Ω) (headphone amp part); 10KΩ (pre-amp part)
Dimensions: 210 (deep) × 110 (width) × 130 (high) mm
Weight: 2.5 kg
Features:
-With SEPP (single-ended push pull) OTL circuit operating, the Little Dot MK II greatly increases sound quality and dynamic rang.
-Adopt 6JI as driver tubes and 6N6 as power tubes, featuring high output signal voltage and low distortion.
-Improved pre-stage output circuit, reduce the output impedance and has a stronger load carrying capacity.
-The aluminum alloy body of the secondary oxidation process has a good surface finish and texture.
Package List:
-1 x Three-core Power Cable
-1 x RCA-RCA Signal Cable (3.5-RCA optional)
-1 x 3.5-6.35 Headphone Adapter
