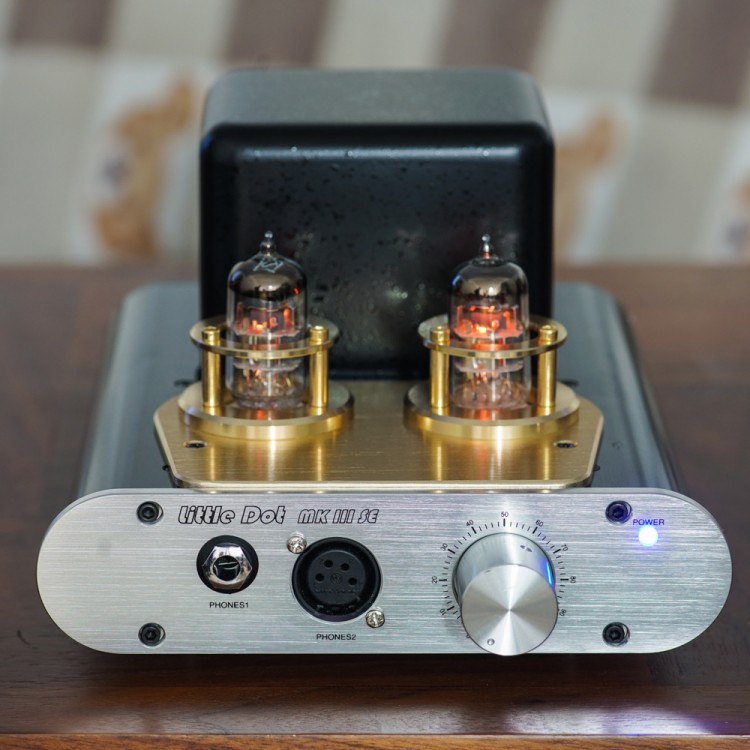

Little Dot MK3 SE Fully Balanced Amplifier 6N11 Pure Class A Tube Transistor Headphone Amp
Specification:
Input terminal:
Balanced: XLR 3p x2
Unbalanced: RCA x2
Output terminal:
Balanced: XLR 4p x1
Unbalanced: 6.35mm x1
Input impedance: 10K ohm
Distortion degree: 0.001% (output: 2V rms 1000Hz)
Signal to noise ratio: 95dB
Frequency response: 5Hz - 100KHz (-1dB)
Output power:
2.5W (32 ohm)
1.8W (120 ohm)
0.8W (300 ohm)
Impedance of adapting headphone: 32 ohm~600 ohm
Magnification:
Gain=HIGH: 9
Gain=LOW: 4.5
Power consumption: 30 VA
Size: 245 x 165 x 120mm
Weight: 3kg
Features:
-Little Dot LD III SE is a tube-transistor hybrid, fully balanced amp.
-Pre-stage tube adopts 6N11(6922/ECC88,etc).
-Transistor part adopts full discrete, full symmetry and pure class A amp circuit.
-This machine is fully balanced and unbalanced compatible, with XLR balanced input, output and -also RCA input, 6.35 output.
-Very delicate secondary oxidation technology on chassis, and a gold-plated tube guard.
Package List:
1 x Headphone Amplifier
