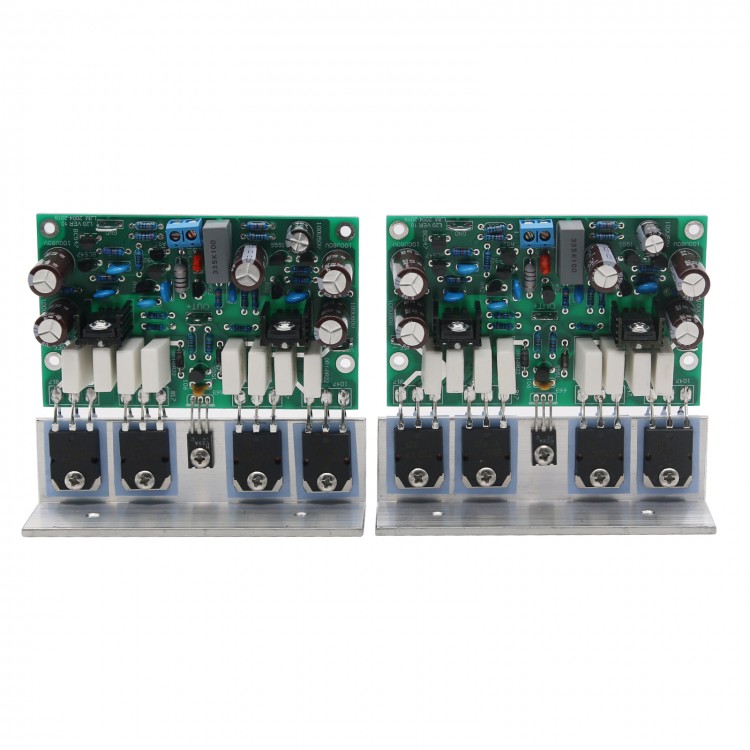

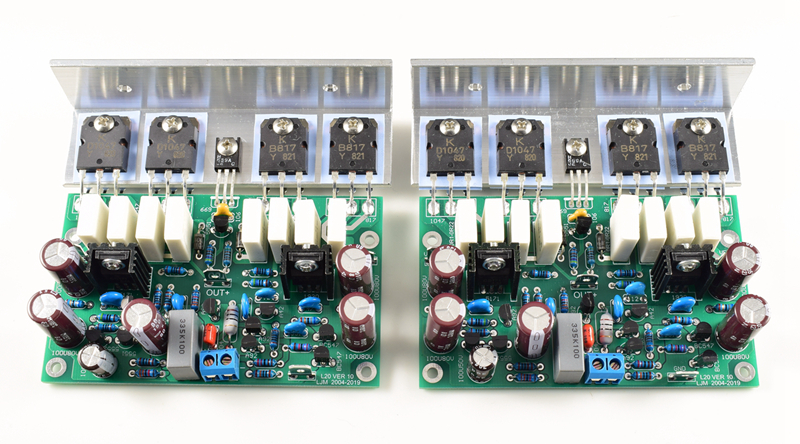

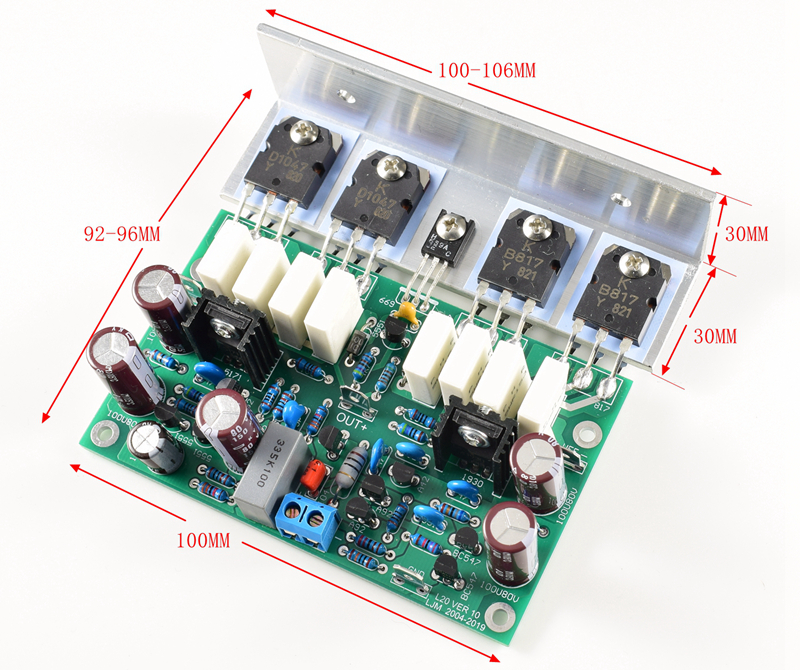

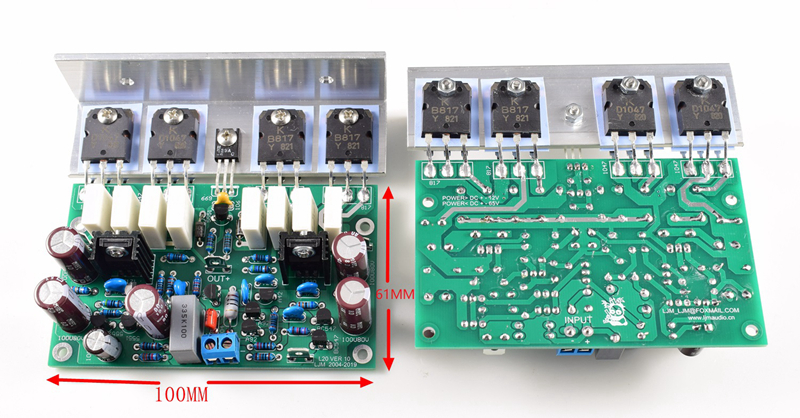

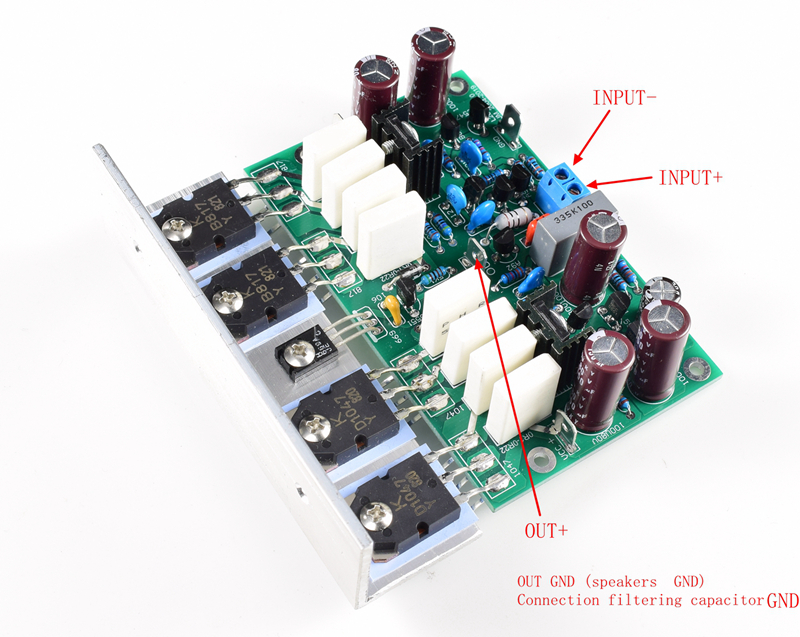

LJM-L20 2-Channel Amplifier Board Amp Board 200W 8R with Angle Aluminum Finished

Availability: In stock, usually dispatched in 1 business day

  • Price:$47.42
  • Price in reward points: 474 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $46.47 $45.52 $44.10 $42.20 Contact US
Quantity:

LJM-L20 2-Channel Amplifier Board Amp Board 200W 8R with Angle Aluminum Finished

Features:

- 2-Channel amplifier boards
- Original power tubes ensuring high quality
- THD + N <0.003% 50W 8R 20HZ-20KHZ
- Supports 200W 8 ohm output power
- Ultra low distortion power amplifier
- All tested before delivering

Test Data(Test Equipment: Audio Precision 2):
- THD + N <0.0015% 50W 8R
- THD + N <0.003% 50W 8R 20HZ-20 KHZ
- THD + N <0.002% A weighting
- Signal to noise ratio greater than 99DB
- Voltage gain: 34 times
- Input sensitivity: 1.9V (output power 200W 8 R)

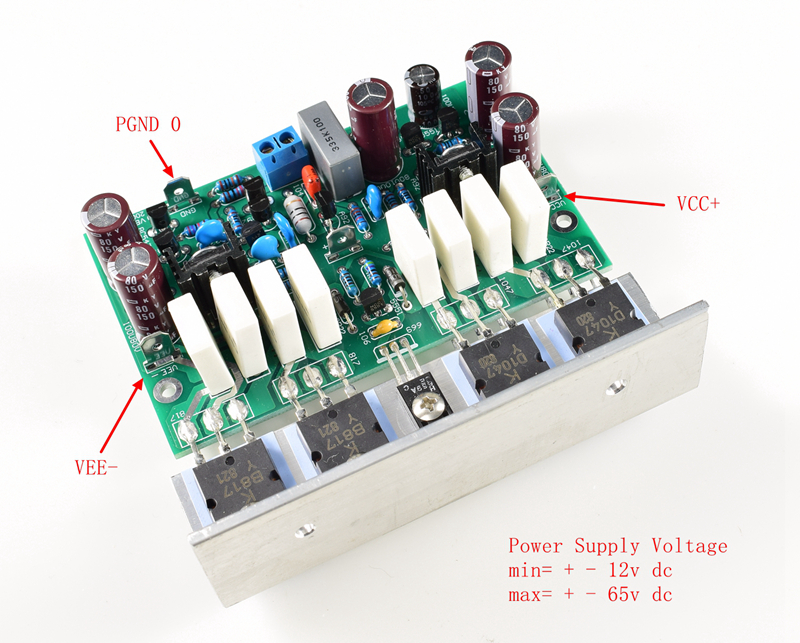

- Voltage of Power Supply: DC ±12V to ±65V
- Output power: 200W 8R±65V; 300W 4R±55V; 350W 4R±60V
- Output DC voltage <15MV
- Output maximum current> 15A
- Damping Coefficient> 2000
- SR = 30V / US
- Quiescent current: 10mA for each channel
- Frequency response: 20HZ - 20KHZ ±0.05DB; 10Hz-25KHz ±0.5DB

Package Included:
- 2 x Amplifier Boards with Angle Aluminum
