Specifications:
- Module property:Non-isolation buck
- Rectification mode:non-Synchronous rectifier
- Input voltage:DC 3V-40V
- Output voltage:DC 1.23V-37V
- Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)

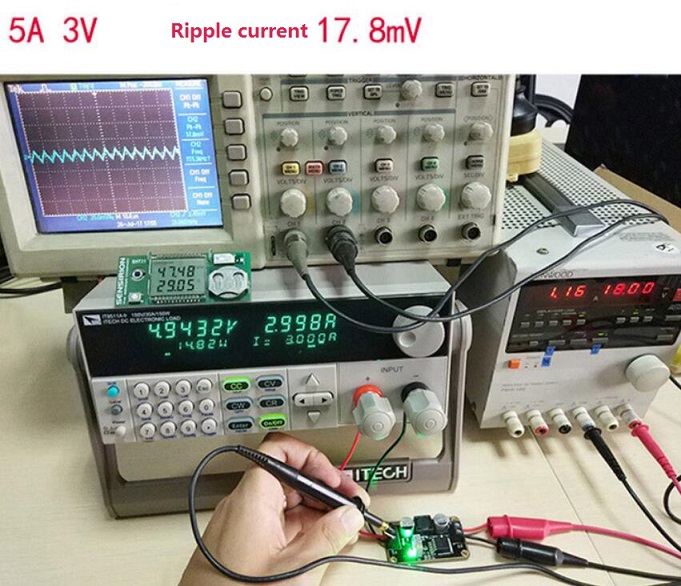

- Output ripple:20mV( maximum )
- Load regulation:±0.5%
- Voltage regulation:± 2.5%

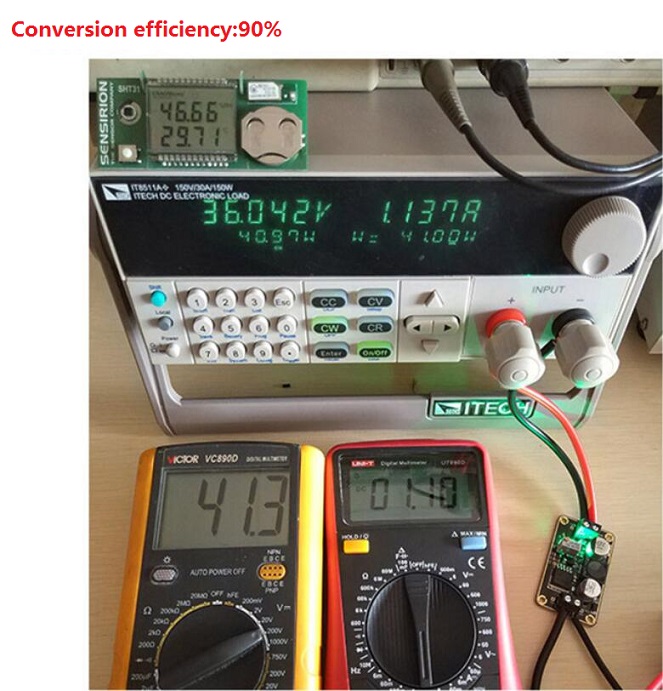

- Conversion efficiency:92% (maximum)

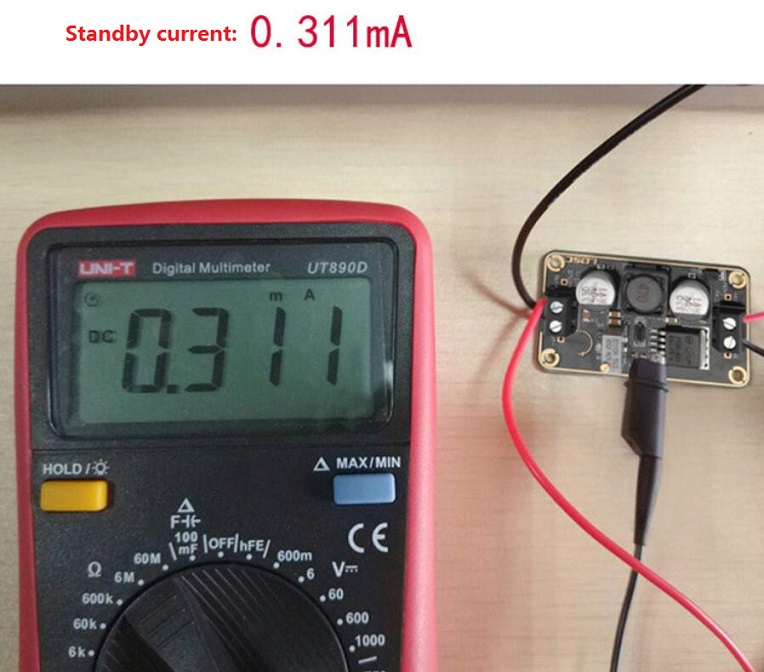

- Standby current:0.3mA

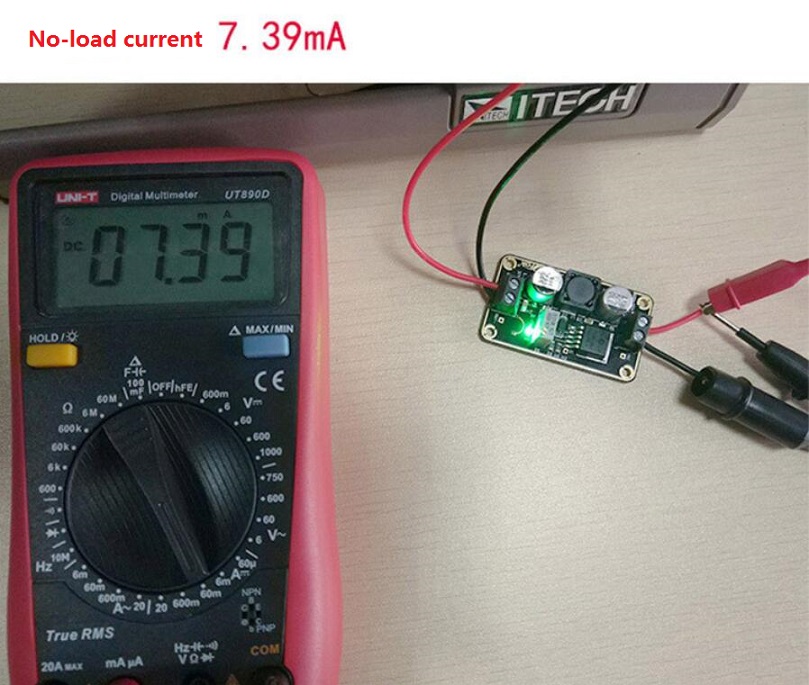

- No-load current:around 7mA
- Protective function:reverse connection;over current;over heated;short circuit
- This can't be used to step up Voltage
- Work temperature:-40 ℃-+85 ℃

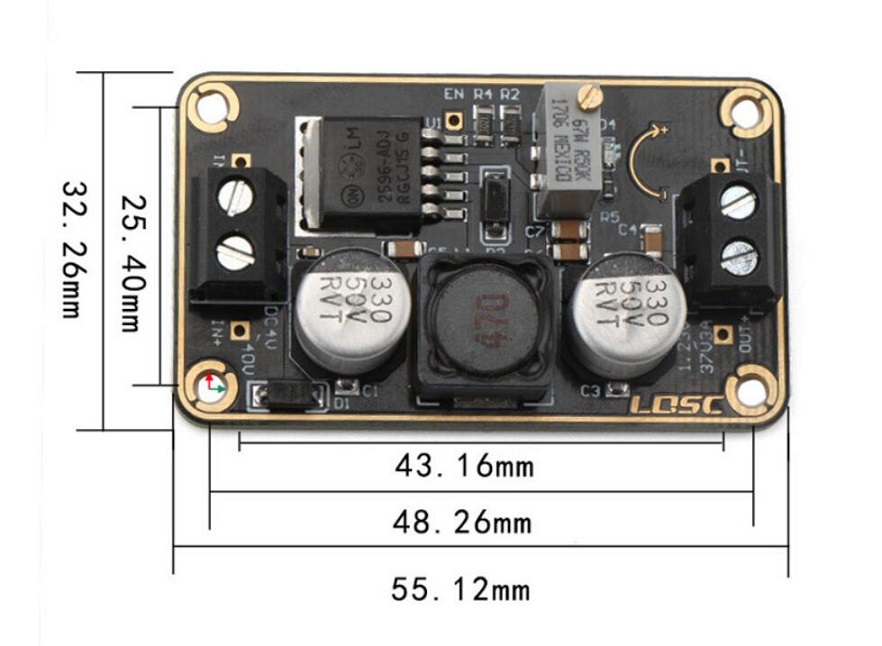

- Outline dimension:55x32x13mm(LxWxG)
- Net weight:20g

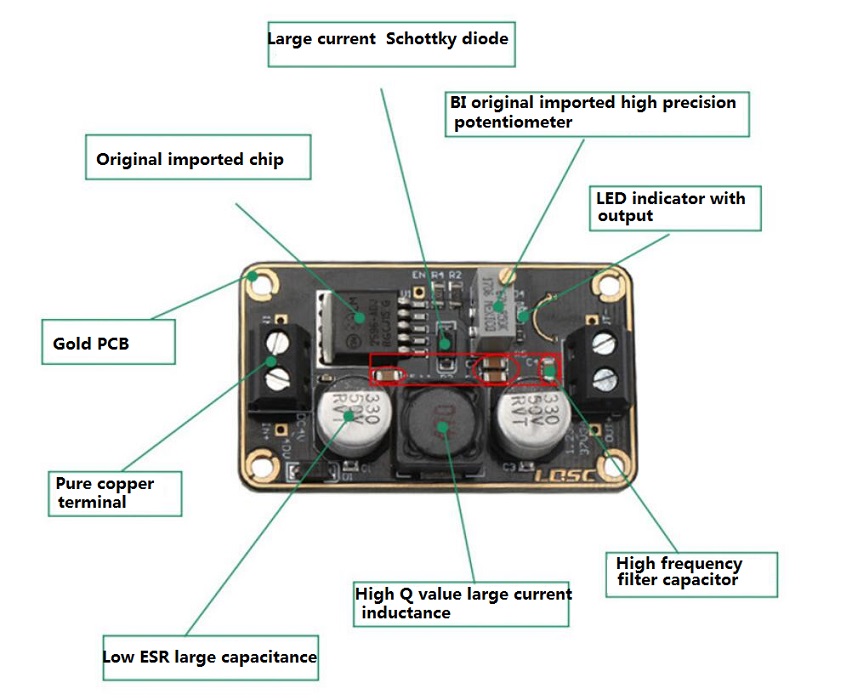

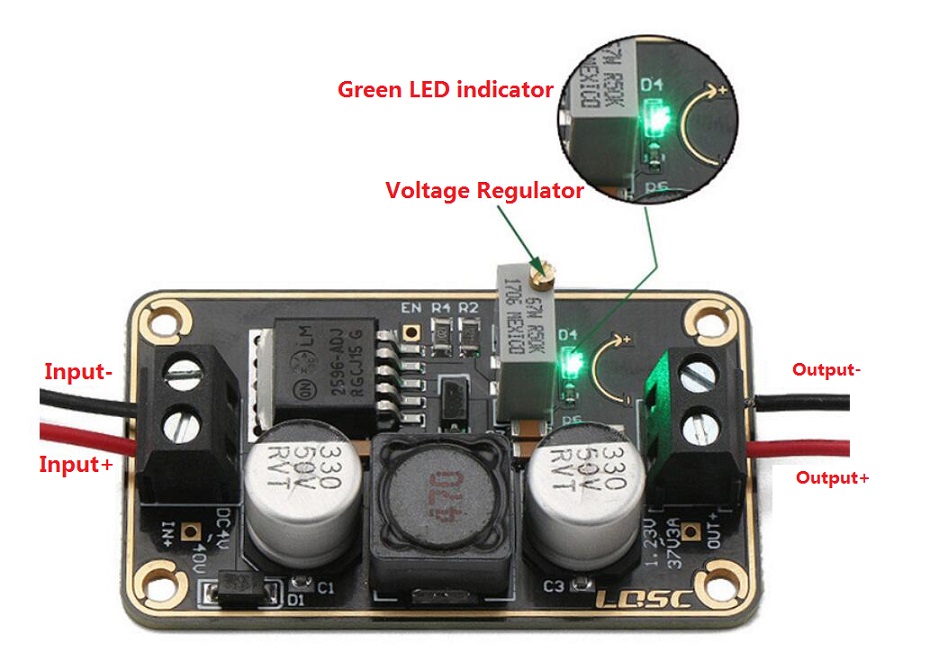

Usage:
- High Q value large current inductance
- Low ESR large capacitance
- BI original imported high precision potentiometer
- Original imported chip
- Large current
- Schottky diode
- Gold PCB
- Pure copper terminal
Attention:It can steadily perform 3A at room temperature (testing temperature 29℃,humidity 50%).If it works for a long time,you can add heat sink.
Package List:

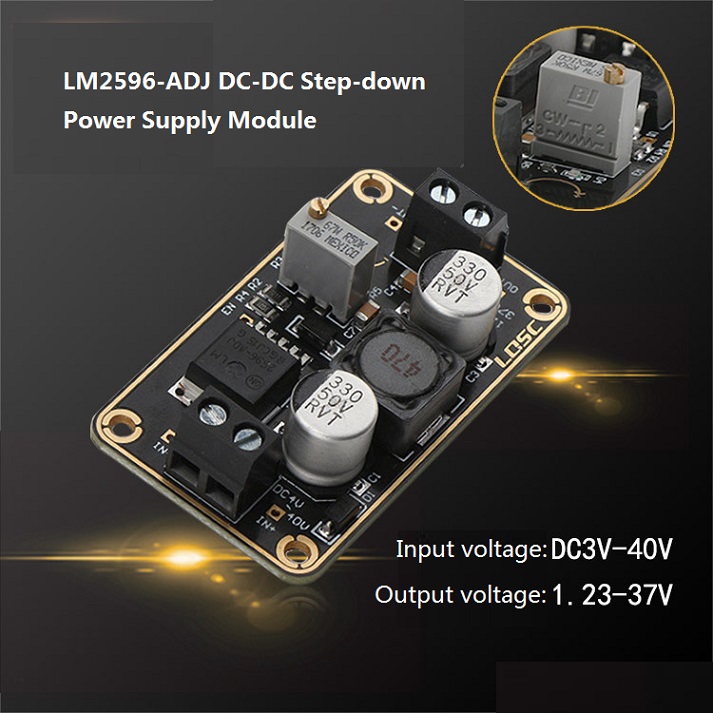

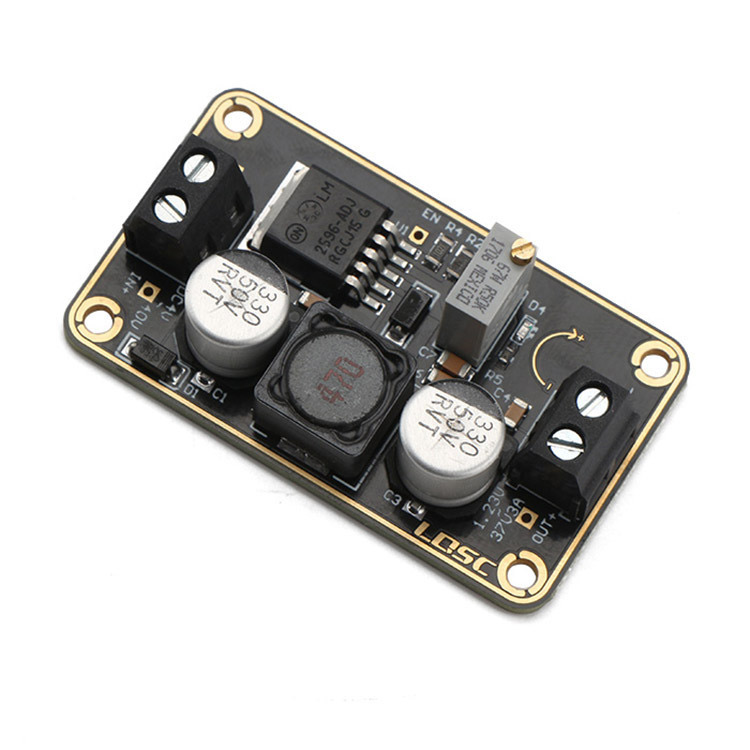

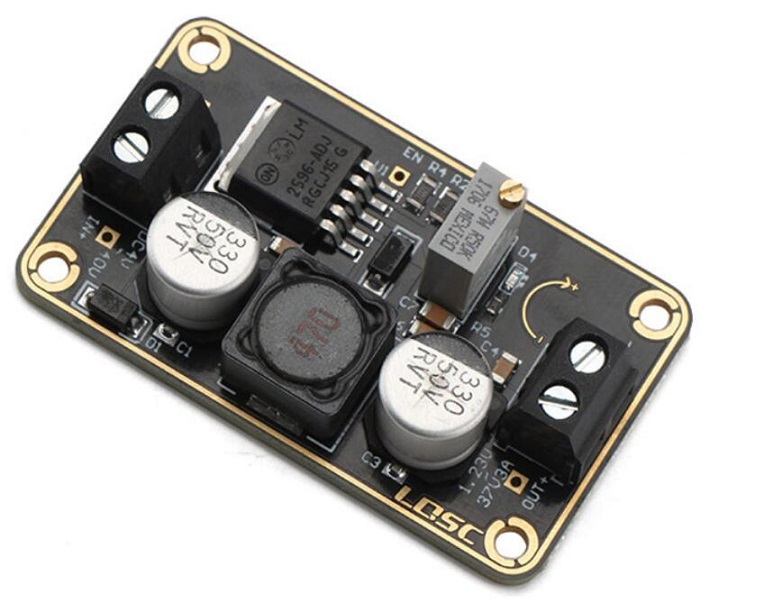

- 1 x LM2596-ADJ DC-DC Step-down Power Supply Module
