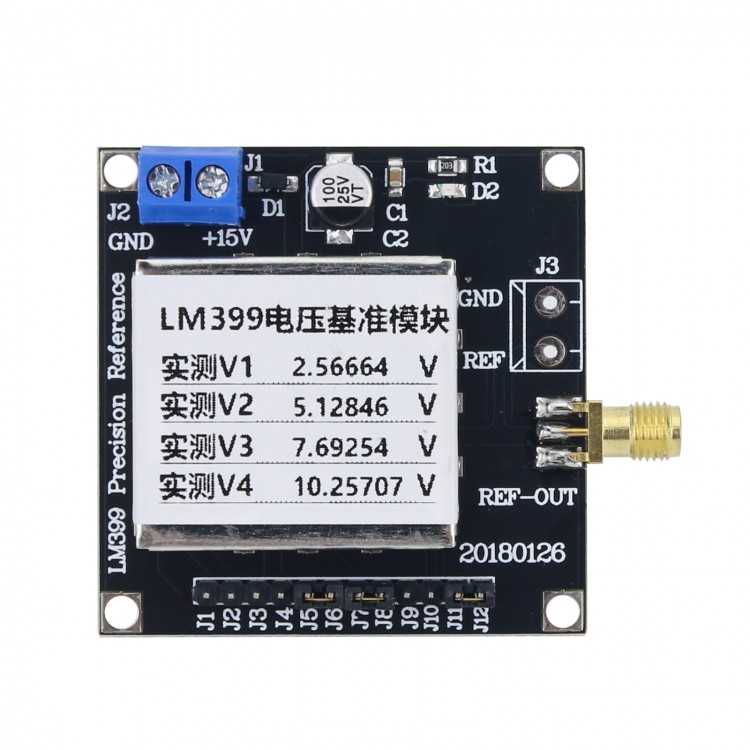

LM399 Voltage Reference 2.5V/5V/7.5V/10V Output High Precision Reference for Voltmeter Calibration
Specification:
Input voltage: +15V
Output voltage: +10V/+7.5V/+5V/+2.5V, etc.
Precision: six and a half digits (0.00001)
Chip temperature drift: 0.5ppm/℃ (constant temperature)
Size: 5*5cm (without protruding SMA
Factory calibration: calibrated by 6 and a half digital multimeter FLUKE8846A, and the measured voltage is marked on the shielding shell
Jumper Cap Connection:
5V output voltage: J5 connects to J6, J7 connects to J8
10V output voltage: J1 connects to J2, J3 connects to J4, J5 connects to J6
7.5V output voltage: J3 connects to J4, J5 connects to J6, J7 connects to J8
2.5V output voltage: J5 connects to J6, J7 connects to J8, J11 connects to J12
6V output voltage: J5 connects to J6, J7 connects to J8, J11 connects to J12
4V output voltage: J5 connects to J6, J7 connects to J8, J9 connects to J10
Package List:
1 x Voltage Reference
