Description:

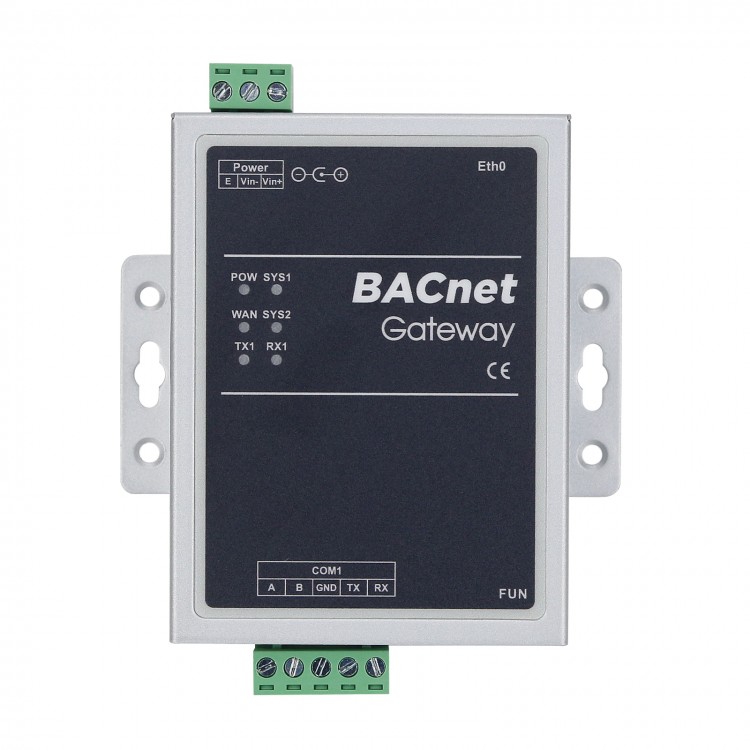

LMGateway101-B data acquisition gateway provides one RS-485 serial port and one 10/100Mbps Ethernet port. The gateway has embedded data acquisition drivers for Modbus, DLT645, OPCUA, Siemens PLC, etc. It provides proprietary protocol-driven integration. As a BACnet IP and BACnet MS/TP server, the gateway can provide data to the outside world.

Gateway Functions:
1. Data Service
* As a BACnet IP and BACnet MS/TP server, the gateway provides data to the outside world. Supports AI, AO, AV, BI, BO, BV, MSI, MSO, MSV and other attributes, and can configure data units. Support for Who-Is and I-Am services, cov subscription, read, write and other functions.
* Gateway provides http server and supports GET and POST. Users can retrieve the real-time data and stored historical data of the gateway through the http server interface.

2. Data Manipulation
Data operations can be performed on the collection points through expressions. For example, A represents a certain collection point, and the expression A/100 can be edited to reduce the data by 100 times; A+0.5 to offset the value by 0.5, etc.

3. Alarms and Events
The alarm and event page allows users to set the trigger conditions of the event. Trigger an event when a condition is met. When the state transitions from satisfying the condition to not satisfying the condition, the execution event is released.

4. Tasks and Plans
Users establish the task plan and specify the week and time period to set the value of multiple points. Before using the task scheduling function, please calibrate the time of the gateway.

5. Javascript Script Editing
The JavaScript script editor has built-in functions, users can implement custom logic control by editing the script language, and can customize serial communication: call the built-in function to send a message to the serial port, return the received message and parse it.

Hardware Specifications:
- CPU: ARM926EJ, clocked at 300MHz
- Memory: 64MByte high performance memory
- Nand Flash: 128MByte SLC Flash
- Serial port: One fully isolated RS485 interface
- Network port: One 100M/10M Ethernet interface
- Power supply: DC9V～48V; support reverse connection, anti-lightning, over-current and other protections
- Net weight: 280g (0.6 lb)
- Enclosure protection grade: IP51
- Mounting Dimensions (including hangers): 130 x 109 x 35mm/5.1 x 4.3 x 1.4" (LxWxH)
- Mechanical installation: DIN rail slot
- The maximum power consumption of the motherboard: ≤2W
- Working temperature: -40 to 85℃
- Working relative humidity: 20～90% non-condensing

Package Included:
- 1 x Gateway

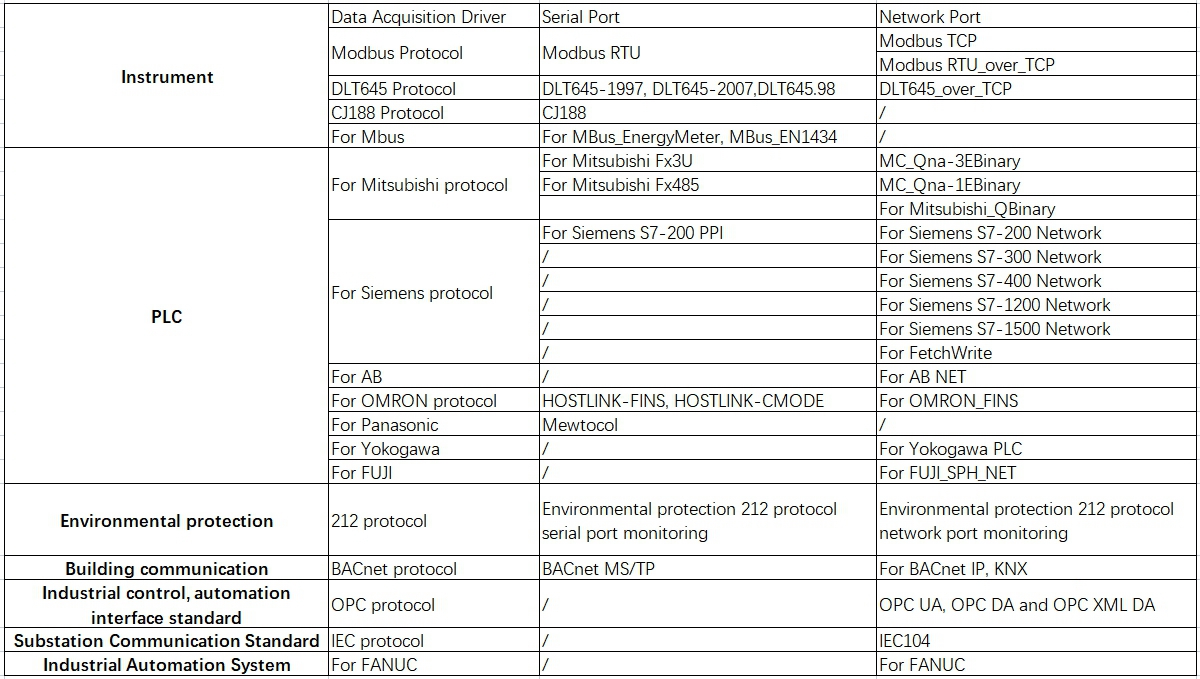

Data Acquisition Driver:
