LMX2594 Module Frequency Synthesizer Development Board PLL 10M-15GHz with Case USB Control Board

LMX2594 Module Frequency Synthesizer Development Board PLL 10M-15GHz with Case USB Control Board

Description:
-LMX2594 is a high-performance broadband synthesizer that can generate any frequency in the range of 10MHz to 15GHz without using an internal doubler, so there is no need to use sub-harmonic filters. The high-performance PLL with a quality factor of -236dBc/Hz and a high phase detector frequency can achieve very low in-band noise and integrated jitter. The high-speed N divider has no prescaler, which significantly reduces the amplitude and number of spurs. There is also a programmable input multiplier that reduces spurs on integer boundaries.
-LMX2594 allows users to synchronize the output of multiple devices, and can be used in situations where a delay is required between input and output. The frequency ramp generator can synthesize up to 2 ramps in the automatic ramp generation option or the manual option to achieve maximum flexibility. The frequency can be accelerated to more than 20μs through the fast calibration algorithm.
-LMX2594 adds support for generating or repeating SYSREF (compliant with JESD204B standard), making it an ideal low-noise clock source for high-speed data converters. In this configuration, a fine delay adjustment (9ps resolution) is provided to solve the delay difference of the board trace.
-The output driver in LMX2594 provides up to 7dBm output power when the carrier frequency is 15GHz. The device uses a single 3.3V power supply and has an integrated LDO, eliminating the need for an on-board low-noise LDO.

Features:
-10MHz to 15GHz output frequency
-110dBc/Hz phase noise with 100KHz offset and 15GHz carrier
-45fs RMS jitter at 7.5GHz (100Hz to 100MHz)
-Programmable output power
-Eliminate integer boundary spurs with programmable input multiplier
-Achieve output phase synchronization across multiple devices
-Support SYSREF with 9ps resolution programmable delay
-FMCW frequency ramp and chirp capability application
-Less than 20μs VCO calibration speed
-3.3V single supply operation

PLL Main Specifications:
Quality factor: -236dBc/Hz
Nominal 1/f noise: –129dBc/Hz
Maximum phase detector frequency
400MHz integer mode
300MHz fractional mode
32-bit fractional-N divider

Details:
1. The LMX2594 frequency synthesizer development board is built by senior engineers with full reference to the design of the official version; the PCB has a beautiful appearance, reasonable layout and design, and exquisite materials.
2. Module external control IO is basically external, and is basically compatible with the interface of the official evaluation board.
3. The external signal terminals of the module are:
Output signal: RFA's A&B, RFB's A&B
Input signal: SysRefReq, SYNC, clock input A&B (external clock needs to adjust some components of the PCB board)
4. Equipped with the official supporting control board, you can use the official control software to control the LMX2594 module through USB, which can realize the point frequency and sweep frequency functions.
5. The module also has a matching aluminum alloy case, which can play an effective shielding effect.
6. Power supply mode: 3.3V (no regulator IC inside the module)

Applications:
-5G and millimeter wave wireless infrastructure
-Test and measurement equipment
-Radar
-MIMO
-Phased array antenna and beamforming
-High-speed data converter clock (support JESD204B)

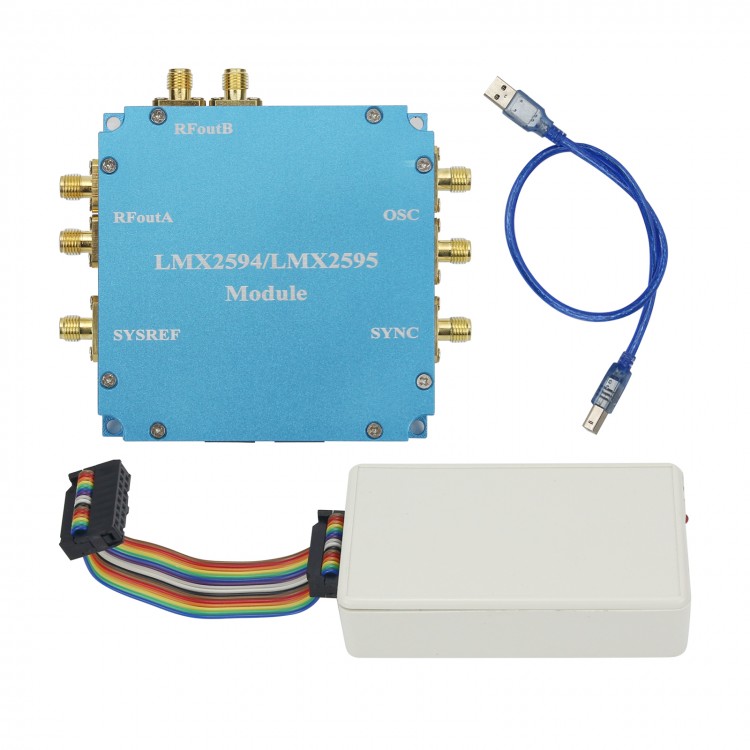

Package List:
-1 x LMX2594 Module
-1 x 16Pin Cable
-1 x USB Control Board

Module Measured Waveform

0-8G spectrogram, signal 4GHz

Phase noise test, signal 4GHz

Signal 5GHz

Signal 4GHz

Signal 6GHz

Signal 7GHz
