Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $60.53 | $59.30 | $57.45 | $54.98 | Contact US |

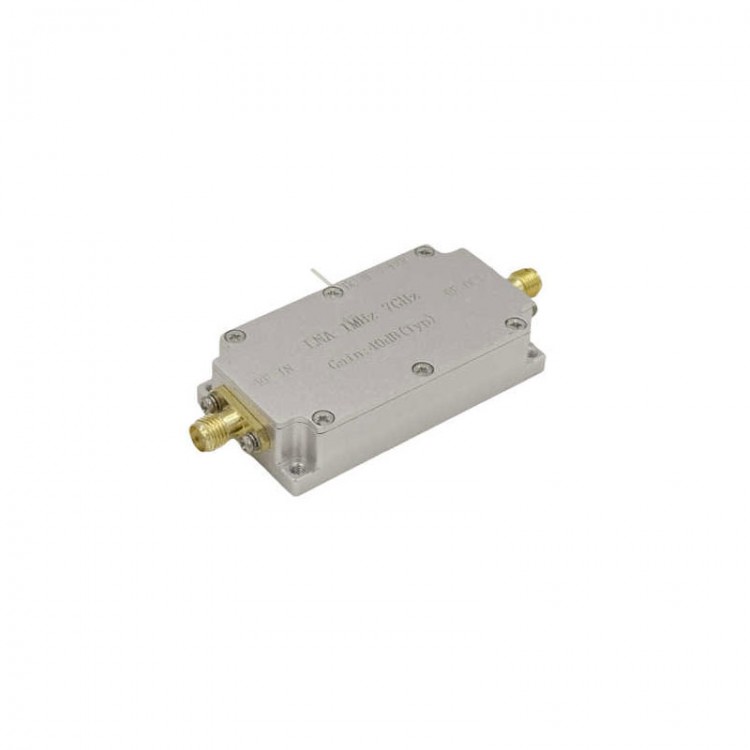

LNA-1MHz-7GHz 1MHz-7.2GHz 40dB LNA Low Noise Amplifier RF Amplifier Module (without Power Supply)
Attention:
1. The input terminal (RF in) and the output terminal (RF out) of the module must be connected first. And then connect the module to a DC power supply.
2. Be sure to connect the positive and negative electrodes correctly when the module is powered by a DC power supply. Reverse connection is not allowed because the module will be damaged.
Specifications:
1. Frequency bandwidth: 1MHz-7.2GHz
2. Impedance of input and output ports: 50Ω
3. Gain: 40dB
4. Maximum input power: -25dBm
5. Maximum output power: 13dBm (20mW)
6. NF: <4dB
7. In-band flatness: superior
8. DC power supply: 9-12V/190mA
9. Connector type: SMA female
Package Included:
* 1 x LNA module
Packaging Details:
* Weight: 0.18kg
