  • LNA-1MHz-7GHz 1MHz-7.2GHz 40dB LNA Low Noise Amplifier RF Amplifier (with Type-C Power Supply)

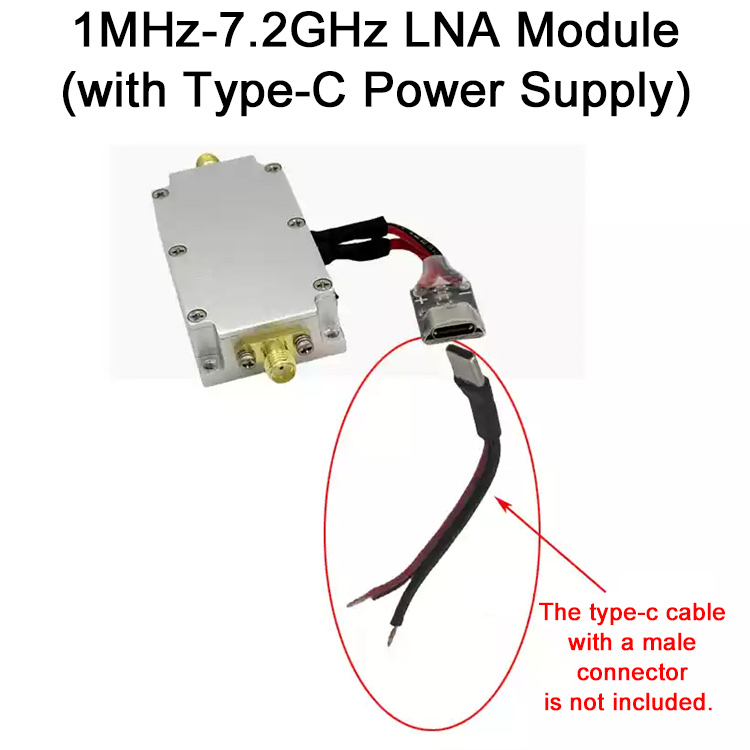

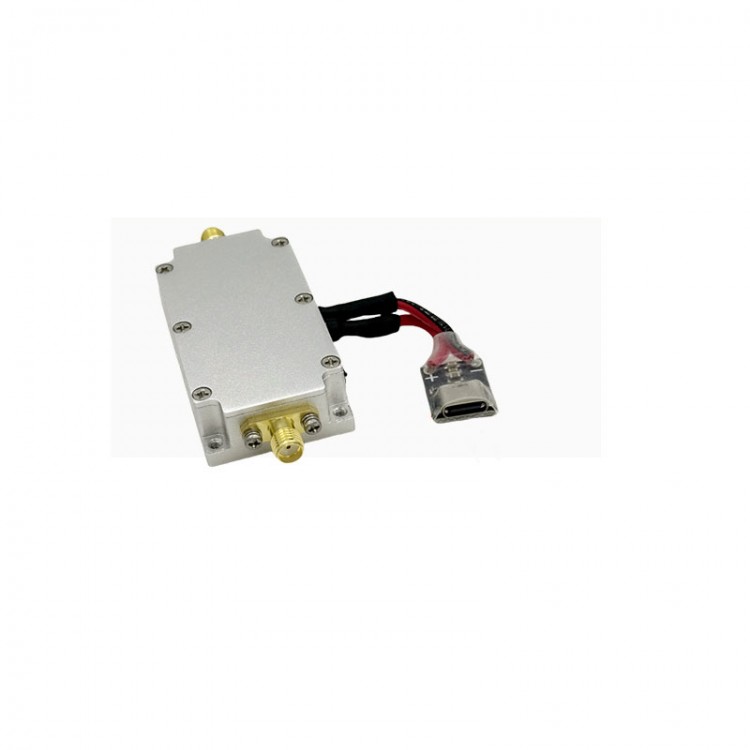

LNA-1MHz-7GHz 1MHz-7.2GHz 40dB LNA Low Noise Amplifier RF Amplifier (with Type-C Power Supply)

Availability: In stock, usually dispatched in 1 business day

  • Price:$61.77
  • Price in reward points: 618 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $60.53 $59.30 $57.45 $54.98 Contact US
Quantity:
Buy it now Add cart

You might like

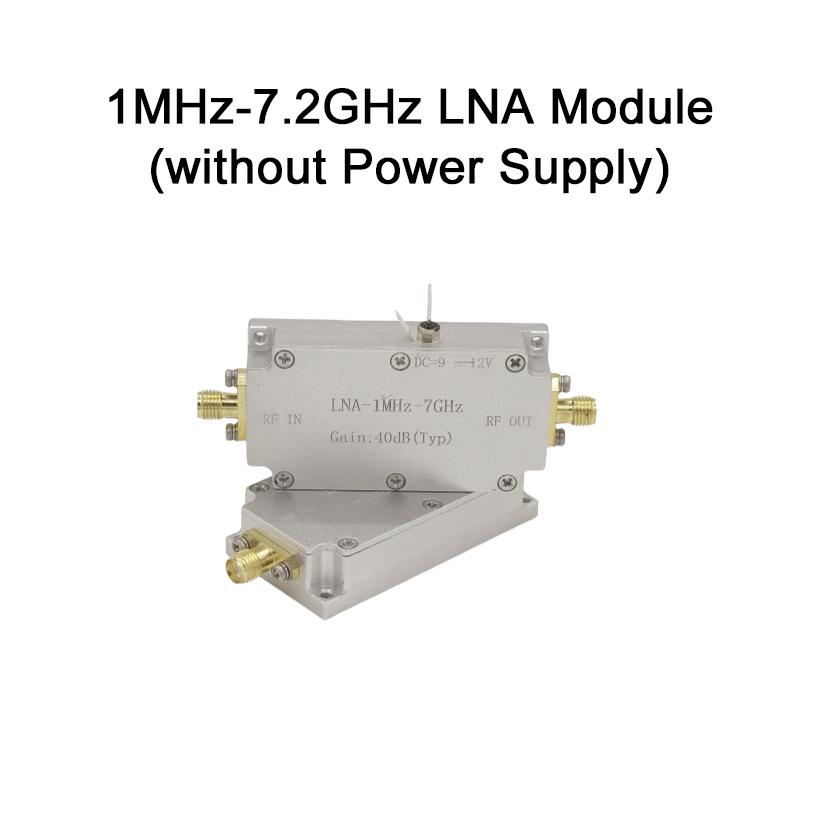

LNA-1MHz-7GHz 1MHz-7.2GHz 40dB LNA Low Noise Amplifier RF Amplifier Module (without Power Supply)

LNA-1MHz-7GHz 1MHz-7.2GHz 40dB LNA Low Noise Amplifier RF Amplifier Module (without Power Supply)

$61.77

(0)
350MHz - 7GHz LNA Low Noise Amplifier 35dB Gain Wideband RF Amplifier Module without Power Supply Module

350MHz - 7GHz LNA Low Noise Amplifier 35dB Gain Wideband RF Amplifier Module without Power Supply Module

$55.79

(0)
350MHz - 7GHz LNA Low Noise Amplifier 35dB Gain Wideband RF Amplifier Module with Type-C 5V Power Supply Module

350MHz - 7GHz LNA Low Noise Amplifier 35dB Gain Wideband RF Amplifier Module with Type-C 5V Power Supply Module

$55.79

(0)
0.1MHz-7.2GHz RF Module LNA Low Noise Amplifier 22dB High Quality RF Accessory with SMA Female Connector

0.1MHz-7.2GHz RF Module LNA Low Noise Amplifier 22dB High Quality RF Accessory with SMA Female Connector

$37.52

(0)
RC-FMD5W2 76-108MHz 2KM Digital Display FM Transmitter 0.5W Stereo Transmitter with 1m Telescopic Antenna

RC-FMD5W2 76-108MHz 2KM Digital Display FM Transmitter 0.5W Stereo Transmitter with 1m Telescopic Antenna

$35.72

(0)
KC9603A 1-1000MHz 0.5W Driver Amplifier Preamplifier Preamp Module with 22dB Gain Medium Power

KC9603A 1-1000MHz 0.5W Driver Amplifier Preamplifier Preamp Module with 22dB Gain Medium Power

$78.64

(0)
MF02S High-End Version Hifi Player USB DAC Headphone Amp Lossless Music DSD Supports Car Bluetooth

MF02S High-End Version Hifi Player USB DAC Headphone Amp Lossless Music DSD Supports Car Bluetooth

$347.37

(0)
10kV/A 1mA 4-Channel IV Conversion Amplifier Module Photodiode Detector Transimpedance Amplifier Photoelectric Sensor

10kV/A 1mA 4-Channel IV Conversion Amplifier Module Photodiode Detector Transimpedance Amplifier Photoelectric Sensor

$94.27

(0)
LNA-1MHz-7GHz 1MHz-7.2GHz 40dB LNA Low Noise Amplifier RF Amplifier (with Type-C Power Supply)

Attention:
1. The input terminal (RF in) and the output terminal (RF out) of the module must be connected first. And then connect the module to a DC power supply.
2. Be sure to connect the positive and negative electrodes correctly when the module is powered by a DC power supply. Reverse connection is not allowed because the module will be damaged.

Specifications:
1. Frequency bandwidth: 1MHz-7.2GHz

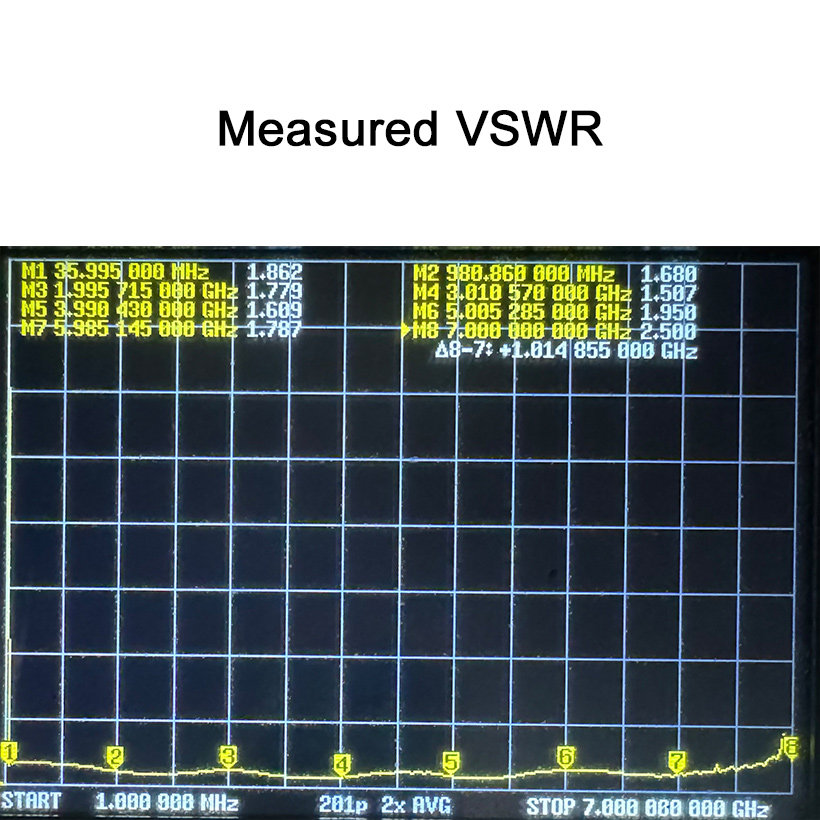

2. Impedance of input and output ports: 50Ω

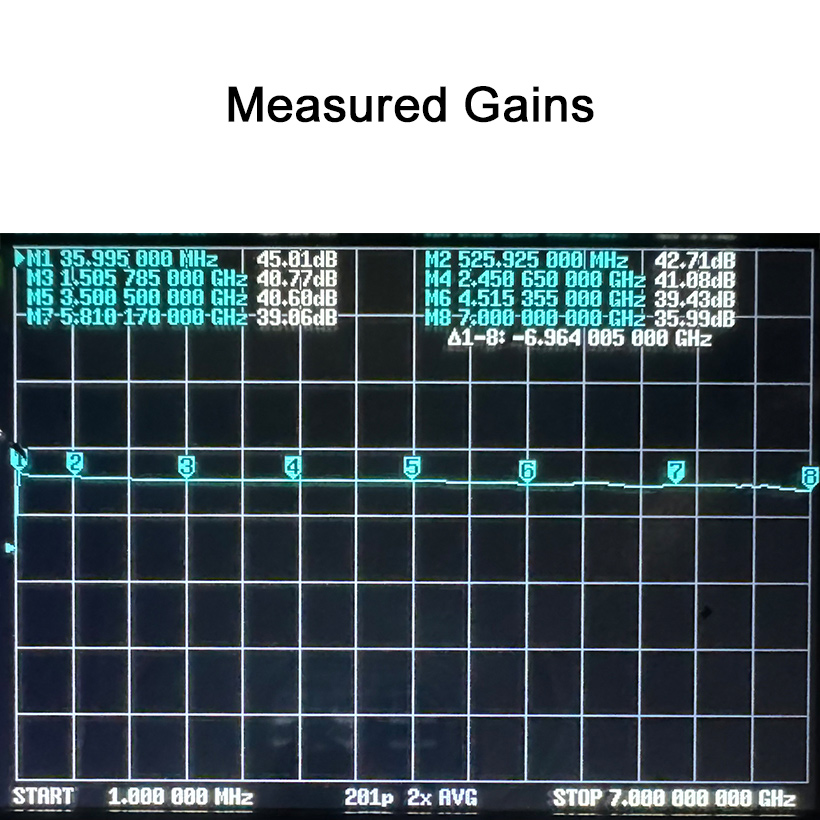

3. Gain: 40dB
4. Maximum input power: -25dBm
5. Maximum output power: 13dBm (20mW)
6. NF: <4dB
7. In-band flatness: superior
8. DC power supply: 9-12V/190mA
9. Connector type: SMA female

Package Included:
* 1 x LNA module

Packaging Details:
* Weight: 0.18kg
