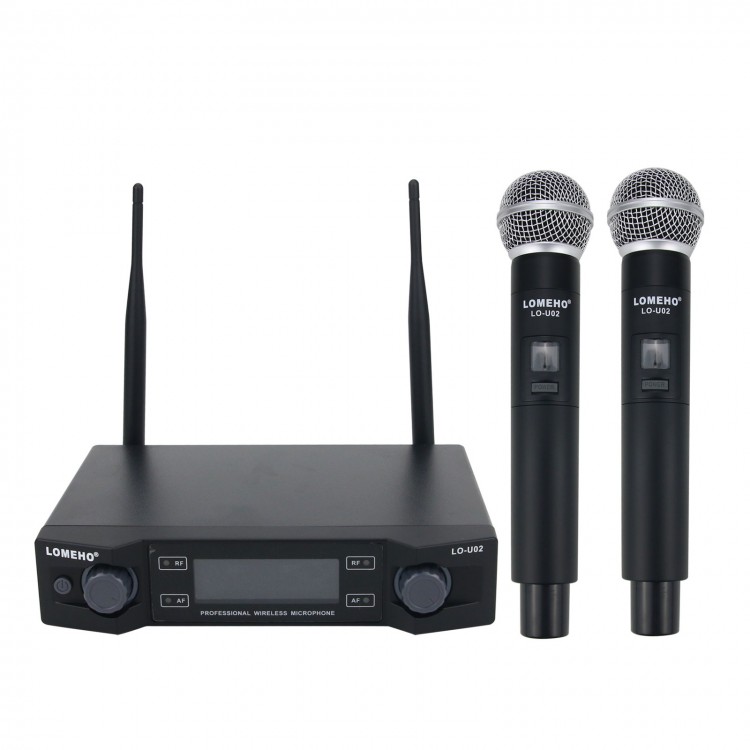

FREEBOSS LO-U02 UHF Wireless Microphone System Dual Channel Receiver 2 Handheld Mic Transmitter

FREEBOSS LO-U02 UHF Wireless Microphone System Dual Channel Receiver 2 Handheld Mic Transmitter

Specifications:
UHF Band Fixed Frequency: 650Mhz, 680Mhz
Transmitter: 2pcs plastic handhled microphones
Receiver Front: plastic box, on/off button, individual volume knob with light, AF/RF Indicator
Receiver Back: one XLR outputs and one 1/4"" mixed output.
Working Range: up to 96 Feet ( up to 30 meter), suitable for karaoke, speaking, party, church, etc.
Battery: 4*AA (not included in the package)

Receiver:

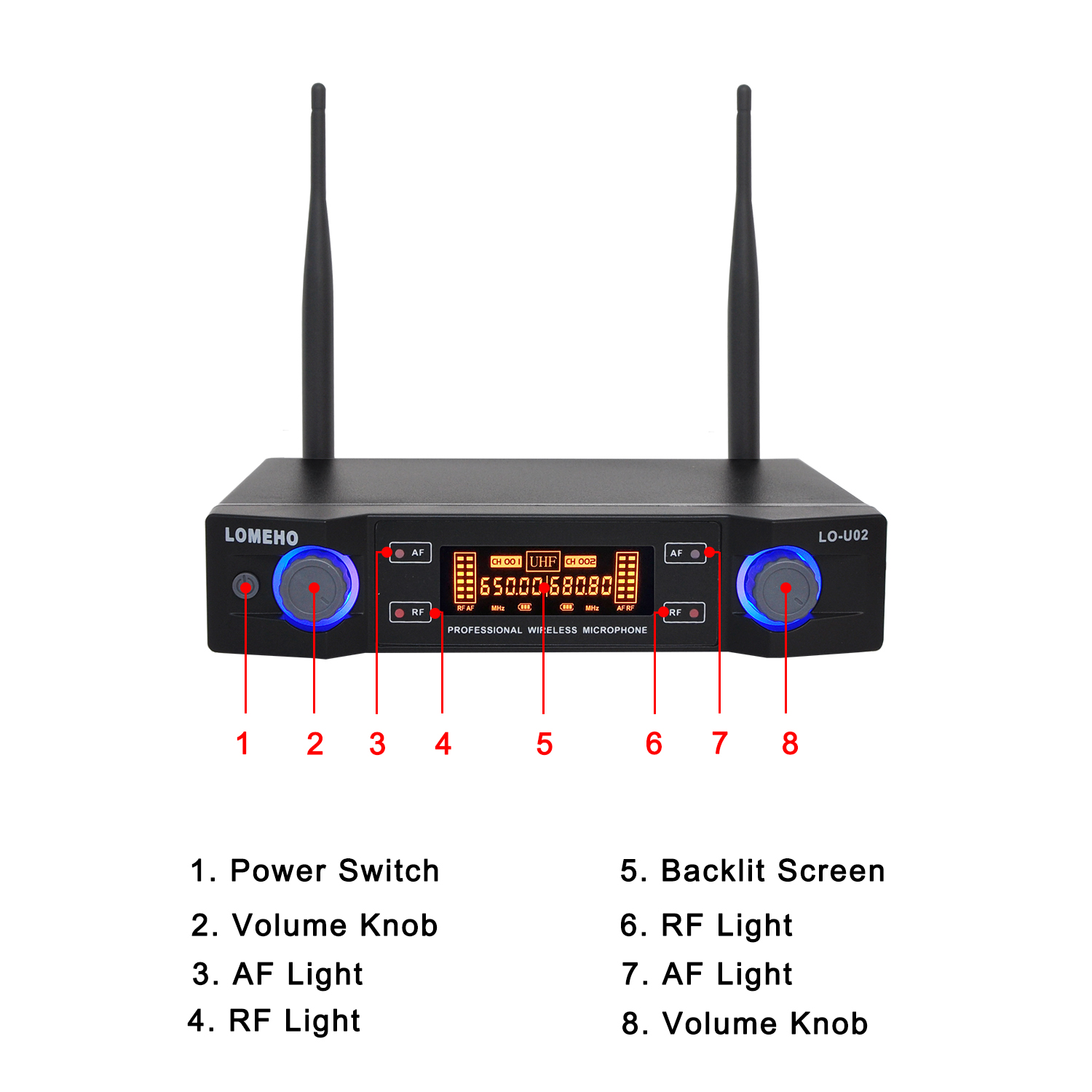

Receiver front panel function:
1) Volume Knob:
clockwise: volumn from low to high
anticlockwise: volumn from high to low.

2) RF Led Indictaor:
when the receiver is on working status,
A) Microphone A/B no power, left/right RF light is off
B) Microphone A/B is on, left/right RF light is on

3) AF Led Indictaor:
when RF indicator is on, microphone A/B power is on
A) Microphone A/B pick up the sound, the AF light is on
B) no sound is picked up, the AF light is off.

4) Backlit Screen:
It is only for beauty, the screen content will not change.

5) Power Switch:
A) Link the power adapter to receiver power socket,then link the power adapter to 220V power.
B) Press the receiver power button to "1", the receiver is on "working" status.

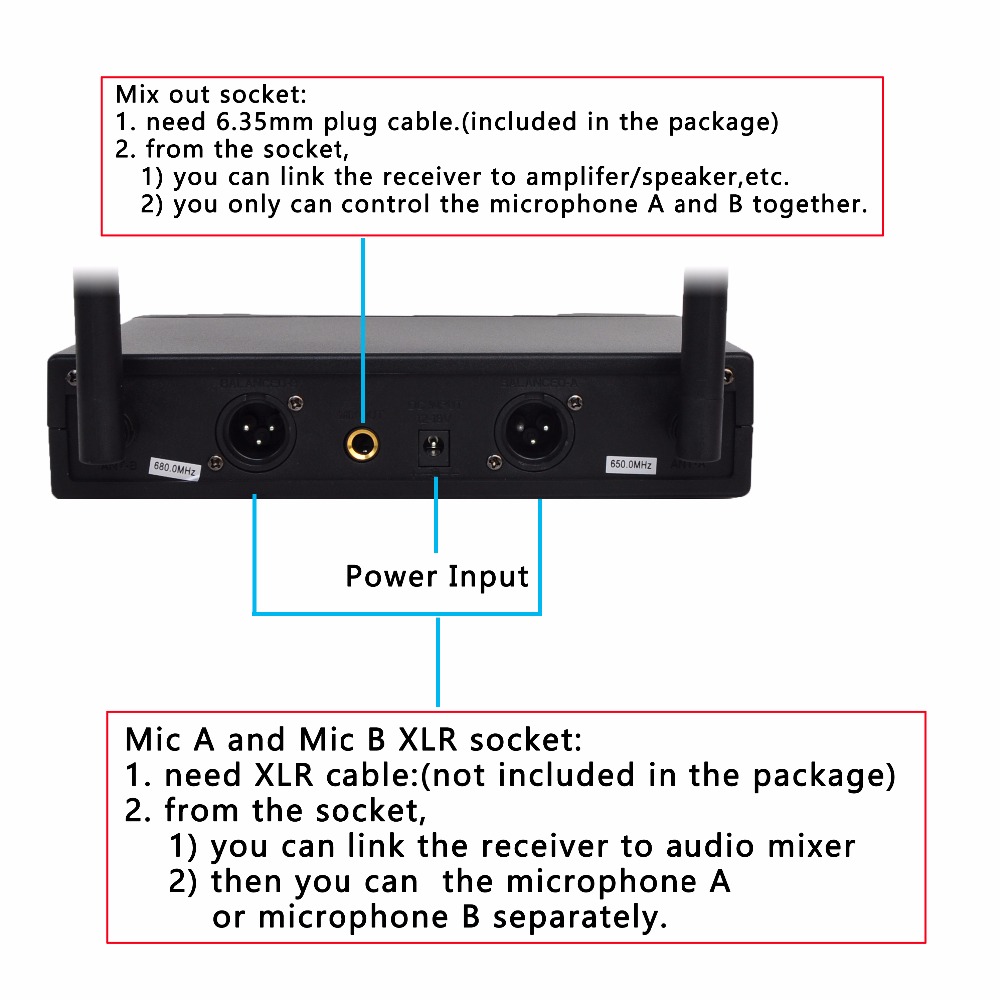

Receiver back panel function:
1) Mic XLR socket (BALANCED OUT):
1) Mic XLR socket (BALANCED OUT):
  A) Need XLR cable (not included in the package),
  B) From the socket,
    a) you can link the receiver to audio mixer.
    b) then you can control the microphone A or microphone B separately.

2) Mix out socket:
  A) Need 6.35mm plug cable(included in the package)
  B) From the socket,
    a) you can link the receiver to amplifier/speaker, etc.
    b) you only can control the microphone A and B together.

Transmitter:
Material:
Plastic handheld, Comfort and smooth handling experience with elegant appearance.
Microphone head:
Polygon design to prevent rolling.
Cartridge:
1) Type: moving coil
2) Polar pattern: cardioid

Power Adapter:
1) EU plug
2) US Plug
3) Plug adapter

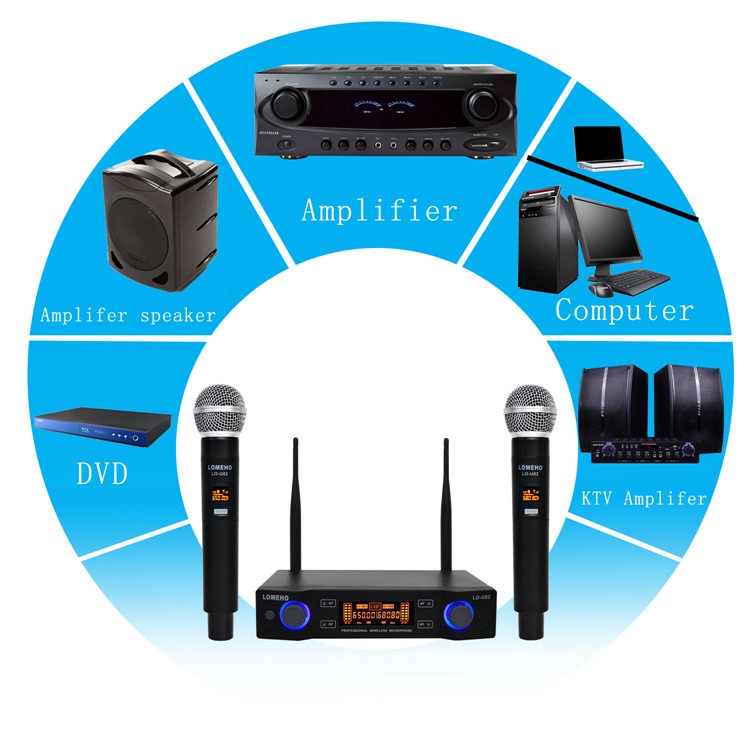

Application:

Packing List:
-1 x Receiver
-2 x Microphone
-1 x Audio Cable
-1 x Adapter
-1 x Manual

Note:
The battery is not included in the product package, please purchase by yourself, thanks!
