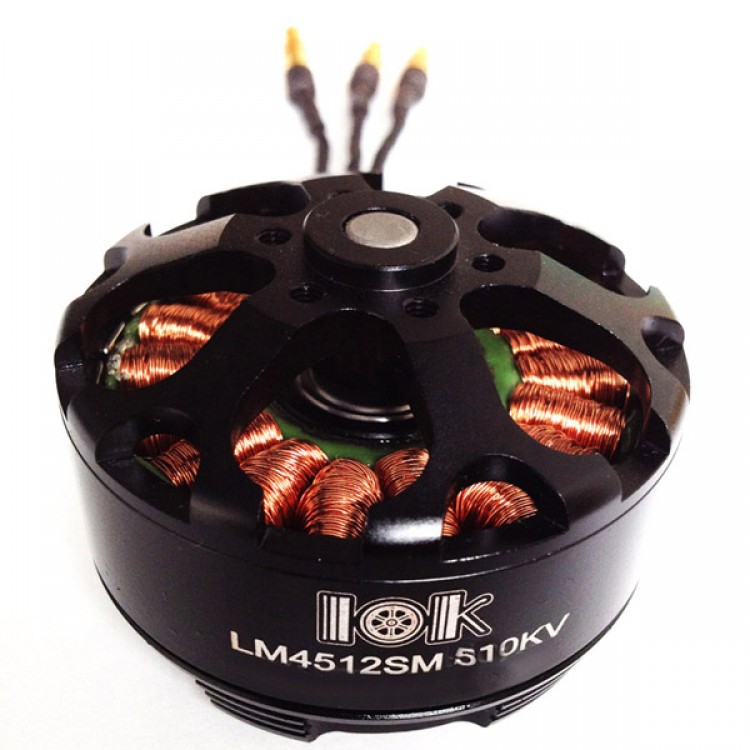

LOK KV510 Disk Type Brushless Motor 5S 3.6kg Thrust for Octacopter/Hexacopter LM4512SM-510KV
Specifications:
- Model: LM4512SM
- kv 510kv
- Motor diameter:52mm
- Motor Height:34mm
- Stator Diameter:45mm
- Stator Length:12mm
- Weight:188g
- Mounting hole pitch:
- Slot:18
- Class:24
- Li battery:5S 18.5V
- Propeller shaft:8mm
| NO | KV | Weight | size | size | Vol(V) | current(A) | Thrust(G) | G / W | (W) |
| LM4512SM 510KV(7) | 510 | 190 | 52X34 | 14X7 | 18.5 | 3.4 | 500 | 7.95 | 62.9 |
| 510 | 190 | 52X34 | 14X7 | 18.5 | 8.3 | 1000 | 6.51 | 153.55 | |
| 510 | 190 | 52X34 | 14X7 | 18.5 | 32 | Q 2670 | 4.51 | 592 | |
| 510 | 190 | 52X34 | 15X8 | 18.5 | 3.3 | 500 | 8.2 | 61.05 | |
| 510 | 190 | 52X34 | 15X8 | 18.5 | 7.7 | 1000 | 7.02 | 142.45 | |
| 510 | 190 | 52X34 | 15X8 | 18.5 | 42 | Q 3320 | 4.27 | 777 | |
| 510 | 190 | 52X34 | 16X8 | 18.5 | 2.9 | 500 | 9.32 | 53.65 | |
| 510 | 190 | 52X34 | 16X8 | 18.5 | 7.2 | 1000 | 7.51 | 133.2 | |
| 510 | 190 | 52X34 | 16X8 | 18.5 | 48 | Q 3615 | 4.07 | 888 | |
| 510 | 190 | 52X34 | 17X8 | 18.5 | 3 | 500 | 9.01 | 55.5 | |
| 510 | 190 | 52X34 | 17X8 | 18.5 | 8 | 1000 | 6.76 | 148 | |
| 510 | 190 | 52X34 | 17X8 | 18.5 | 61 | Q 3550 | 3.15 | 1128.5 |
