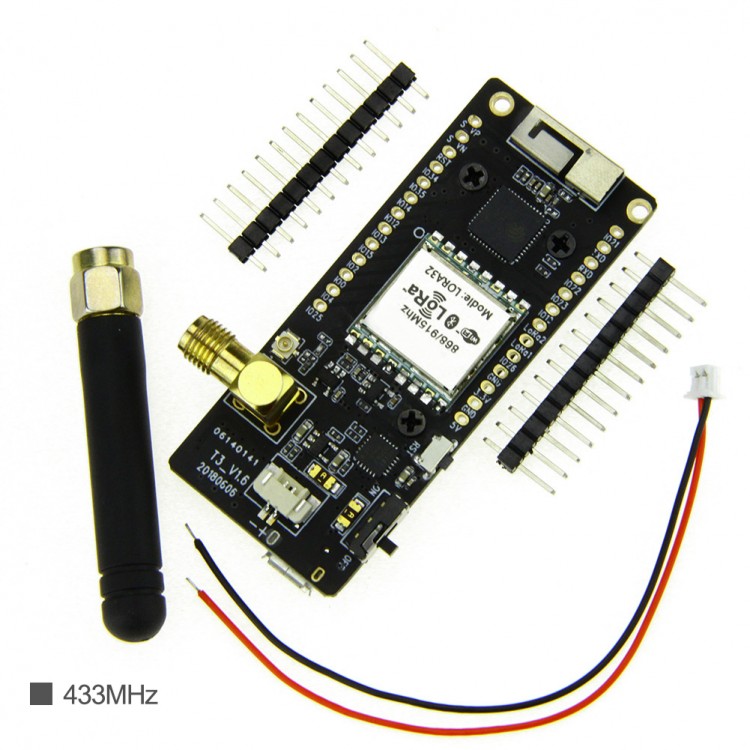

LoRa32 V2.1 433MHz ESP32 LoRa OLED 0.96" Wireless WIFI Bluetooth Module SMA IP5306 Support SD Card
Description:
This product is based on LoRa radio frequency.
There are 868MHz (common in North America), 915MHz (common in Europe)
and 433MHz (common in Asia Pacific) for option.
Product Description:
- Working voltage: 1.8~3.7v
- Acceptable current: 10~14mA
- Transmit current: 120mA at +20dBm; 90mA at +17dBm; 29mA at +13dBm
- Operating frequency: 868M/915MHz/433MHz
- Transmit power: +20dBm
- Receive sensitivity:
* -139dBm at LoRa &62.5Khz&SF=12&146bps
* -136dBm at LoRa &125Khz&SF=12&293bps
* -118dBm at LoRa &125Khz&SF=6&9380bps
* -123dBm at FSK&5Khz&1.2Kbps
- Frequency error: +/-15KHz
- FIFO space: 64Byte
- Data rate: 1.2K~300Kbps at FSK; 0.018K~37.5Kbps at LoRa
- Modulation Mode: FSK, GFSK, MSK, GMSK ,LoRa TM, OOK
- Interface form: SPI
- Sleep current: 0.2uA at SLEEP; 1.5uA at IDLE
- Operating temperature: -40℃ to +85℃
- Digital RSSI function
- Automatic frequency correction
- Automatic gain control
- RF wake-up function
- Low voltage detection and temperature sensor
- Fast wake-up and frequency hopping
- Highly configurable packet handler
- SMA antenna
- IP5306
Package Included:
- 1 x Set of Module
Note:
- SD card is not included.
