| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $319.48 | $312.96 | $303.18 | $290.14 | Contact US |
Description
- Equipped with AKM’s premium series DAC chip AK4490, support up to DSD250 format hard decoding.
- Multiple Interfaces
- LINE OUT / SPDIF: line output / fiber output
- PHONE: 3.5mm single-end earphone output
- BAL HP: 2.5mm balanced earphone output
- Two play ways, unlimited possibilities
- DAMP Damping switch controls bring different musical sensations
- Coordinated with the choice of GAIN can bring different hearing differences
- One second boot, no need to wait
- Quiet, but not quiet
- Signal to noise ratio> 116dB
- Channel isolation> 118dB
- Emotions, outbreak in a moment
- Amp chip OPA1622, in the case of 32ohm load, the output power can up to 150mW + 150mW
- Support decoding capabilities:
- DSD64 / DSD128 / DSD256 and 32bit / 384KHz PCM
- Support DSD hard decoding DSD64/128/256, DFF/DSF/ ISO/WAV/MP3/FLAC/APE/OGG/M4A/AAC/ALAC/CUE
- Get rid of the shackles
- Equipped with Bluetooth, to ensure HI-FI sound quality
- Can connect with Bluetooth headset, Bluetooth speakers and other equipment
- Good music, all put in your player
- Support 2T TF card
- Humble and reserved, gentleman taste
- Metal stamping oxidation panel, gray and black color, physical button design
- Can be perceived as faithful and flexible
- Music, slide with your fingertips
- Newly designed control dial with physical buttons, quickly find tracks, sensitive and durable, subtle damping, unforgettable touch
- Compact shape, only for one hand to hold
- Arc processing, in keeping with ergonomics three-dimensional design
Specification
- Playing format: DSD64/128/256
- DFF/DSF/ ISO/WAV/MP3/FLAC/APE/OGG/M4A/AAC/ALAC/CUE
- DSD sampling rate: 2.8MHz, 5.6MHz, 11.2MHz
- Display: 2-inch colorful TFT LCD screen
- PCM: 32bit/32kHz – 32bit/384kHz
- Processor: ADI Blackfin 514 DSP
- DAC chip: AK4490EN
- Headphone AMP chip: OPA1622
- USB transfer: Super Speed USB3.0
- Memory Card: TF card (support 2TB)
- Battery capacity: 1700mAh lithium polymer battery
- Wireless transmission: Bluetooth A2DP stereo audio
- Size: 98 * 55 * 17.5mm (excluding the key projections)
- Weight: 110g
- Firmware Upgrade: Support
- Headphone output
- Frequency response: ± 0.2dB (20 ~ 20kHz)
- THD + N: <0.0006% (1KHz, A weighted)
- Output level: + 10.4dBu
- Output power: 150mw @ 32ohm per channel
- Signal to noise ratio:> 114dB
- Stereo crosstalk: <- 118dB
- Line output
- Frequency response: ± 0.2dB (20 ~ 20kHz)
- THD + N: <0.0004% (1kHz, A Weighted)
- Output level: + 8.8dBu
- Signal to noise ratio:> 116dB
- Stereo crosstalk: <- 118dB

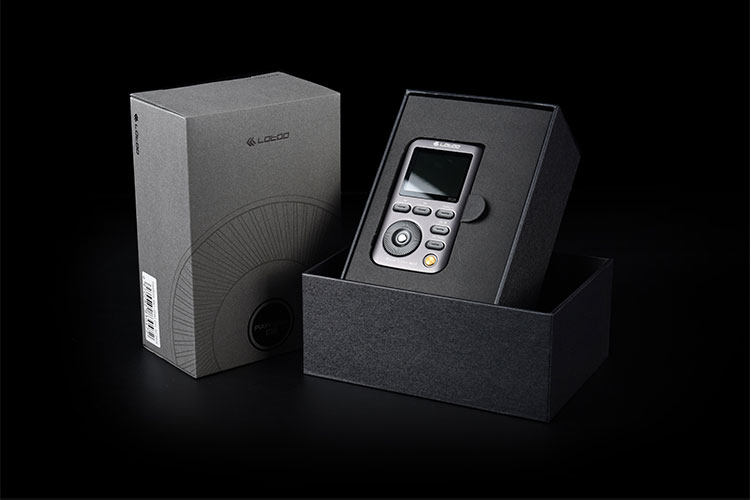

Package

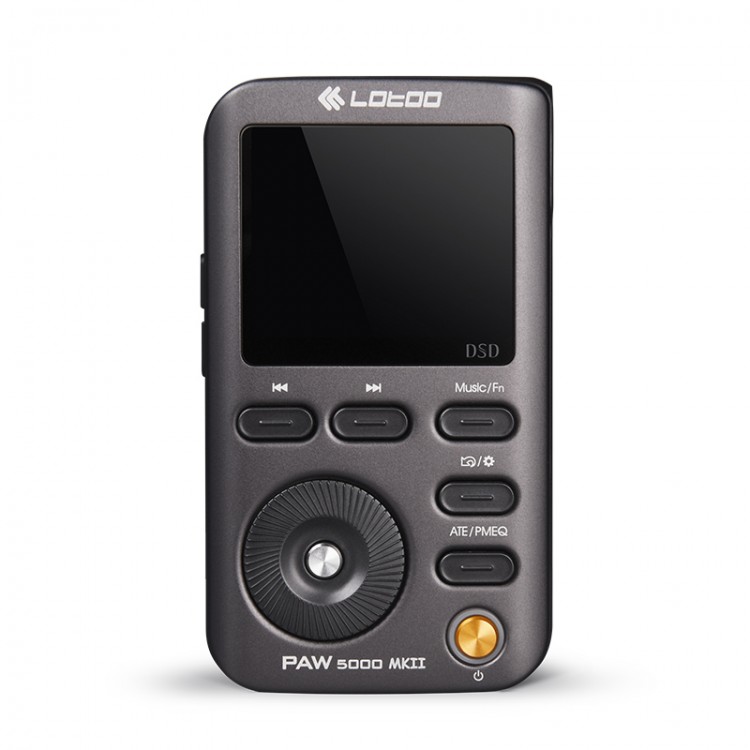

- LOTOO PAW 5000MKII
- Sport clip
- Armband
- USB 3.0 data cable
