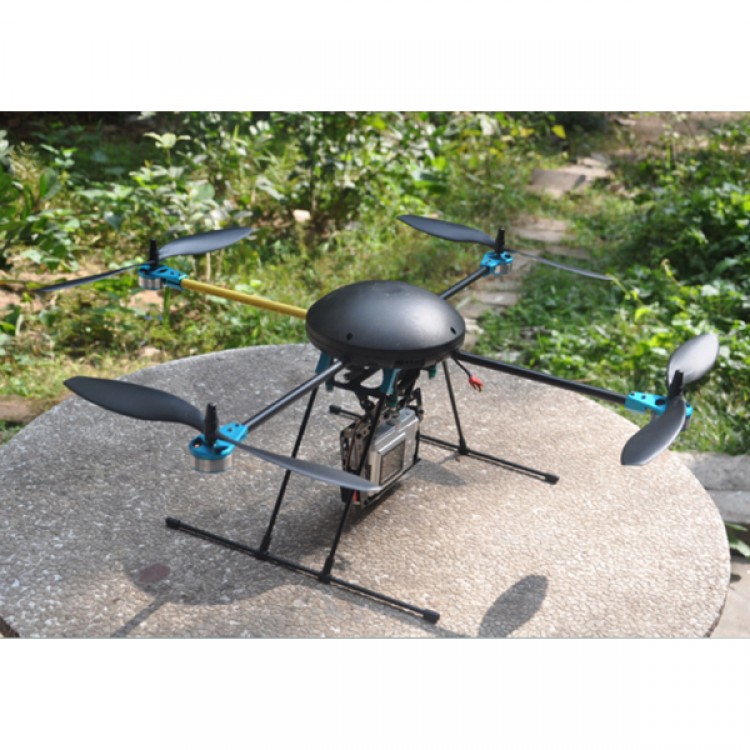

LOTUSRC T580 RTF Quadcopter Aircraft +Remote Controller Full Set
Description:
- The Lotus T580 is the latest 580mm size quadcopters which can now be configured to fly in both 'x' and '+' modes.It is ready to fly.Assembled quad straight out of the box, you only need to attach the included landing gear and propellers. Add your own receiver and Li-Po battery to fly.
Features:
- Inertial-based(6DOF IMU) self-stabilization system.Good for AV/AP applications,but not suitable for acrobatics flights.
- 4 channels Tx is enough.No more switchs for the flight modes
- ARTF,no extra settings needed.Put on the props,the battery and the RX,then turn on the Tx to take off !
- AP/AV based
- Auto Barometer-based altitude hold if no throttle input changed in 2s..
- X and Corss flight modes available.Only Cross mode was available in the beginning.But new improvements for the X mode had been tested successfully.
- Optional single axis camera mount(pitch) with double axis self-stabilization(pitch and roll).
- Larger MTM distance(580mm),larger payload (<580g),and longer flight time(25 mins with 3S Battery).Special props offered by the manufacture.
Powerful
- Optional GPS position hold(The GPS module still in internal testing, not included in this kit).
- Buzzer warning for low battery,and optional lights for night flight(The interfaces are available,but soldering should be done before coming out -of the factory according to the demands of the costomers.In order to avoid some trouble of making the hardware easy to be damaged).
- Other features considering to be supported in the future:Configuration Software available and Firmware upgradable.
- This T580 is a RTF package, including 11.1V 2200MAH lithium battery, 2.4G remote control-6channel and receiver.
- Note: The battery capacity should be ≤2200mAh,or the ESC or flight controlller would be Burn.
Specifications:
Machine size | 608 × 608 × 243 | mm | ±3mm |
Expand size of the largest | 885 × 885 × 243 | mm |
|
Motor Wheelbase | Diagonal line, the two motor centers wheelbase | 580mm | ±3mm |
Propeller | 1260, positive and negative special paddle | 12” |
|
Battery | ≤ 2200mAh | 1P |
|
Single Weight | No battery, receiver, load | 730g | ±10g |
Take-off weigh | 3S 2200mAh 1P Battery, receiver, head | 950g | standard |
Payload | Camera card | ≤230g | standard |
Maximum power pulled | Using the standard battery 1P | 2400g | - |
Maximum payload | Using the standard battery 1P | ≤580g | - |
Maximum takeoff weight | Using the standard battery 1P | 1800g | Safety limit |
Flight distance | Remote control device and battery capacity by the decision | - | - |
Flight Time | 3S 2200mAh 1P Battery, receiver | 12 minutes | No wind hover |
Wind strength | ≤4 | Class | - |
