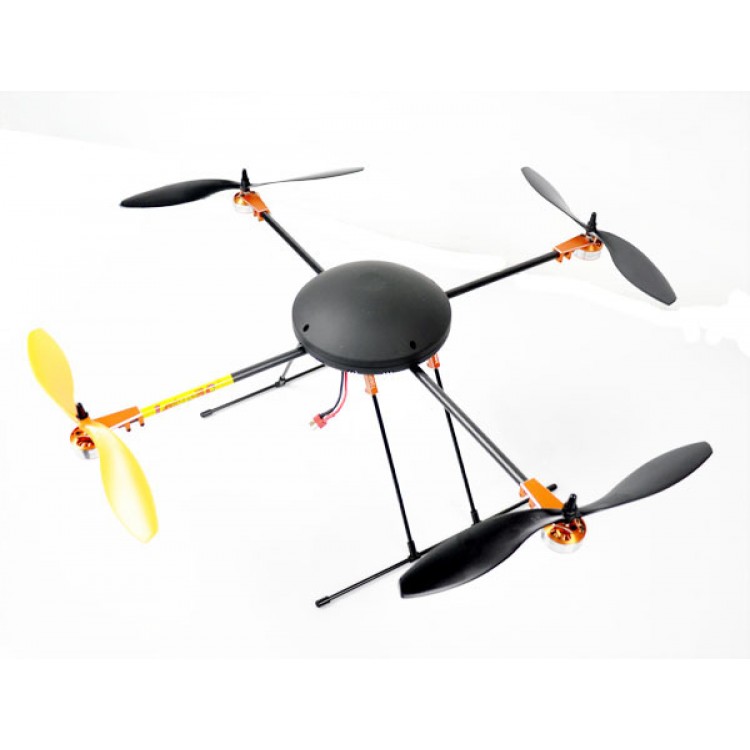

LOTUSRC T580P Quadcopter ARTF Mid-level Model Product in DIY-type Aircraft (Half Assembled)
Function and features:
T580p quad-copter is a mid-level model product in DIY-type aircraft, designed for flight photography players.
1) High efficiency: with 12inch slow fly propellers, disc brushless motor, optimal efficiency can reach 12g/W.
2) Stability: take high-performance MEMS sensor for 6DOF stabilization with low drift, shock resistance ability.
3) Simple: only require 4channel to fly. Property core system, it is compatible to near all RC equipments.
4) Easy to use: can be installed quickly, easy to operate, and support self-stabilizing PTZ function.
5) T580P can take off and land vertically, spot hover, altitude hold, fly left, right, etc.
6) On the bottom of this aircraft, we can install a camera mount. It takes suspension system between PTZ (camera mount) and ARF, and can filter high and low frequency vibration. Camera mount swings on the cross beam of LG, can be installed and dismantled quickly.
Specifications:
|
No. |
Name |
Specification |
Quantity |
Unit |
|
1 |
Cover |
ABS composite material |
1 |
Set |
|
2 |
Arm beam |
Carbon fiber/glass fiber |
4 |
Pcs |
|
3 |
Landing gear |
Glass fiber/rubber/high-strength aluminum |
1 |
Set |
|
4 |
Motors |
C2806 KV600 |
4 |
Pcs |
|
5 |
Propeller |
1260、1260R |
4 |
Pcs |
|
6 |
Camera mount |
Carbon fiber/carbon fiber balance |
1 |
set |
|
7 |
PTZ hanging bracket |
Flexible damper |
1 |
Set |
|
8 |
PTZ steering engine |
Metal high-speed digital steering engine |
2 |
Pcs |
|
9 |
Brushless motor |
2-3S 18A high-speed ESC |
4 |
Pair |
|
10 |
FC system |
Inertial attitude self-stable system |
1 |
set |
|

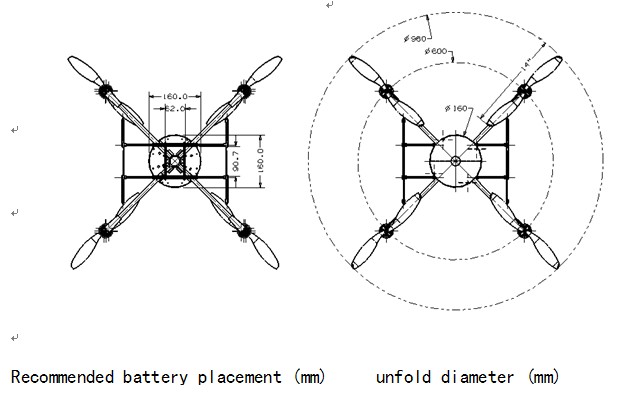

Aircraft dimension |
608 × 608 × 243 |
Mm |
|
Maximum expandable size |
885 × 885 × 243 |
Mm |
|
Motor to motor |
Diagonal distance between two motor centers |
580mm |
|
Propeller |
1260frontal and versa props |
12inch |
|
Battery |
LiPo 3S 2200mAh 20C |
Standard 1p |
|
Aircraft weight(kit only) |
Without battery, receiver, applicable payload |
730gram |
|
Take-off weight |
3S 2200mAh 1P battery, receiver, camera mount |
950gram |
|
Recommended payload |
Card-type camera |
≤230gram |
|
Maximum pull |
1P standard battery |
2400gram |
|
maximum payload |
1P standard battery |
≤580gram |
|
Maximum take-off weight |
1P standard battery |
1800gram |
|
Flight distance |
Visual area |
- |
|
Flight time |
3S 2200mAh 1P battery, receiver |
12mins |
|
Wind resistance |
≤4 |
Class |
