LOTUSRC T80 Quadcopter ARTF Mini-type Aircraft Model Designed
Function and features:

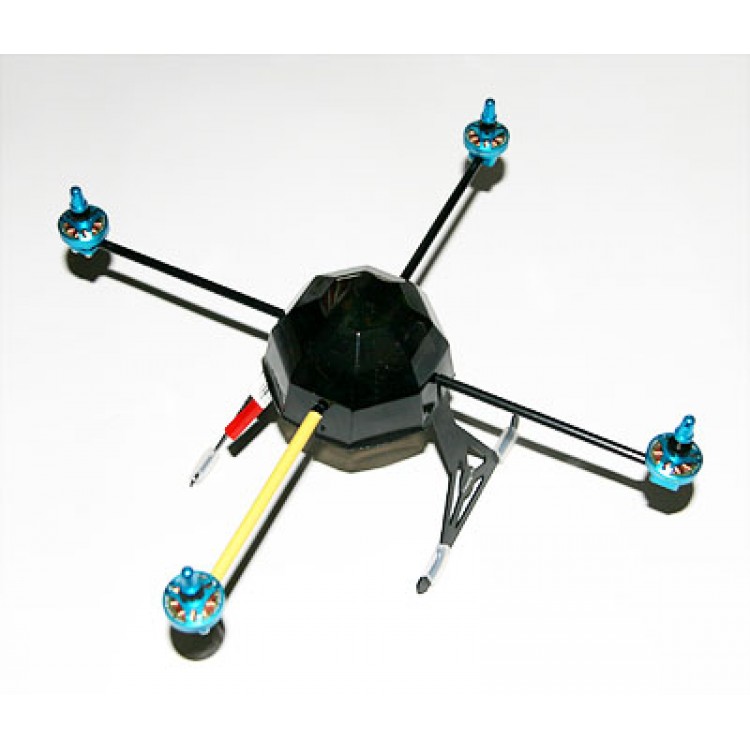

T80 quad-copter is a mini-type aircraft model designed for indoor and outdoor recreational flight. It is able to hang light PTZ camera, and take flight photography or do FPV fight.
1) Small dimension, light weight, taking off and landing vertically, low flying noise, fit for small acreage or space flying and landing.
2) Safe and easy to play, flight stable. Built in flight balance stable system. The operator do not need to replace the flight altitude frequently, stable hovering and aerial flight can be achieved.
3) Use four same designed direct drive brushless motors, being reasonable placed, have high power conversion and strong thrust.
4) Flexible flight entertainment and configurable applying ability, hanging reasonable weight camera equipment is allowed for taking flight photography, FPV, etc, all expandable apply activities.
5) All aircraft metal parts are processed by sophisticated CNC skill, reasonably structured, have strong impact resistance, and also are durable.
6) Only need 4 remote control proportion channels to fly. Property core system, it is compatible to all remote control equipments.
7) Dark grey transparent cover can do a help to observe aircraft working condition.
Specifications:
- Technical parameter : this sheet is only for reference, product configuration may have little alteration in different versions. Please subject to material object.
Efficient payload |
Mini vidicon / camera |
≤50grams |
standard |
Maximum lift force |
Use850mAh standard battery |
380grams |
_ |
Maximum payload |
Use 850mAh standard battery |
≤80grams |
_ |
Maximum takeoff weight |
Use850mAh standard battery |
280grams |
Safety margin |
Flight distance |
Depend on remote control equipment and battery capacity |
_ |
_ |
Flight time |
2S850mAh 15C battery |
12mins |
Hovering while no wind |
Wind resistance |
≤4 |
class |
_ |
Aircraft size |
298x298x243 |
mm |
±3mm |
Maximum expandable size |
475x475x128 |
mm |
±3mm |
Motor to motor |
Diagonal distance between two motor centers |
Mm |
±3mm |
Battery |
liPo 2S 850MaH 15c |
Standard |
1300mAh is usable |
Unit ARF weight |
No battery, receiver, applicable load |
165grams |
±5grams |
Takeoff weight |
2S 850mAh battery, receiver |
230grams |
Standard configuration |
Includes:
- 1x Pre-installed aircraft main body, including brushless ESC, flight control panel, motor.
- 4x propellers (positive and negative)
Note: The battery capacity should be ≤850mAh,or the ESC or flight controlller would be gone.
