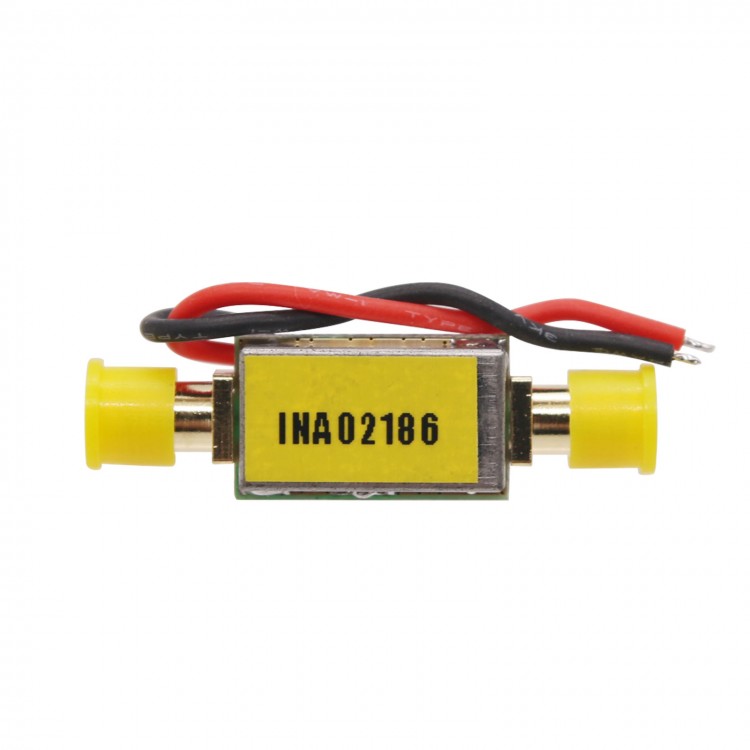

Low Noise RF Amplifier LNA Broadband 10-2000MHz Gain 31dB INA02186 SMA Female Input Output
Specifications:
- Power Supply: 12V (35mA)
- Gain: 31DB@0.5GHz
- Dimensions: 40 x 12 x 10mm (L*W*H) (Including the size of SMA connectors)
- Dimensions: 20 x 12 x 6mm (L*W*H) (Excluding the size of SMA connectors)
- Noise Figure: Typical 2dB@500MHz
- P1dB=11dB@500MHz
- Working Frequency: 10-2000MHz
- Input & Output Impedance: 50Ω
Package Included:
- 1 x Low Noise RF Amplifier

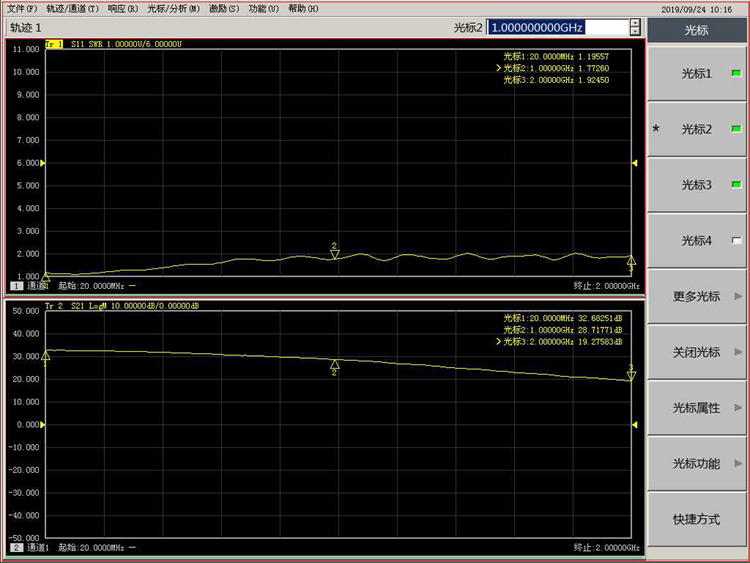

Measured Gain Curve (S21 S11):
