  • LPF-20MN 20MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

LPF-20MN 20MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

Availability: In stock, usually dispatched in 1 business day

  • Price:$31.50
  • Price in reward points: 315 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $30.87 $30.24 $29.30 $28.04 Contact US
Quantity:
Buy it now Add cart

You might like

LPF-40MN 40MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

LPF-40MN 40MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

$31.50

(0)
12M Low Pass Filter 50ohms Impedance LPF High Quality RF Accessory with BNC Connector

12M Low Pass Filter 50ohms Impedance LPF High Quality RF Accessory with BNC Connector

$20.03

(0)
LPF-50MN 50MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

LPF-50MN 50MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

$31.50

(0)
10MHz 50ohms RF Low Pass Filter SMA Male to Female Connector Band Pass Filter High Quality RF Accessory

10MHz 50ohms RF Low Pass Filter SMA Male to Female Connector Band Pass Filter High Quality RF Accessory

$28.58

(0)
20MHz 50ohms RF Low Pass Filter SMA Female to Female Connector Band Pass Filter High Quality RF Accessory

20MHz 50ohms RF Low Pass Filter SMA Female to Female Connector Band Pass Filter High Quality RF Accessory

$24.70

(0)
LPF-30MN 30MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

LPF-30MN 30MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

$31.50

(0)
LPF-100MN 100MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

LPF-100MN 100MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

$31.50

(0)
200MHz 50ohms RF Low Pass Filter SMA Male to Female Connector Band Pass Filter High Quality RF Accessory

200MHz 50ohms RF Low Pass Filter SMA Male to Female Connector Band Pass Filter High Quality RF Accessory

$28.58

(0)

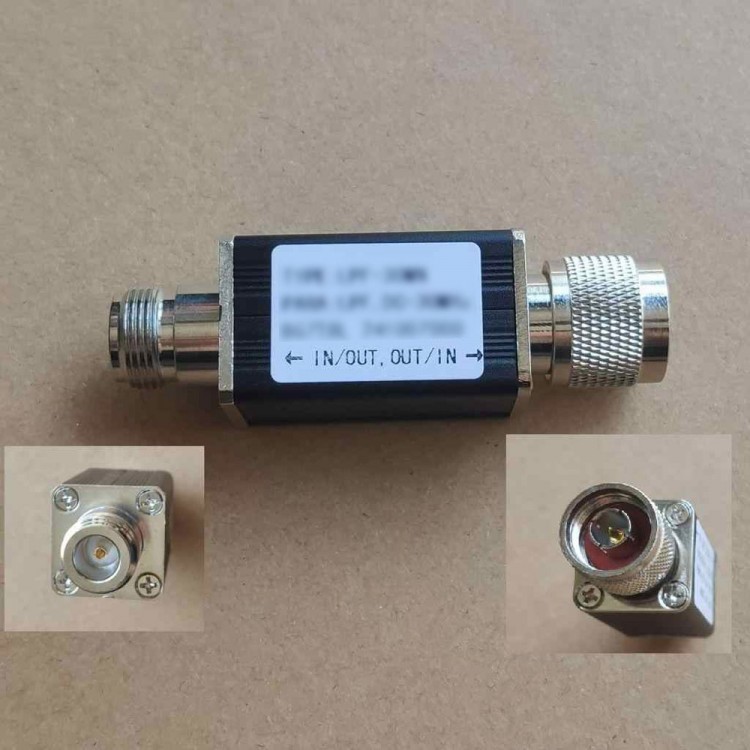

LPF-20MN 20MHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector

Specification:
- Model: LPF-20MN
- Stop frequency: 50K, 100K, 200K, 500K, 1M, 2M, 5M, 10M, 20M, 30M, 40M, 50M, 100M, 110M, 200M, 500M, 1G (optional)
- Input/output impedance: 50ohms
- Voltage: +/- 50V
- Connector: N female, N male
- Product size: 81 x 25 x 25mm
- Net weight: 80g

Insertion Loss (for some models):
- LPF-1MN: 1MHz LC LPF, DC-1M; insertion loss 1M-1.2dB, 2M-48dB, 3M-80dB
- LPF-5MN: 5M LC LPF, DC-5M; insertion loss 5M-2.7dB, 10M-50dB, 15-78dB
- LPF-10MN: 10M LC LPF, DC-10M; insertion loss 10M-1.8dB, 20M-49dB, 30M-65dB
- LPF-30MN: 30M LC LPF, DC-30M; insertion loss 30M-1.3dB, 60M-50dB, 90M-67dB
- LPF-40MN: 40M LC LPF, DC-40M; insertion loss 40M-1.8dB, 80M-58dB, 120M-65dB
- LPF-50MN: 50M LC LPF, DC-50M; insertion loss 50M-1.4dB, 100M-53dB, 150M-65dB
- LPF-100MN: 100M LC LPF; insertion loss 100M-1.5dB, 200M-55dB, 300M-55dB
- LPF-500MN: 500 LC LPF; insertion loss 500M-1.1dB, 1G-60dB, 1.5G-60dB
- LPF-1GN: 1G LC LPF; insertion loss 1G-1.1dB, 2G-49dB, 3G-600dB

Package Included:
- 1 x Low Pass Filter
