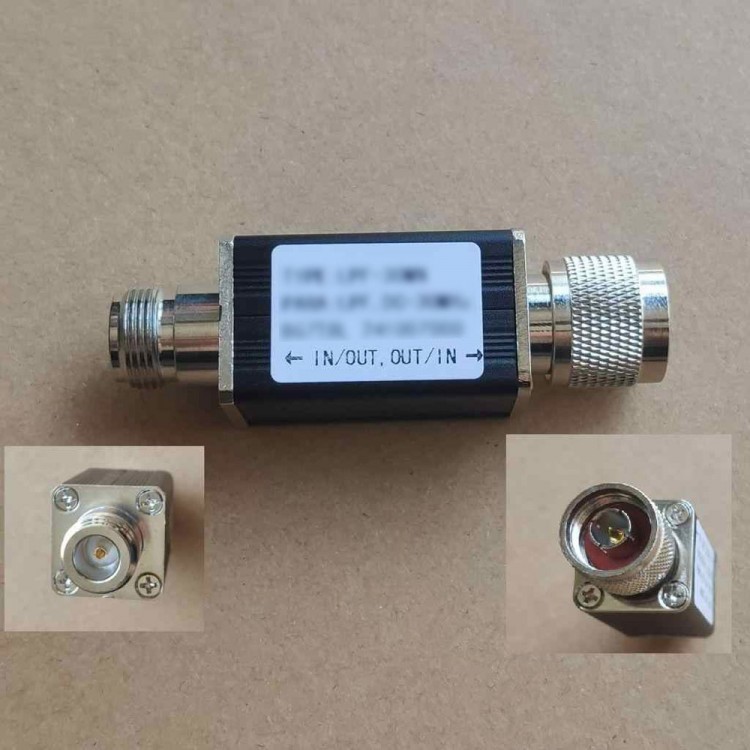

LPF-500KN 500kHz Low Pass Filter 50ohms LPF High Quality RF Accessory with N Male to N Female Connector
Specification:
- Model: LPF-500KN
- Stop frequency: 50K, 100K, 200K, 500K, 1M, 2M, 5M, 10M, 20M, 30M, 40M, 50M, 100M, 110M, 200M, 500M, 1G (optional)
- Input/output impedance: 50ohms
- Voltage: +/- 50V
- Connector: N female, N male
- Product size: 81 x 25 x 25mm
- Net weight: 80g
Insertion Loss (for some models):
- LPF-1MN: 1MHz LC LPF, DC-1M; insertion loss 1M-1.2dB, 2M-48dB, 3M-80dB
- LPF-5MN: 5M LC LPF, DC-5M; insertion loss 5M-2.7dB, 10M-50dB, 15-78dB
- LPF-10MN: 10M LC LPF, DC-10M; insertion loss 10M-1.8dB, 20M-49dB, 30M-65dB
- LPF-30MN: 30M LC LPF, DC-30M; insertion loss 30M-1.3dB, 60M-50dB, 90M-67dB
- LPF-40MN: 40M LC LPF, DC-40M; insertion loss 40M-1.8dB, 80M-58dB, 120M-65dB
- LPF-50MN: 50M LC LPF, DC-50M; insertion loss 50M-1.4dB, 100M-53dB, 150M-65dB
- LPF-100MN: 100M LC LPF; insertion loss 100M-1.5dB, 200M-55dB, 300M-55dB
- LPF-500MN: 500 LC LPF; insertion loss 500M-1.1dB, 1G-60dB, 1.5G-60dB
- LPF-1GN: 1G LC LPF; insertion loss 1G-1.1dB, 2G-49dB, 3G-600dB
Package Included:
- 1 x Low Pass Filter
