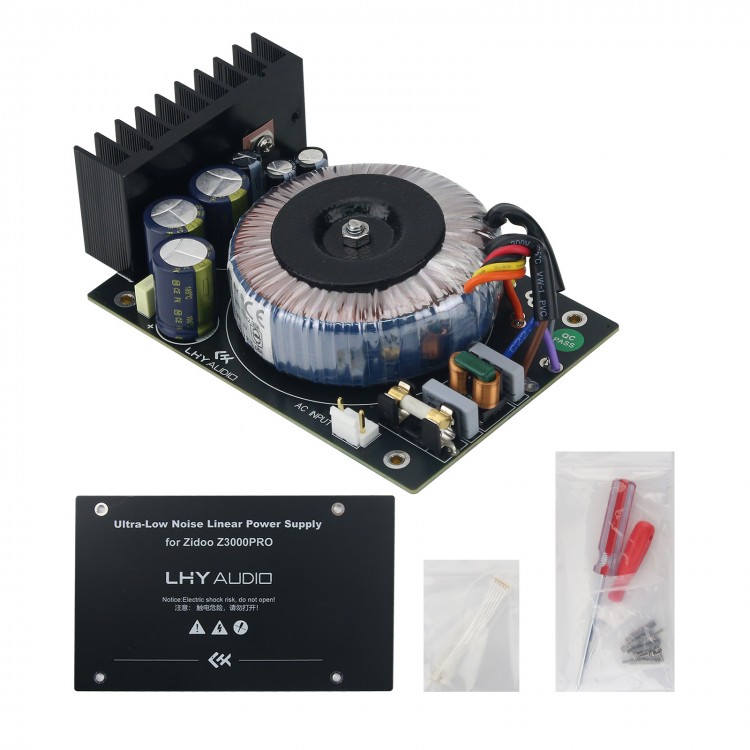

LPS-Z3000PRO Linear Power Supply Module DIY Low Ripple Noise DC Power Board for ZIDOO Z3000PRO Audio Player

LPS-Z3000PRO Linear Power Supply Module DIY Low Ripple Noise DC Power Board for ZIDOO Z3000PRO Audio Player

Description:
- This is a linear power supply upgrade module specially designed for the ZIDOO Z3000PRO 8K Blu ray HD player. Customers can DIY it themselves and completely replace the original switch power module without any damage.
- The LPS-Z3000PRO linear power supply is designed for the research and development of high-definition video and hifi audio equipment. With comprehensive optimization measures such as high current, low background noise, fast response, low power consumption, and high reliability, it provides high-quality purification power for HiFi audio-video equipment, synchronously improving the quality of images and sound. It has very low internal resistance and strong current driving power, as well as powerful high transient, strong ripple suppression ability, and the ability to handle current freely, ensuring the stability of audio and video by meeting the pulse current requirements of audio devices at every moment.

Advantages:
- The LPS-Z3000PRO adopts for LT high-end linear voltage regulator chip LT3042+PNP current expansion scheme, with a uV noise voltage that is 2-3 levels lower than that of LM317 LM78XX and other voltage regulators. The effect is very good, which can make the ZIDOO Z3000-PRO achieve a dark background. By significantly reducing the noise of the power supply, the music background can be made quieter, the details more rich, and the dynamic and density of the sound can be significantly improved.
- It can reduce the power interference of the original switch power supply to other devices in the same system.
- Compared to switch mode power supplies, this linear power supply specifically designed for the ZIDOO Z3000PRO uses more HiFi materials and operates more stably.
- The noise reduction level has reached a new level: according to the load 1A ripple test data, the ripple of the original ZIDOO switching power supply was 5080uV. After upgrading to this HiFi linear power supply, the ripple has been reduced to within 200uV, resulting in a purer and more stable power supply.

Specification:
- Input voltage: AC 220V- 240V (AC 110V - 120V is optional)
- Output voltage and current: DC12V at 3A
- Ripple noise: < 4uV for no-load; < 200uV for 1A load
- Product size: 145 x 44 x 90mm
- Net weight: 790g

Package Included:
- 1 x Linear Power Supply Module
- 1 x Accessory Pack

Note:
- The ZIDOO Z3000PRO player is not included.
