LS125 UV Light Meter UV Light Tester For VU Detection + UVC-X0 UV Sensor UV Probe 230-280NM

LS125 UV Light Meter UV Light Tester For VU Detection + UVC-X0 UV Sensor UV Probe 230-280NM

LS125 UV Light Tester:
Introduction:

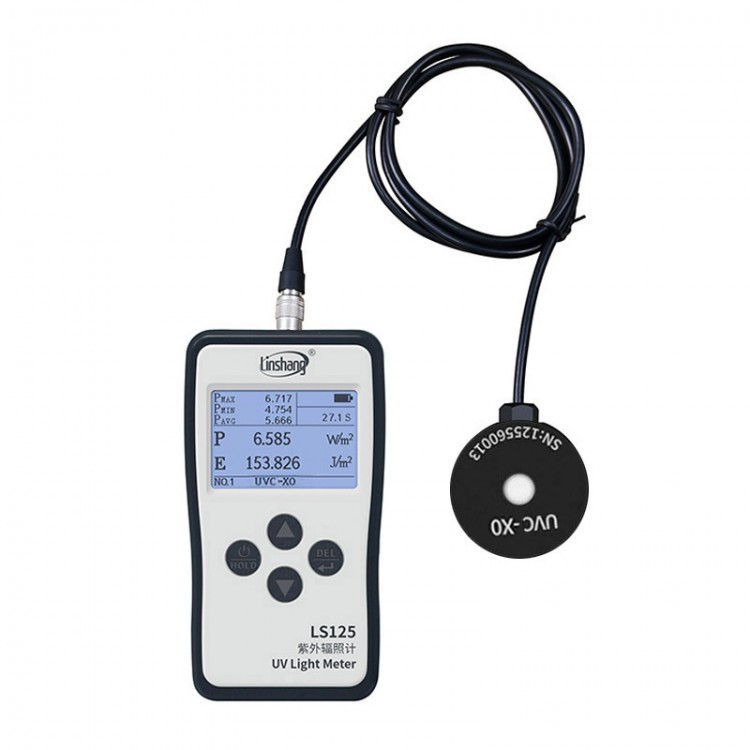

LS125 is a smart host that can support 9 different probes. It can intelligently identify different probes. This host is connected to the probe through an aviation plug. The main function of the host is to display the test data. The host equipped with the probe can be used for ultraviolet intensity and energy detection. When using the host, you need to buy the corresponding probe to use with it according to the test needs.

Parameters:
- Item name: LS125 UV Light Meter
- Product Weight: About 194g
- Dimension: 148mm x 76mm x 26mm (L*W*T)
- Display: 240*160 dot matrix LCD
- Probe connection: Push pull (Snap-in style), Aviation socket


Characteristics:
1. Multi-probe UV light meter. The host and probe are linked by aviation plugs. One host can intelligently match 9 different UV probes to meet different test needs.
2. Digital probe: adopt advanced digital probe technology, the probe is not easy to be interfered and provides excellent measurement accuracy.
3. The instrument can intelligently identify the probe model and the probe will adapt the display interface automatically.
4. A variety of units are available: The instrument can provide different unit selections based on the identified probe model. After connecting the probe, you can choose the appropriate unit in the setting mode.
5. Abundant data statistics function: real-time power value, maximum value, minimum value, average value, measurement time, energy value can be displayed at the same time. (You can also choose not to display the energy value in the setting mode)

6. Data recording: 9 sets of measurement data can be saved. During the measurement, press the “HOLD” to lock the maximum value and the current value during the measurement at the same time. The data will be saved even after the power is turned off. (Except when the battery is removed)
7. Ultra-low power consumption: The UV measurement device will automatically shut down after 10 minutes without any operation, which can avoid wasting power and prolong the service life of the instrument.

Product Qualifications and Compliant Standards:


FAQ about LS125 Multi-probe UV Light Meter Host:
Q1: Can the test data of LS125 UV light meter be exported to a computer or can it connect to a mobile APP?
No, the test data of LS125 UV light meter can only be read on the display screen of the host. If you need to export the data, you can learn about our UV energy meter (measuring UVA band) and UV light meter LS126C (measuring 254nm UVC germicidal lamp).

Q2: Can I get a 1-meter test hook if I buy a LS125 UV light meter?
The 1-meter hook is not a standard accessory for LS125 UV light meter, but you can purchase this accessory separately.

UVC-X0 Probe:
- Band range: UVC
- Spectral response: 230nm-280nm (λp=254nm)
- Applicable industry: 254nm high-power UV germicidal mercury lamp intensity and energy test
- Waterproof depth: none
- Probe size: 46mm x 16.5mm (diameter x thickness)
- Power measurement range: 0-200000μW/cm²
- Power resolution: 0.1μW/cm²
- Energy measurement range: 0-9999999μJ/cm²
- Recording time: 0-99999S
- Measurement accuracy: ±10%
- Sampling speed: 6 times/sec
- Optional units: μW/cm² (default), mW/cm², W/m²
- Test hole diameter: 10mm

Package Included:
- 1 x LS125 UV Light Meter
- 1 x UVC-X0 Probe

Note:
- 4pcs AAA alkaline batteries are recommended. Batteries are not included.
