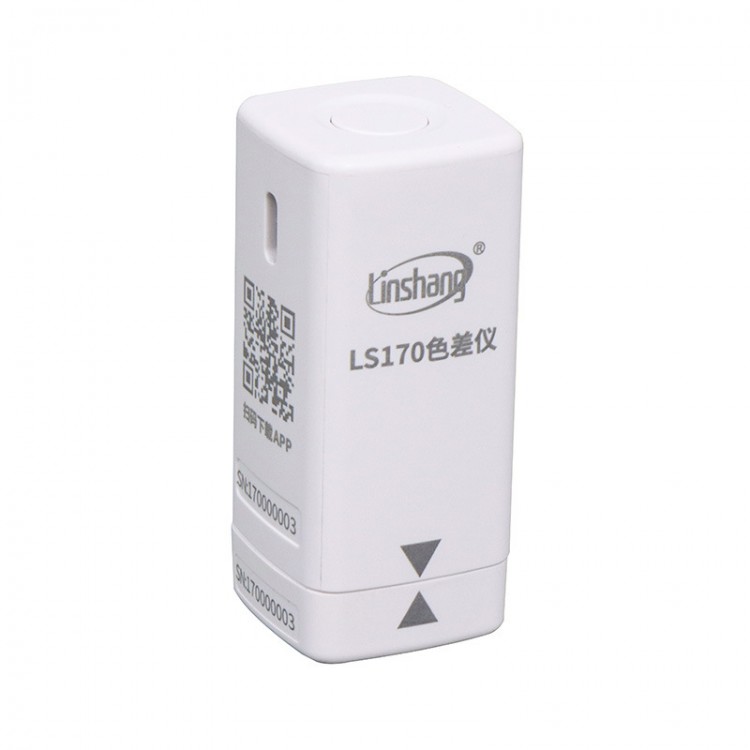

LS170 45/0 Handheld Portable Colorimeter w/ Cellphone APP For Ordinary Printing Surface Coating Film

LS170 45/0 Handheld Portable Colorimeter w/ Cellphone APP For Ordinary Printing Surface Coating Film


LS170 Colorimeter Introduction:
LS170 portable App smart colorimeter is designed to provide users color measurement and stable color comparisons for materials and products wherever color control is important. LS170 colorimeter is an exquisite and portable color difference measurement tool, this portable colorimeter is widely used in paint, test paper printing, decorations, leather and cotton, textile printing, plastics and other industries. LS170 portable colorimeter has Bluetooth function and it need to be used with the matching mobile APP. It has many color libraries such as for Pantone. After connecting to the mobile phone APP via Bluetooth, the meter can quickly measure the color and make color comparisons using a digital method. After quickly matching the color in the color library, you can share the colors to your friends.



LS170 Colorimeter Application:

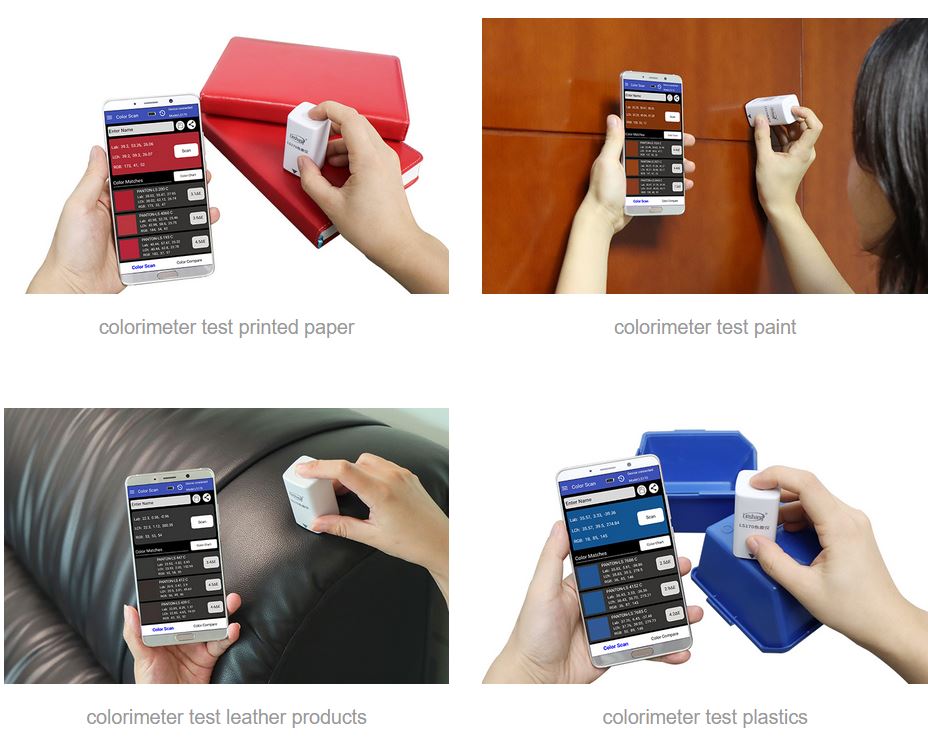

As a portable colorimeter, LS170 is widely used in car paint spraying, test paper printing, leather fabrics, plastic metal, textile and clothing, hardware, furniture industry, plastics, rubber and other fields. Below are some pictures of different materials measured by the LS170 colorimeter.

LS170 Colorimeter Characteristics:

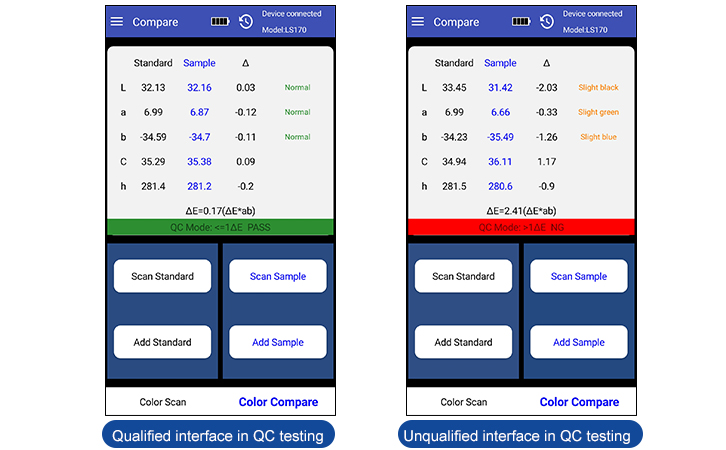

1. Achieve stable color quality using QC testing function when making color comparisons, after customizing the color difference threshold (tolerance value), it can automatically judge whether the color difference is qualified. The color cast direction is also displayed in the right of the ΔE value.


2. Multiple standard color libraries are stored in the mobile APP; the small colorimeter has fast measurement speed and can quickly match the color close to it. The accuracy rate is as high as 90%, heavy color cards are unnecessary.
3. A large amount of color can be stored in mobile APP and make color measurement anytime and anywhere. Before measuring the color, we can select the color chart we need first.
4. Import and export color data via software for QQ, WeChat, email and others.

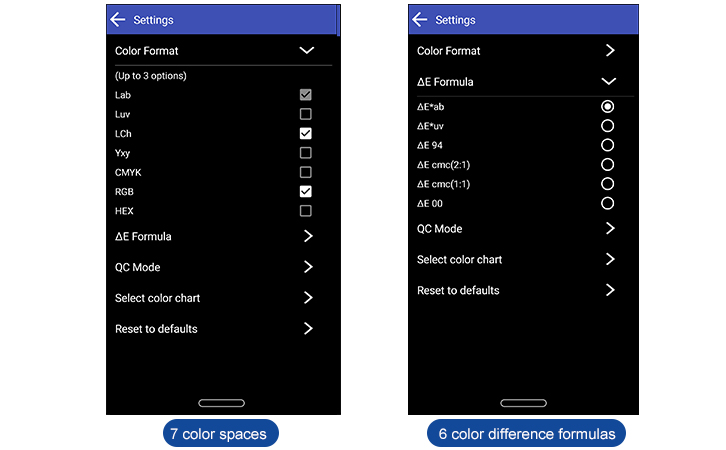

5. LS170 portable colorimeter has 7 color spaces and 6 color difference formulas to meet the needs of different industries.

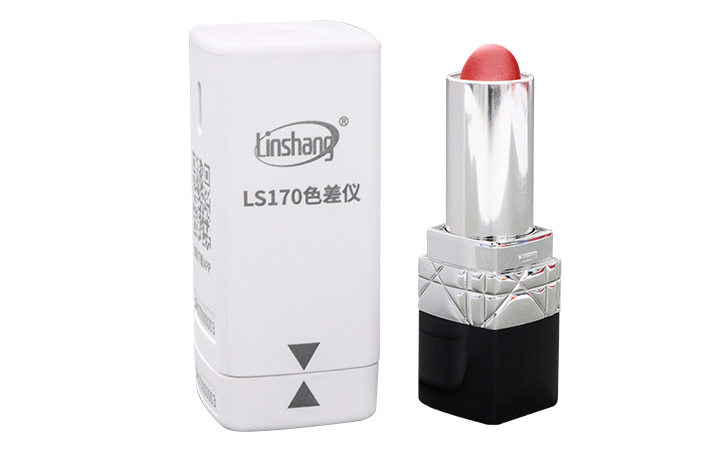

6. Small as lipstick and it is easy to carry.


7. Support Chinese and English.
8. The built-in lithium battery makes it safer and more convenient to use. It can continuously measure 10,000 times under full power.

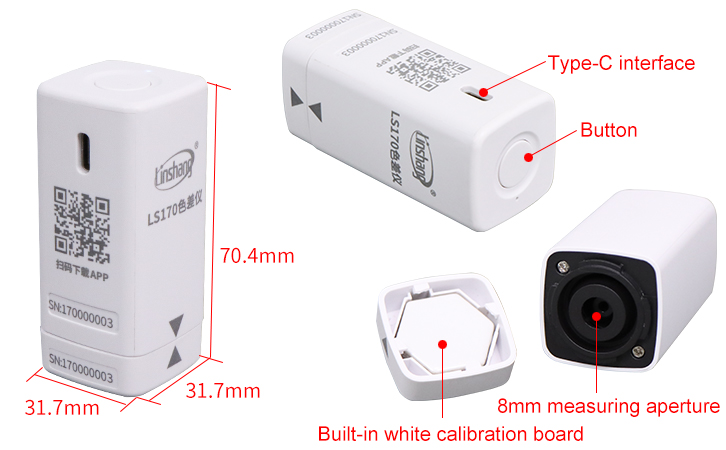

9. Simple white board calibration and the built-in compensation light path ensures stable measurement data.
10. The color of standard samples can be added to mobile App.
11. Focus on color measurement and color difference identification, with repeatability ΔE*ab not higher than 0.03.
12. The colorimeter is stable to ensure stable measurement data.

Product Qualification and Standards:
LS170 colorimeter meets the following standards:
* GBT 3978-2008 Standard illuminants and geometric conditions
* GBT 3979-2008 Methods for the measurement of object color
* GBT 7921-2008 Uniform color space and color difference formula
* GBT 11186.1-1989 Methods for measuring the color of paint films-Part 1: Principles
* GBT 11186.2-1989 Methods for measuring the color of paint films-Part 2: Color measurement
* GBT 11186.3-1989 Methods for measuring the color of paint films-Part 3: Calculation of color differences
* JJG 595-2002 Colorimeters and Color Difference Meters

Package Included:
- 1 x Set of Colorimeter

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you!
