LS238 3500μm Split-Type Coating Thickness Gauge Rechargeable Paint Thickness Tester Rotating Screen

LS238 3500μm Split-Type Coating Thickness Gauge Rechargeable Paint Thickness Tester Rotating Screen

Advantages:
* LS238 split-type car paint thickness gauge
* Ideal for measuring paint thickness in narrow areas of the vehicle
* Professionally identifies iron powder putty
* Three-color LCD backlight and three-color indicator lights
* Can identify iron-galvanized car bodies
* Type-C charging interface with ultra-low power consumption

Description:

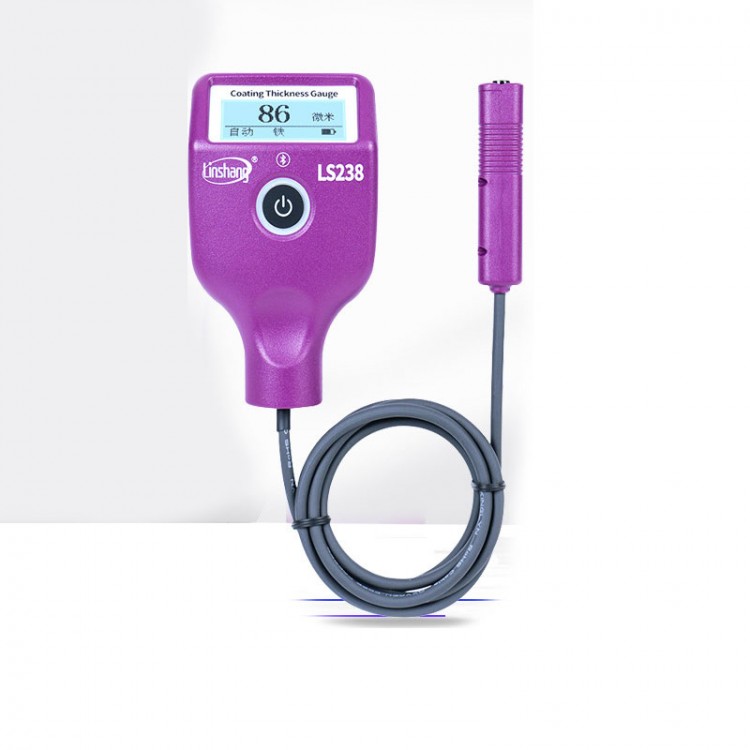

The LS238 Paint Thickness Tester features a split-type small probe design, making it particularly suitable for measuring paint thickness in narrow areas of the vehicle. The instrument can measure paint thickness on iron and aluminum substrates. And it intelligently identifies non-metallic bodies, iron powder putty layers, and iron-galvanized layers, providing a clear view of the car's condition.

The LS238 uses three-color backlighting and three-color indicator lights, with different colors on the screen and buttons corresponding to various paint thicknesses, making it easy to understand the paint thickness. The device is powered by a rechargeable lithium battery with ultra-low power consumption. Additionally, the instrument has Bluetooth functionality and is equipped with a mini program and app, allowing for the export and sharing of vehicle inspection reports.

Features:
Split-Type Small Probe Design
* The LS238 features a split-type small probe design, making it easy to measure paint thickness in narrow areas such as the engine compartment or the A, B, and C pillars, as well as other hard-to-reach spots. This design makes reading the measurements more convenient.

Intelligent Identification of Iron Powder Putty
* The instrument automatically identifies iron powder putty. The screen backlight and button indicator light turn red, accompanied by two beeping sounds, making it easy to detect the presence of iron powder putty.

Three-Color Display Makes It Easy to Read Paint Thickness
* The instrument displays three colors on the screen backlight and button indicator light based on the paint thickness:
1. When the paint thickness is less than 170μm, the backlight is white, and the indicator light shows green.
2. When the paint thickness is between 170μm and 350μm, the backlight is yellow, and the yellow indicator light flashes twice.
3. When the paint thickness is greater than 350μm or iron powder putty is detected, the backlight is red, and the red indicator light flashes twice.

Multi-Purpose, Smart Identification of Car Body Materials
* The instrument can quickly detect iron, aluminum, iron-galvanized, and non-metallic car bodies, offering multi-purpose functionality with easy identification of car body materials.

Digital Probe for More Precise Measurements
* Using advanced digital probe technology, digital signal processing is handled directly in the probe. The probe is less susceptible to interference and provides excellent testing accuracy, ensuring good repeatability throughout the measurement process and stable data.

Continuous Measurement Mode
* By holding the button for two seconds, the instrument enters continuous measurement mode, allowing you to check the uniformity of the paint thickness. After measurement, the maximum and minimum values are displayed.

Phone Number Binding to Prevent Loss
* Through the mini program's phone number binding feature, the instrument will display your phone number when powered on, preventing the device from being lost.

Rechargeable Lithium Battery and Ultra-Low Power Consumption
* The device is powered by a rechargeable lithium battery and charges through a type-c interface. With ultra-low power consumption, a single charge can last for more than 50 hours of continuous use.

Fast Measurement Speed, No Waiting
* The instrument features an ultra-fast response speed, completing a measurement in less than 0.5 seconds.

Ruby Probe: Hard and Wear-Resistant
* The instrument uses a hard, wear-resistant ruby probe, reducing measurement errors caused by wear and extending the instrument's lifespan.

WeChat Mini Program and App for Generating Vehicle Inspection Reports
* With Bluetooth data transmission, the device connects to the WeChat mini program or mobile app for measurements. It can generate test reports from the data and allows you to save or share the reports.

More Features
* No calibration required, only zeroing needed. One-button operation for simplicity.
* Switch between μm and mil unit measurements.

Supported Mobile Systems
* The app supports operating systems for Android 6.0 and iOS 12.0 or higher.

Packing List:
* 1 x LS238 Paint Thickness Gauge

Packaging Details:
* Weight: 0.55kg
