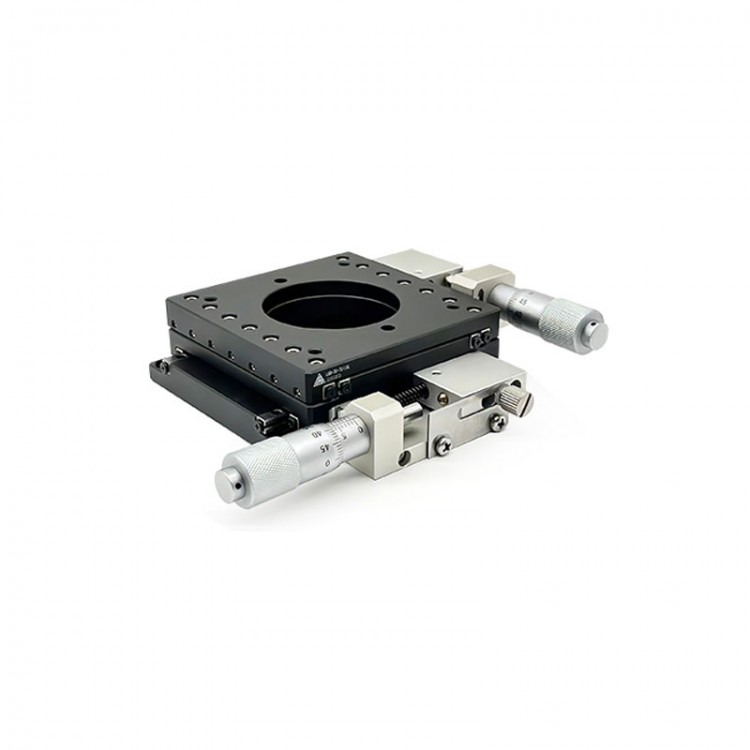

LSD-ZK-7013R 70*70mm Hollow XY Table Sliding Table 13mm Travel (w/ Micrometer Heads on the Right)
Features:
- It can be used to replace the products for Suruga Seiki, Sigma, Misumi and Yiheda.
- Hollow XY table: It is driven by micrometer heads, with high precision.
- Product size: stage size is 70*70mm and the hollow diameter is 40mm.
- Quality assurance: 3-year warranty is provided.
-
Premium material: The main body of the sliding table is made of
aluminum alloy. Its high density and light weight make it suitable for
built-in installations.
- Convenient operation: Small size makes it
easy to install. It boasts low noise, high mechanical strength and long
lifespan, enabling high operation frequency.
- Internal structure: It
is composed of multiple high-precision parts. Thanks to its high
precision and a compact structure, it is suitable for light loads,
enabling easy adjustment.
- Platform rail: Cross roller guide is used to achieve high-precision translational sliding, and the operation is smooth.
-
Stage: The body is made of high-strength 6061-T6 aluminum alloy with a
black anodized finish. It is durable and has excellent corrosion
resistance.
- Micrometer heads: A high-quality alloy probe is used,
and the laser reproduction scale is clear and wear-resistant. The
minimum scale is 0.01mm.
- Locking screws and limiting: Made of
high-quality stainless steel, the screws have good corrosion resistance
and high hardness.
- Fine adjustment & travel: After loosening
the locking screws, turn the micrometer heads to move the platform to
the approximate position and then tighten the screws. Fine adjustment
can be done by tightening the locking screws. The travel is ±6.5mm. One
side of the platform moves 6.5mm, the other side also moves ±6.5mm, and
the total travel is 13mm.
- Usage scenarios: It is widely used
because of its precision and stable performance. Can be applied to
mobile correction, laser displacement, detection adjustments, equipment
fixtures, adjustment of optical fiber core, and optical calibration.
- Applicable industries: widely used in electronics, electrical machinery, automation, science and medical and the like.
Precautions:
-
It is composed of high-precision parts. Please avoid using this product
in the following environments: extremely high temperature, extremely
low temperature, severe temperature fluctuations or direct sunlight,
high humidity, high dust, high vibration, high impact, easy fogging,
etc.
- The use environment should be stable: 10~50°C. Recommended operating temperature: 22±5°C.
Package Included:
- 1 x Hollow XY Table
Packaging Details:
- G.W.: 0.6kg
