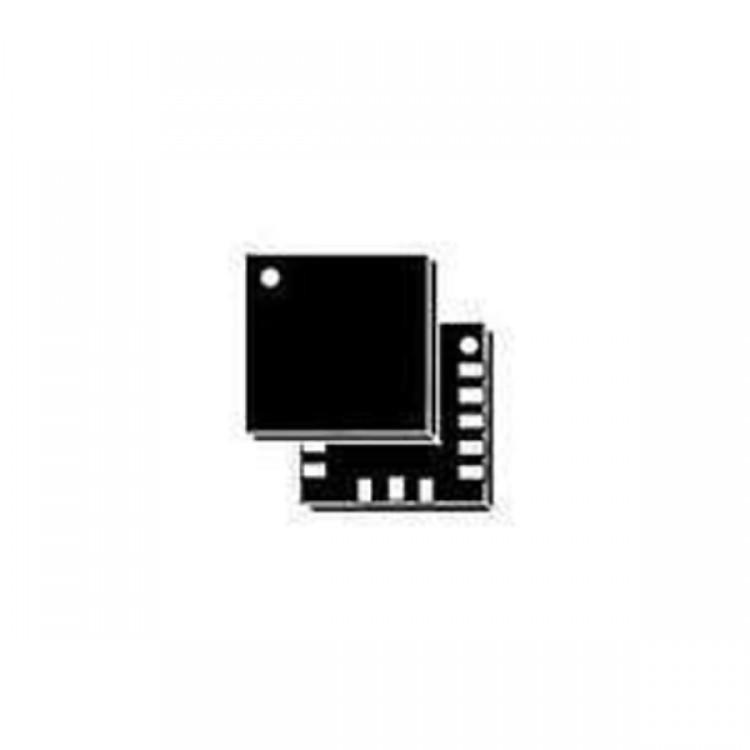

LSM303DLH 3-axis Accelerometer and 3-axis Magnetometer
Features
- Analog supply voltage: 2.5 V to 3.3 V
- Digital supply voltage IOs: 1.8 V
- Power-down mode
- 3 magnetic field channels and 3 acceleration channels
- ±1.3 to ±8,1 gauss magnetic field full-scale
- ±2 g/±4 g/±8 g dynamically selectable fullscale
- 16-bit data out
- I2C serial interface
- 2 independent programmable interrupt generators for free-fall and motion detection
- Embedded self-test
- Accelerometer sleep-to-wakeup function
- 6D orientation detection
- ECOPACK® RoHS and “Green” compliant (see Section 10)
Applications
- Compensated compassing
- Map rotation
- Position detection
- Motion-activated functions
- Free-fall detection
- Intelligent power-saving for handheld devices
- Display orientation
- Gaming and virtual reality input devices
- Impact recognition and logging
- Vibration monitoring and compensation
