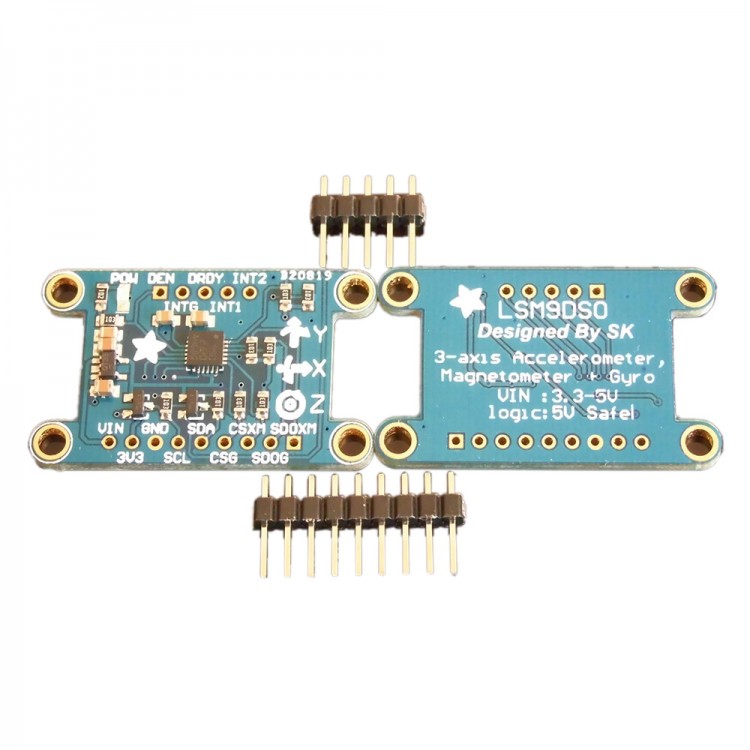

• LSM9DS0 IMU 9DOF Sensors High-Precision Integrated 9-Axis Altitude Sensor Module SPI I2C for Arduino DIY

LSM9DS0 IMU 9DOF Sensors High-Precision Integrated 9-Axis Altitude Sensor Module SPI I2C for Arduino DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$26.66
  • Price in reward points: 267 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.13 $25.59 $24.79 $23.73 Contact US
Quantity:

LSM9DS0 IMU 9DOF Sensor High-Precision Integrated 9-Axis Altitude Sensor Module SPI I2C for Arduino DIY

Description:

- 3-axis accelerometer to tell which direction is downward toward the earth
- 3-axis gyroscope to sense the magnetic force
- 3-axis magnetometer to measure the rotation and torsion
- 9 degrees of freedom (9dof) from a single IC
- Power supply light indicator
- Two I2C and SPI interface

Features:
- 3 acceleration channels, 3 angular rate channels, 3 magnetic field channels
- ±2/±4/±6/±8/±16 g linear acceleration full scale
- ±2/±4/±8/±12 gauss magnetic full scale
- ±245/±500/±2000 dps angular rate full scale
- 16-bit data output
- SPI / I2C serial interfaces
- Analog supply voltage 3.3V to 5V
- Programmable interrupt generators
- Embedded self-test
- Embedded temperature sensor
- Embedded FIFO

Package included:
- 1 x LSM9DS0 IMU Sensor
