LT130 Liquid Filling Machine Automatic Quantitative Numerical Control 220V for Drinks Wine

LT130 Liquid Filling Machine Automatic Quantitative Numerical Control 220V for Drinks Wine

Description:

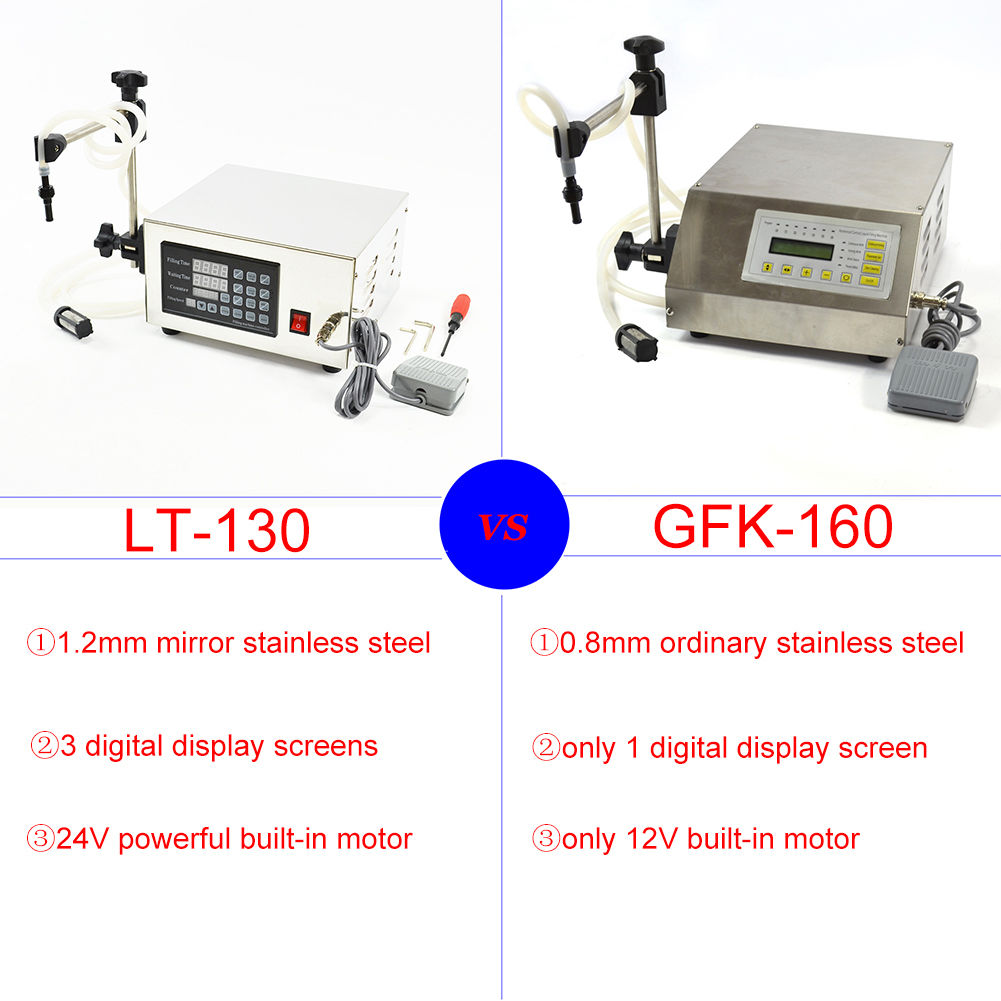

- LT-130 is the updated version of GFK-160,easier to operate;
- Automatic filling and manual filling freely switch;
- Discharging drip tight function;
- Power cut memory function;

Operating Instructions

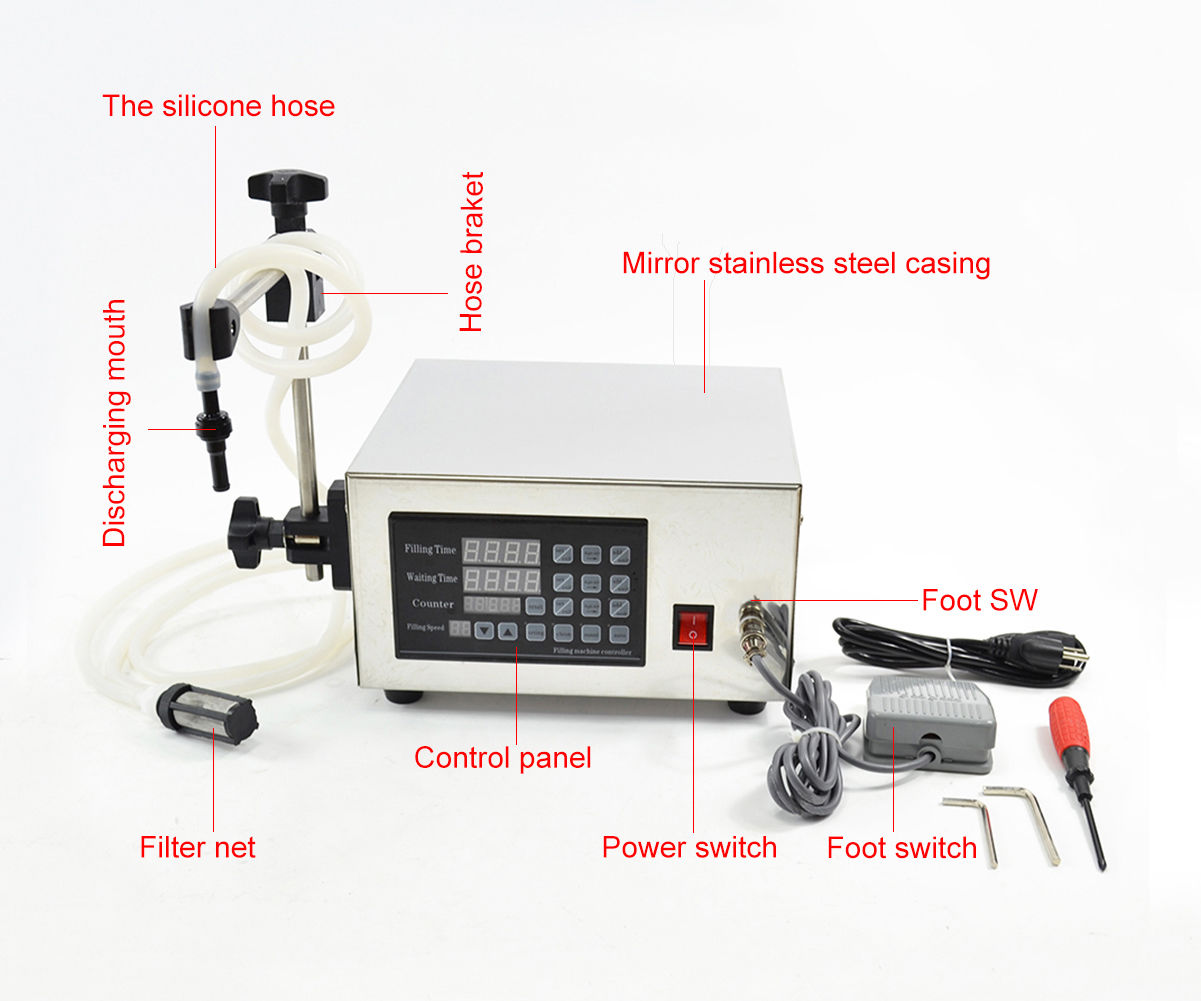

1.Install the stents refer to the above picture;

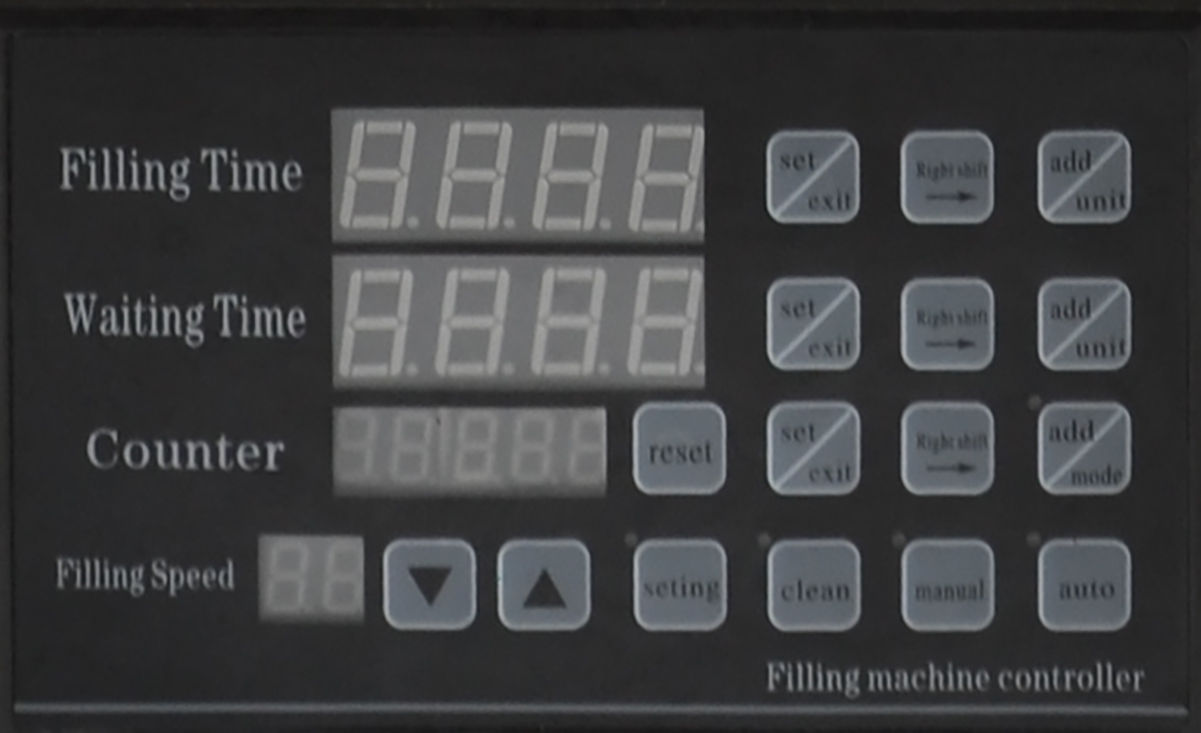

2.Function:
  A:"filling time" adjust the pump working time;control the filling range.
  B:"waiting time" it's the time gap between the first filling and the second;it's only used for the filler is on Auto  set.
  C:" counter" it will counter how many times it has filled.
  D:"filling speed" adjust the filling speed.
  E:"setting" press this button when the filler is on;then the filler will fill;fill your bottles until it is full/or to the volume you need;then press this button again so that the filler will remember the filling range; the filling range is setted;
  F:"manual" switch to manual model and press the button"fixed point" and it will fill as long as you press the button.
  G:"auto" switch to auto model.
3.Process:
   Press the red power button on;put your bottle under the filling nozzle;press"setting" to start filling;fill your bottle until the volume you need;press again the "setting"button;the filler will remember this filling range;then choose the"auto"or"manual"model to start working.
4.Attentions:
   The guarantee for this filler is one year; the pump of this filler is diaphragm pump which is vulnerable part;the pump should be changed when you find the filling flow rate become very slow,contact us to buy new pump.

Specification
- Model: LT-130
- Type: liqiud filling machine
- Condition: New
- Driven Type: Electric
- Filling mode: Automatic or manual switchable
- Shell material: Mirror stainless steel
- Frequency: 50Hz
- Voltage:  220V
- Power: 50W
- Single pump Max. flow rate: 3.2L/min
- Filling range: 5ml~3500ml
- Repetitive error: <0.5%
- Machine Size: 280*250*160mm
- Machine Weight: 5kg

Package Contents:
- 1 x Liquid Filling Machine
